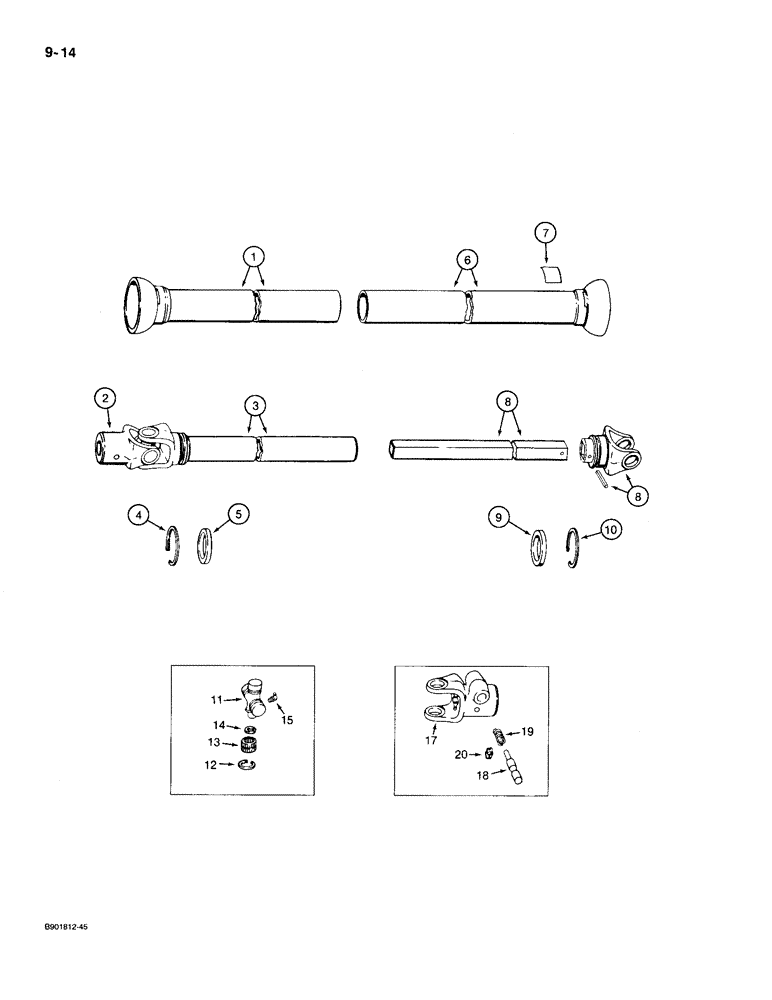

Запчасти Case IH 1300 (9-14) - POWER DRIVE EQUIPMENT, 1300 MOWER, SERIAL NUMBER 031231 THROUGH 031904 (09) - CHASSIS/ATTACHMENTS

ZA521047

JOINT

ASSEMBLY - shielded, single universal, implement end, no longer available, order 489529R91 implement end and 464118R91 tractor end joint assemblies shown on page 9-13

1шт.

1

ZA521051

SHIELD

- outer

1шт.

2

462477R1

YOKE

- with keyway

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - drive, with yoke

1шт.

4

597559R1

RETAINER

RING - retaining, shield

1шт.

5

1337164C1

BEARING

- nylon, shield

1шт.

ZA521047

JOINT

ASSEMBLY - shielded, single universal, tractor end

1шт.

6

ZA521069

SHIELD

- outer

1шт.

7

96335C1

PRODUCT GRAPHIC

DECAL - Caution, shield, shown on page 9-77, item 2

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - drive, with yoke and pin

1шт.

9

1337164C1

BEARING

- nylon, shield

1шт.

10

597559R1

RETAINER

RING - retaining, shield

1шт.

150635R92

SPIDER

KIT - universal joint

2шт.

11

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

12

357426R1

RING

- retaining

4шт.

13

661678R91

BEARING

RACE - bearing

4шт.

14

357425R1

CORK SEAL

- oil, cork

4шт.

15

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

16

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , Universal joint, not shown Slotted, Headless, 1/8" NPT

2шт.

462492R91

YOKE

ASSEMBLY - quick detachable

1шт.

17

NSS

NOT SOLD SEPARAT

YOKE - 1-3/8 inch spline

1шт.

455346R21

PIN

ASSEMBLY - lock

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - lock

1шт.

19

455347R1

VALVE SPRING

SPRING - compression

1шт.

20

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- pin

1шт.
