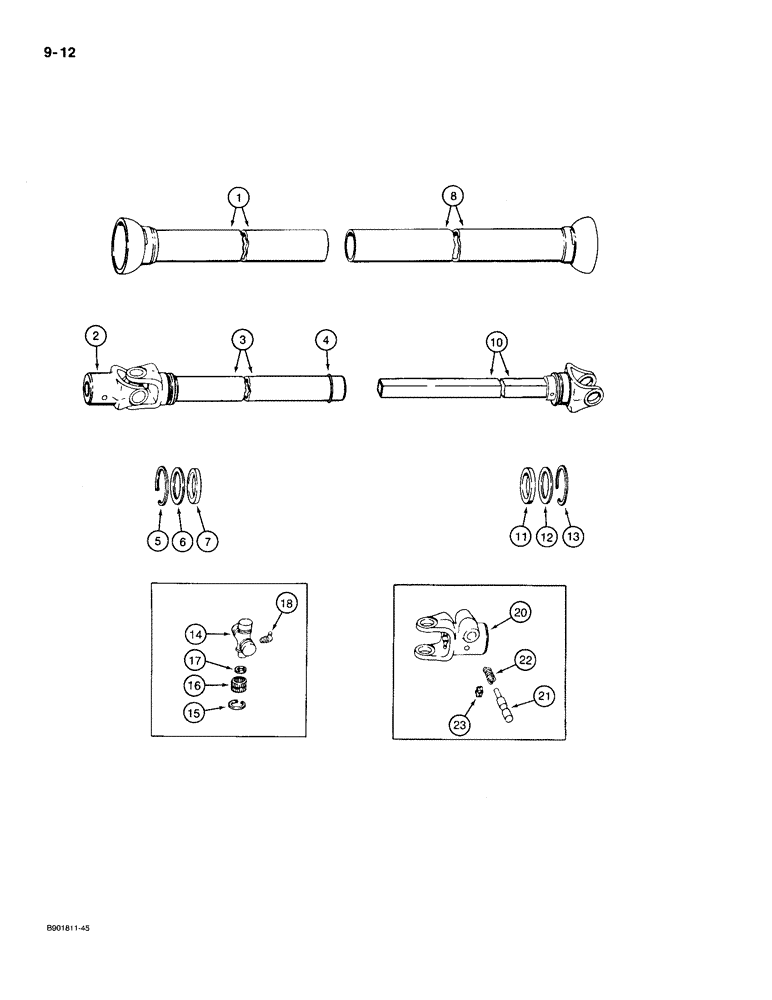

Запчасти Case IH 1300 (9-12) - POWER DRIVE EQUIPMENT, 1300 MOWER, PRIOR TO SERIAL NUMBER 031230 (09) - CHASSIS/ATTACHMENTS

489529R91

JOINT

ASSEMBLY - shielded, single universal, implement end

1шт.

1

489531R1

SHIELD

- outer

1шт.

2

462477R1

YOKE

- with keyway

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - drive, with yoke

1шт.

4

613439R1

BRACKET

BEARING - support, shield

1шт.

5

613436R1

CLAMP

RING - retaining, shield

1шт.

6

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust

1шт.

7

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- nylon

1шт.

464118R91

JOINT

ASSEMBLY - shielded, single universal, tractor end

1шт.

8

464122R1

SHIELD

- outer

1шт.

9

96335C1

PRODUCT GRAPHIC

DECAL - Caution, shield, shown on page 9-77, item 2

1шт.

10

464120R1

YOKE

SHAFT - drive, with yoke

1шт.

11

463014R1

RING

BEARING - nylon

1шт.

12

463015R1

THRUST WASHER

- thrust

1шт.

13

463016R1

RING

- retaining, shield

1шт.

150635R92

SPIDER

KIT - universal joint

2шт.

14

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

15

357426R1

RING

- retaining

4шт.

16

661678R91

BEARING

RACE - bearing

4шт.

17

357425R1

CORK SEAL

- oil, cork

4шт.

18

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

19

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , Universal joint, not shown Slotted, Headless, 1/8" NPT

2шт.

462492R91

YOKE

ASSEMBLY - quick detachable

1шт.

20

NSS

NOT SOLD SEPARAT

YOKE - 1-3/8 inch spline

1шт.

455346R21

PIN

ASSEMBLY - lock

1шт.

21

NSS

NOT SOLD SEPARAT

PIN - lock

1шт.

22

455347R1

VALVE SPRING

SPRING - pin

1шт.

23

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- pin

1шт.
