Запчасти Case IH 1300 (9-10) - POWER DRIVE EQUIPMENT WITH HAY CONDITIONER, 1300 MODEL ONLY (09) - CHASSIS/ATTACHMENTS

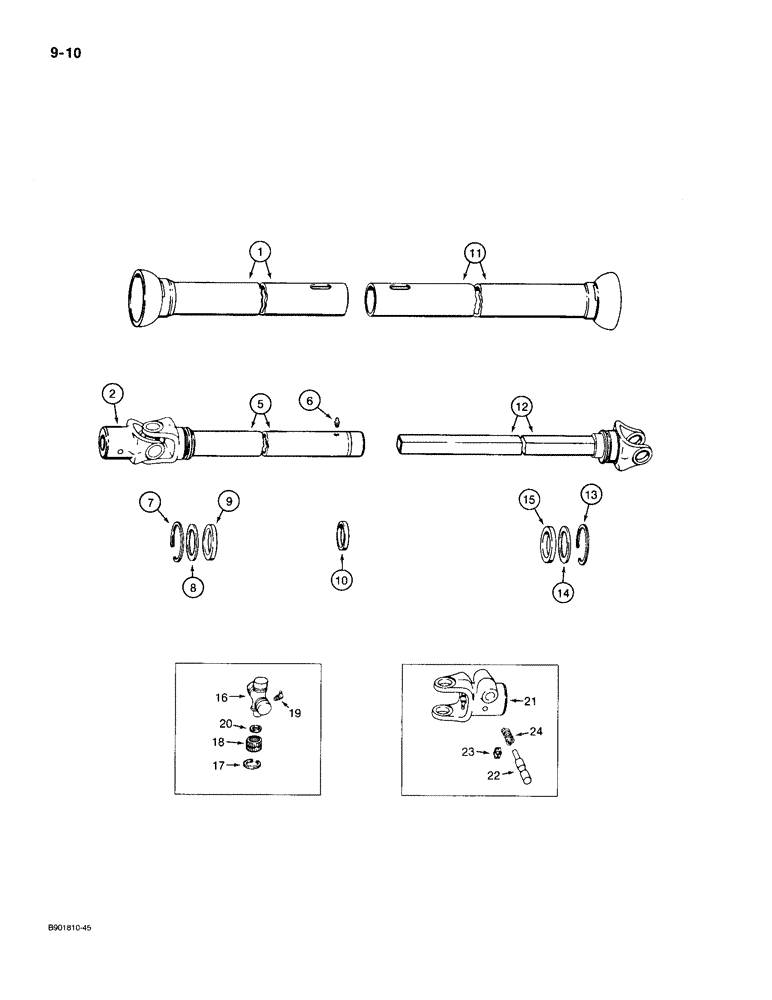

Схема запчастей Case IH 1300 - (9-10) - POWER DRIVE EQUIPMENT WITH HAY CONDITIONER, 1300 MODEL ONLY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

491368R91

JOINT ASSEMBLY - shielded, rear half of double universal, implement end

1шт.

1

491369R1

SHIELD - inner

1шт.

2

462845R1

YOKE

- spline, rear

1шт.

3

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN - drilled standard head, 5/16 x 2-1/4 inch, rear spline yoke, not shown

1шт.

4

432-816

COTTER PIN,1/8" x 1"

PIN SPLIT (COTTER), , rear spline yoke, not shown 1/8" x 1"

1шт.

5

470265R1

TUBE

SHAFT - drive, with yoke

1шт.

6

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING - grease, straight, 1/4-28 NF

1шт.

7

613436R1

CLAMP

RING - retaining, shield

1шт.

8

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust

1шт.

9

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- shield, nylon

1шт.

10

613439R1

BRACKET

SPACER - nylon support

1шт.

470261R92

JOINT

ASSEMBLY - shielded, front half of double universal, tractor end

1шт.

11

470264R2

SHIELD

- outer

1шт.

12

470263R2

YOKE

SHAFT - drive, with yoke

1шт.

13

613436R1

CLAMP

RING - shield retaining

1шт.

14

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust

1шт.

15

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- shield, nylon

1шт.

659262R91

U-JOINT SPIDER

KIT - universal joint, journal and bearing, Rockwell Standard, no longer available, order 669564R91 shown below

2шт.

669564R91

CROSS

KIT - universal joint, journal and bearing

2шт.

16

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

17

661657R1

RING

- retaining

4шт.

18

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

RACE - bearing, 659262R91 kit

4шт.

18

669565R91

CAP

RACE - bearing, 669564R91 kit

4шт.

19

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

20

661656R1

SEAL - oil, cork, not included in 669564R91 kit

4шт.

480486R91

CROSS

KIT - universal joint, journal and bearing, Chain Belt

2шт.

16

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint

1шт.

17

606177R1

SNAP RING

RING - retaining

4шт.

18

480492R91

BEARING ASSY,0.8145" ID x 1.065" OD x 0.64"

RACE - bearing

4шт.

19

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

459463R91

YOKE

ASSEMBLY - quick detachable, 1-3/8 inch spline

1шт.

21

NSS

NOT SOLD SEPARAT

YOKE - quick detachable

1шт.

455346R21

PIN

ASSEMBLY - lock

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - lock

1шт.

23

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

- pin

1шт.

24

455347R1

VALVE SPRING

SPRING - pin

1шт.

Выбрано товаров: 36
