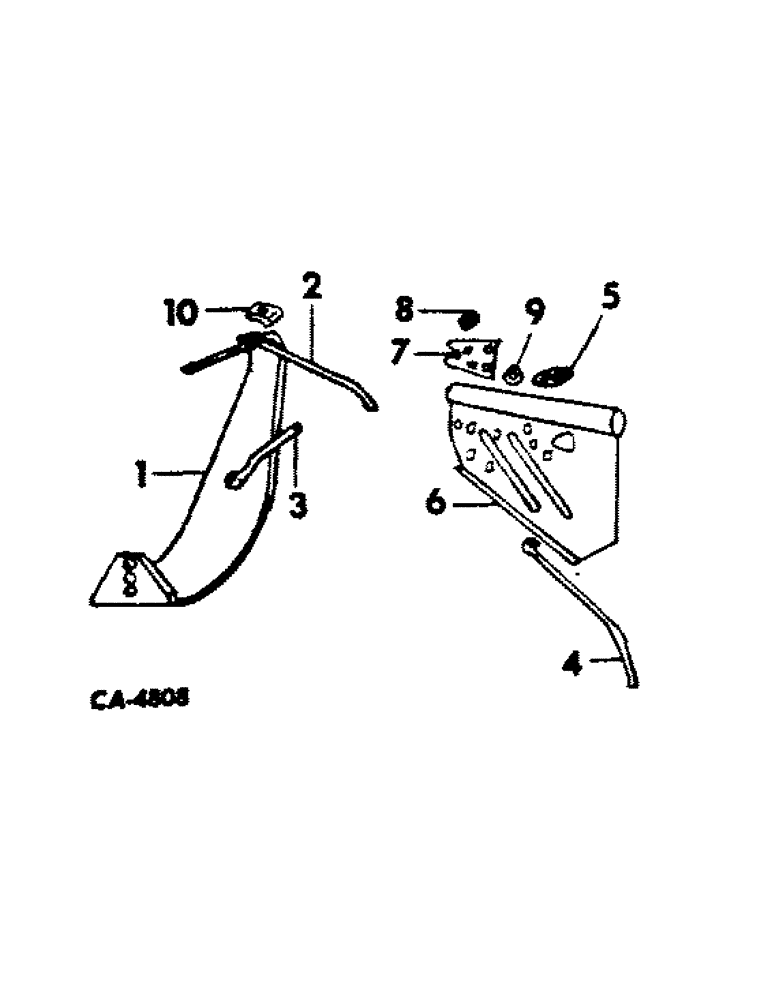

Запчасти Case IH 1200 (L-08) - INNER SHOE SOLE AND GRASS DEFLECTOR

1

458966R1

SOLE

inner shoe, divider type, for 1100 only

1шт.

1

462743R1

SOLE

inner shoe, stub type

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg

1шт.

460908

WASHER, 17/32 x 1-1/2 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

458967R1

ROD

inner shoe upper grass, for 1100 only

1шт.

2

462744R1

ROD

inner shoe upper grass, stub type

1шт.

3

461281R1

ROD

inner shoe lower grass

1шт.

4

489536R1

ROD

grass deflector

1шт.

143245R1

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 C-Z hex. lock

1шт.

5

489537R1

CLAMP

grass rod

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

489535R1

DEFLECTOR

grass

1шт.

7

489538R1

SUPPORT

grass deflector

1шт.

605449R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 C-Z hex. lock

4шт.

8

M1015

SPRING

grass rod tension

1шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z sq-hd mach

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

231-1448

NUT,1/2"-13, GB

1/2-13 znp nylon insert

1шт.

9

489486R1

STRIP

DAMPENER, grass rod

1шт.

10

461383R1

CLAMP

CLIP, grass rod

1шт.
