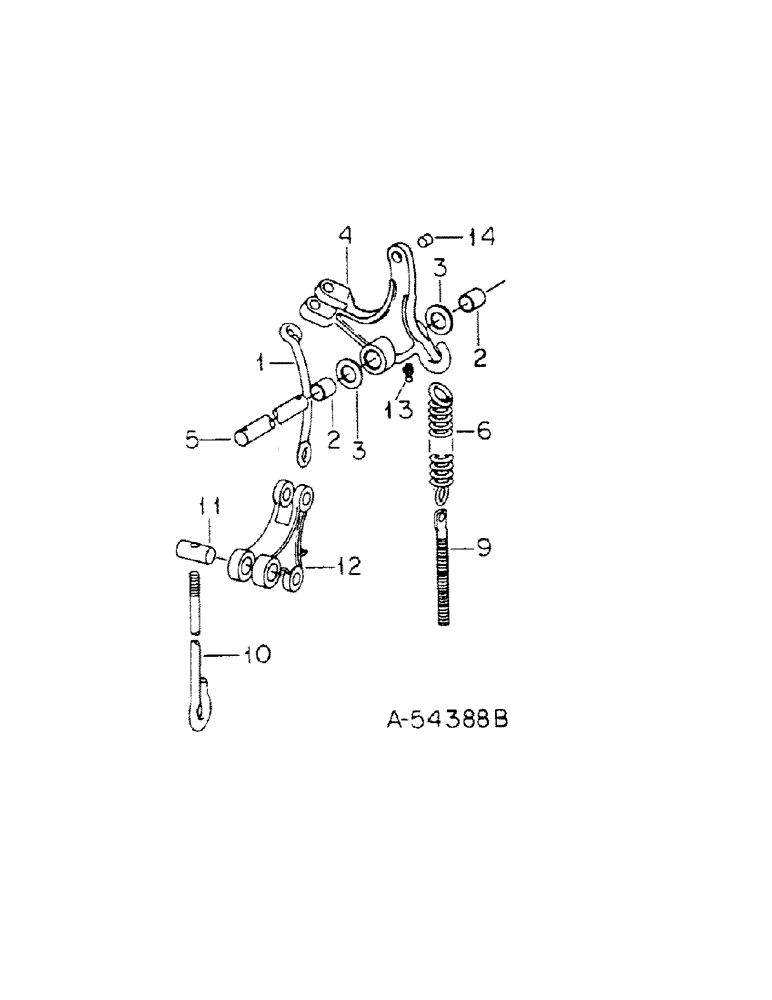

Запчасти Case IH 1200 (L-06) - BELLCRANK, GAG AND LIFT LEVER AND BALANCING SPRING

1

458912R2

ROD

bellcrank lift

1шт.

2

454154R1

BUSHING

bellcrank

2шт.

3

21214R1

WASHER

1-5/32 x 2 11 ga C-Z

2шт.

4

465245R11

LEVER

BELLCRANK W/BUSHINGS, 454154R1

1шт.

22093R1

PIN, 3/4 x 2-11/16 C-Z st-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

5

458911R1

PIN,28.57mm OD x 219.07mm L

SHAFT, bellcrank

1шт.

142535

GROOVED PIN,5/16" x 2", Type A

Pin, Grooved, 5/16" x 2", Type A

1шт.

22914R1

PIN,3/8" x 1 3/4"

Split (Cotter), 3/8" x 1 3/4"

1шт.

6

59323C1

SPRING

cutter bar balancing, 1/2 coils, replaces spring, MA22110 and plug, M1425 by also ordering bolt, 29324C1 and attaching hardware

1шт.

Ref #6 - Spring (1 11/16" O.D.) 08/06/96

1шт.

7

Not used this application

1шт.

8

Not used this application

1шт.

9

59324C1

BOLT,Eye, 1/2" - 13 x 4.8"

1/2 x 6 special sq-hd, replaces Q822, adjusting balancing spring

1шт.

1253645C1

SQUARE NUT

1/2-13 C-Z sq

2шт.

22191R1

WASHER

.531 x 1.750 x .164

1шт.

22265R1

WASHER

.531 x 1.250 x .027

1шт.

10

458915R1

BOLT

ROD, gag

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

11

458914R1

PIN

PIVOT, gag rod

1шт.

12

458913R1

LEVER

gag and lift

1шт.

21947R1

HEADED PIN,3/4" x 2 5/8"

PIN, 3/4 x 2-5/8 C-Z std-hd

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

14

465986R1

BUSHING

bellcrank

1шт.
