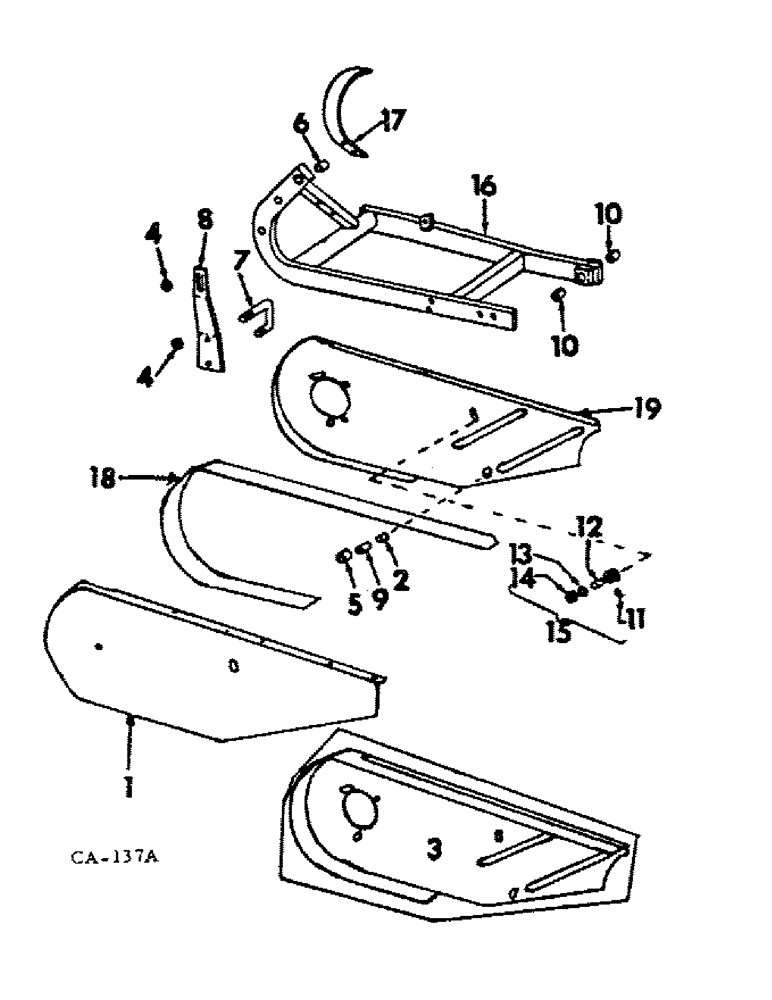

Запчасти Case IH 1200 (L-05) - CUTTER BAR SUPPORT HINGE COUPLING, IDLER PULLEY AND SHIELDS

1

57187C1

SHIELD

COVER W/PRODUCT GRAPHIC, ZAO15891, drive

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, 1/4 x 3/8 type 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

2

586329R1

SPACER,3/4" Tube x 13/16"

drive shield

1шт.

3

489637R91

SHIELD, drive, 1 piece

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

489486R1

STRIP

DAMPENER, drive shield

2шт.

5

489497R1

ROLLER

drive belt

1шт.

6

458901R1

BUSHING

gag & lift lever pivot

1шт.

7

489496R1

BOLT,1/2" - 13 x 4.9"

idler support U

1шт.

22042R1

WASHER

17/32 x 2 x 11 ga C-Z

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

22273R1

WASHER

17/32 x 2 x 22 ga C-Z

1шт.

632076R1

WASHER

17/32 x 1-3/4 x 11 ga

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

8

489501R2

SUPPORT

idler bracket

1шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2 x 3-1/2 C-Z hex-hd mach

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

22273R1

WASHER

17/32 x 2 x 22 ga C-Z

1шт.

22042R1

WASHER

17/32 x 2 x 11 ga C-Z

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

1шт.

9

489500R1

BUSHING

BEARING, roller bushing

1шт.

10

487050R1

BUSHING,31.83mm ID x 34.85mm OD x 28.45mm L

hinge pin

2шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tap lub

1шт.

12

464898R1

BUSHING

BEARING

1шт.

13

464900R1

THRUST WASHER

thrust

2шт.

14

464899R1

CUP WASHER

cupped

2шт.

15

464893R91

ASSEMBLY

IDLER ASSY, drive belt

1шт.

16

487055R11

SUPPORT

W/BUSHING, hinge coupling

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

20100R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

SCREW, 1/2 x 2-3/4 type 4 C-Z hex-hd cap

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2 x 2-1/4 C-Z hex-hd cap

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

17

487058R1

SUPPORT

cutter bar

1шт.

18

60776C92

SHEET

W/PRODUCT GRAPHIC, ZA014139, rim

1шт.

28559R1

BOLT,Short NK, 1/4"-20 x 1/2", G2

1/4 x 1/2 crg type 1

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

19

489487R1

SHIELD

ASSY, drive, 2 piece

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

398976R1

BRACKET

SOCKET, light bracket

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.
