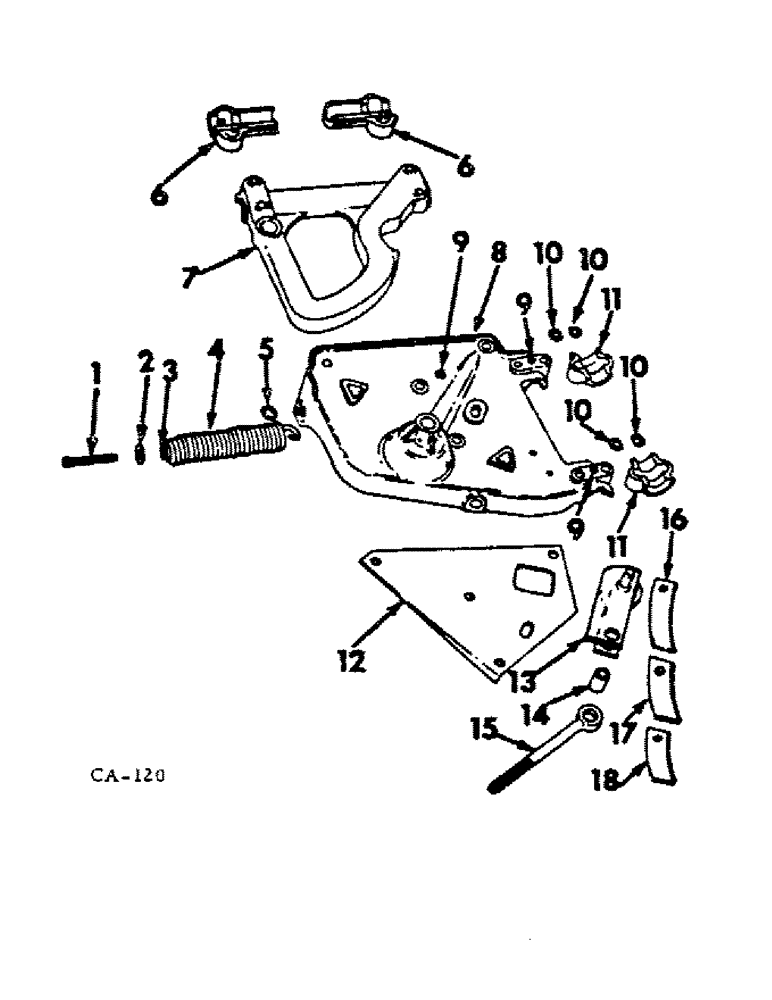

Запчасти Case IH 1200 (L-04) - PIVOT FRAME, BREAKAWAY ARM AND LATCH SUPPORT PLATE

1

570640R1

BOLT (SPREADER),Adj, Hex, 1/2" - 13 x 4", Full Thd

BOLT, 1/2 x 4 in. special mach, spring adjusting

1шт.

1253645C1

SQUARE NUT

1/2-13 C-Z sq

1шт.

22265R1

WASHER

17/32 x 1-1/4 x 22 ga C-Z

1шт.

2

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

3

M1425

PLUG

spring

1шт.

4

PO199A

SPRING

breakaway latch, 25 coils

1шт.

5

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

2шт.

6

489480R1

CAP

breakaway arm

2шт.

21722R1

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 5

SCREW, 5/8-11 x 5-1/4 C-Z hex-hd cap

4шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

4шт.

7

458891R2

ARM

breakaway

1шт.

pin that goes thru item #7 is 458911r1, pictured on 9-24 JJS 10-8-96 Q

1шт.

8

458888R2

FRAME

pivot

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 C-Z hex-hd mach

4шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

5шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

3шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

3шт.

10

458890R1

SHIM

pivot frame, or as required

32шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

SCREW, 5/8-11 x 4-1/4 hex-hd cap, 2 used w/hay conditioner, 4 used w/o hay conditioner, Course Threads

1шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 hex-hd cap, for hay conditioner only, Course Threads

2шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

4шт.

11

458889R1

CAP

pivot frame

2шт.

12

458906R2

PLATE

latch support

1шт.

13

462764R93

PULLEY

ROLLER ASSY, breakaway latch

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

14

459396R2

BUSHING

latch strap pivot

1шт.

20704R1

WASHER

1-1/32 x 1-1/2 x 11 ga C-Z

2шт.

15

458907R1

BOLT

EYEBOLT, lead adjustment

1шт.

280954

NUT,3/4"-10, G5

2шт.

16

490529R1

SPRING

frt leaf

1шт.

17

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

18

524452R1

VALVE SPRING

SPRING, rear helper

1шт.

181433

BOLT,Hex, 1/2" - 20 x 1 3/4", Gr 5

1/2-NF x 1-3/4 pln type 5

1шт.

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

17/32 x 1-3/8 x 11 ga

1шт.

178374R1

WASHER

17/32 x 1-3/4 x 16 ga C-Z

1шт.

18452R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 nylon insert

1шт.
