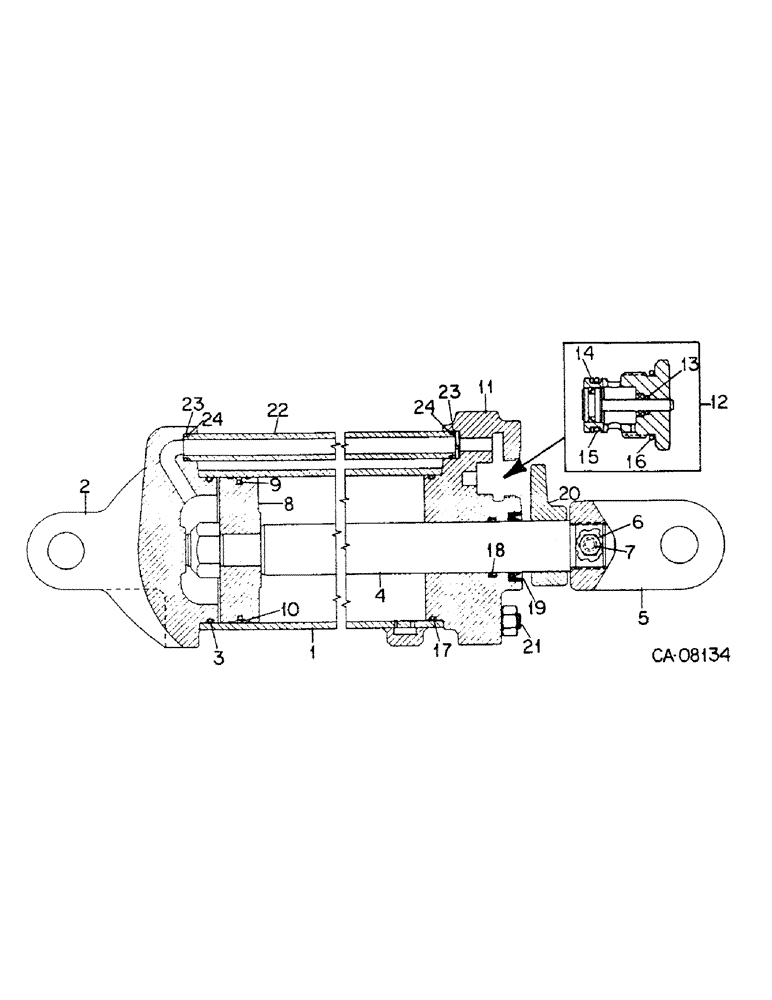

Запчасти Case IH 1200 (P-13) - HYDRAULIC CYLINDER, 3-1/2 X 8 IN. DOUBLE ACTING

1263474C91

CYLINDER ASSY.

CYLINDER ASSY, 3-1/2 x 8 in. double acting hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder, order cylinder assy

1шт.

2

145354C1

HEAD

rear

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING, 3-1/4 x 3-1/2 class 6, order kit 79978C1

1шт.

NSS

NOT SOLD SEPARAT

RING, back-up, order kit 79978C1

1шт.

4

1272813C1

ROD

piston

1шт.

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF phc p/t lock type 8

1шт.

5

1282366C1

RAM FORK

END, piston rod

1шт.

6

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, rod end insert

1шт.

8

145422C1

PISTON

cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING, 3 x 3-3/16 class 5, order kit 79978C1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, piston o-ring, order kit 79978C1

1шт.

11

1255096C1

END

HEAD, front

1шт.

12

1260968C91

VALVE

ASSY, limit stop, includes Ref. nos. 13 thru 16

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, 3/16 x 5/16 class 6, order kit 1272597C91

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER, stop limit back-up, order kit 1272597C91

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING, 11/16 x 7/8 class 6, order kit 1272597C91

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING, 3/4 OD tube class 6, order kit 1272597C91

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING, 3-1/4 x 3-1/2 class 6, order kit 79978C1

1шт.

NSS

NOT SOLD SEPARAT

RING, back-up, order kit 79978C1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL, piston rod urethane, order kit 79978C1

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL, piston rod wiper, order kit 79978C1

1шт.

20

224581C2

ARM

VALVE, cylinder trip

1шт.

1263435C91

ADJUSTMENT SCREW

ASSY, hyd cylinder "L"

1шт.

21

145250C1

BOLT,5/8" - 11 x 345mm

cylinder tie

4шт.

102639

NUT,5/8"-11, G5

4шт.

22

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

110730

LOCK WASHER

WASHER, 3/8 pln lt lock

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING, 9/16 x 3/4 class 6, order kit 1272597C91

2шт.

24

NSS

NOT SOLD SEPARAT

WASHER, return tube o-ring back-up, order kit 1272597C91

2шт.

79978C1

SEAL KIT

KIT, hyd cylinder o-ring & seal service, consists of Ref. nos. 3, 9, 10, 17, 18 and 19

1шт.

1272597C91

KIT

valve & transfer tube service, consists of Ref. nos 13 through 16, 23 and 24

1шт.
