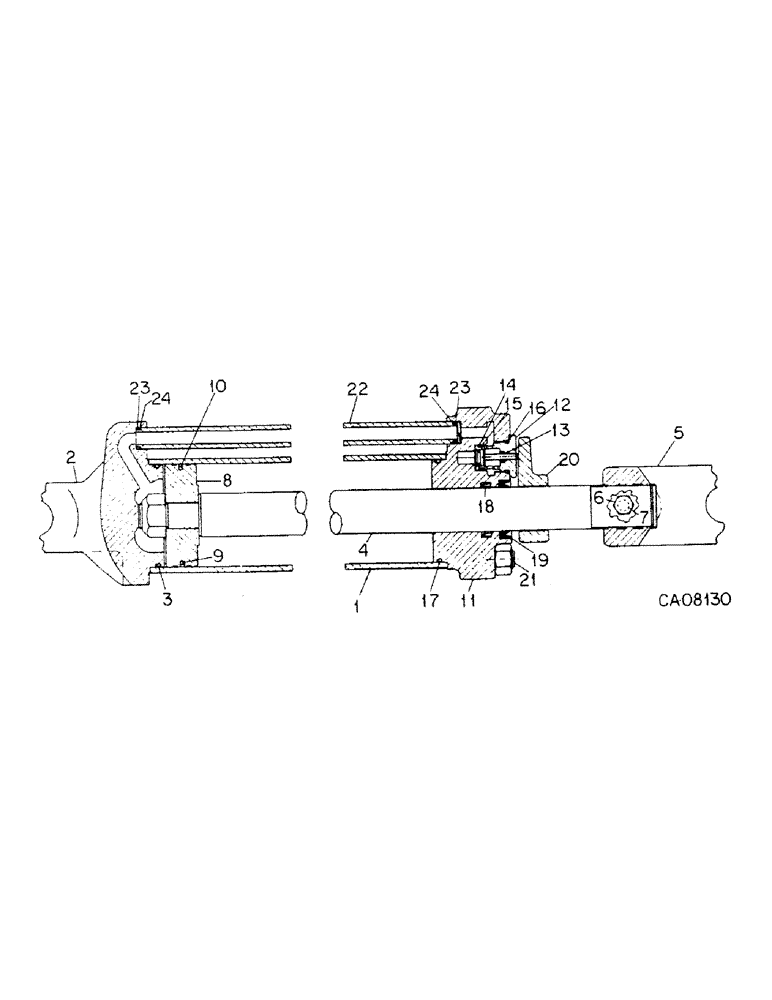

Запчасти Case IH 1200 (P-12) - HYDRAULIC CYLINDER, 2-1/2 X 8 IN. DOUBLE ACTING

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSY, 2-1/2 x 8 in. double acting hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder, order cylinder assy

1шт.

2

145363C1

HEAD

rear

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING, 2-1/4 x 2-1/2 class 6, order kit 79975C1

1шт.

4

145500C1

PISTON ROD

ROD, piston

1шт.

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF phc p/t lock type 8

1шт.

5

145233C1

CLEVIS,1/4" - 12

END, piston rod

1шт.

6

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, rod end insert

1шт.

8

145221C2

PISTON

cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING, 2-1/16 x 2-1/4 class 5, order kit 79975C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING, piston o-ring seal, order kit 79975C1

1шт.

11

145365C1

END

HEAD, front

1шт.

12

1260968C91

VALVE

ASSY, limit stop, includes Ref. nos. 13 thru 16

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, 3/16 x 5/16 class 6, order kit 1272597C91

1шт.

14

NSS

NOT SOLD SEPARAT

RING, stop limit back-up, order kit 1272597C91

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING, 11/16 x 7/8 class 6, order kit 1272597C91

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING, 3/4 OD tube class 6, order kit 1272597C91

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING, 2-1/4 x 2-1/2 class 6, order kit 79975C1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL, piston rod urethane, order kit 79975C1

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL, piston rod wiper, order kit 79975C1

1шт.

20

224579C2

VALVE

cylinder trip

1шт.

1263435C91

ADJUSTMENT SCREW

ASSY, hyd cylinder "L"

1шт.

21

1260889C1

SQUARE BOLT,7/16" - 14 x 322.94mm

cylinder tie

4шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

4шт.

22

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

110730

LOCK WASHER

WASHER, 3/8 pln lt lock

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING, 9/16 x 3/4 class 6, order kit 1272597C91

2шт.

24

NSS

NOT SOLD SEPARAT

WASHER, return tube o-ring back-up, order kit 1272597C91

2шт.

79975C1

SEAL KIT

KIT, hydraulic cylinder seal, consists of Ref. nos. 3, 9, 10, 17, 18 and 19

1шт.

1272597C91

KIT

valve & transfer tube service, consists of Ref. nos. 13 thru 16, 23 and 24

1шт.
