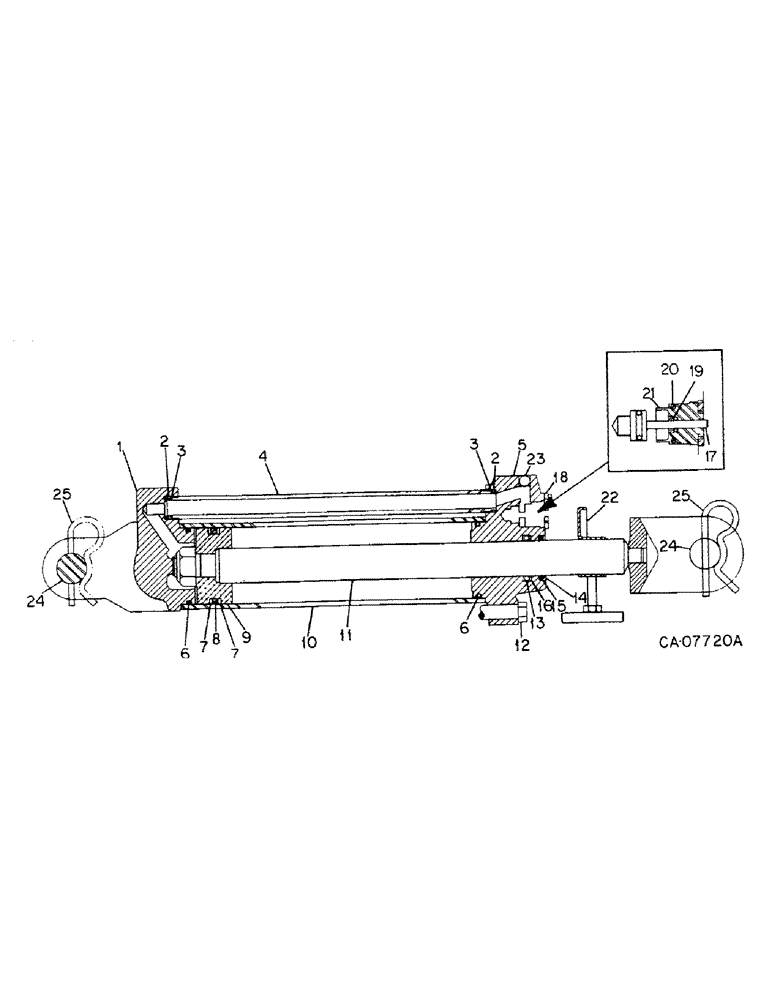

Запчасти Case IH 1200 (P-11) - HYDRAULIC CYLINDER, 2-1/2 X 8 IN. DOUBLE ACTING

371291R97

CYLINDER

ASSY, 2-1/2 x 8 in. double acting hydraulic, for service replacement, order

1шт.

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSY, 2-1/2 x 8 in. double acting hydraulic

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER, 7/8-14 female x 3/4-16 male o-ring boss

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

1

60791C1

HEAD

rear

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING, 9/16 x 3/4 x 3/32 class 6, order package 363137R94

2шт.

3

NSS

NOT SOLD SEPARAT

WASHER, return tube o-ring back-up, order package 363137R94

2шт.

4

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

60794C91

HEAD

ASSY, front

1шт.

50410DA

PLUG

head

3шт.

6

NSS

NOT SOLD SEPARAT

O-RING, 2-1/4 x 2-1/2 class 6, order package 363137R94

2шт.

7

NSS

NOT SOLD SEPARAT

WASHER, piston back-up, order package 363137R94

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING, 2-1/8 x 2-1/2 class 6, order package 363137R94

1шт.

9

361000R1

HEAD

piston

1шт.

10

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

1шт.

11

60784C91

ROD

ASSY, piston

1шт.

9412368

NUT

3/4-NF phc p/t lock type 8

1шт.

12

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

7/16-14 x 12-1/8 hex-hd

4шт.

13

NSS

NOT SOLD SEPARAT

RING, gland, order package 363137R94

1шт.

14

NSS

NOT SOLD SEPARAT

RETAINER, piston rod dust seal, order package 363137R94

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, piston rod dust, order package 363137R94

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER, rod seal back-up, order package 363137R94

1шт.

17

361006R11

VALVE

ASSY, limit stop

1шт.

18

361009R1

PLATE

limit stop valve retaining

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

1/4 x 9/16 pln type 5

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING, 3/16 x 5/16 class 6, order package 363137R94

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING, 5/8 x 13/16 class 5, order package 363137R94

1шт.

21

361007R11

RETAINER

ASSY, limit stop valve

1шт.

22

1263434C91

TRIP

ASSY, valve

1шт.

543261R1

SCREW

cyl thumb

1шт.

23

17013R1

BALL,13/32" Dia

1шт.

24

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN, 1 x 3-1/4 znp clevis, replaces 61571C1

2шт.

25

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

363137R94

PACKAGE

hyd cylinder o-ring service, consists of Ref. nos. 2, 3, 6, 7, 8, 13 through 16, 19 and 20

1шт.
