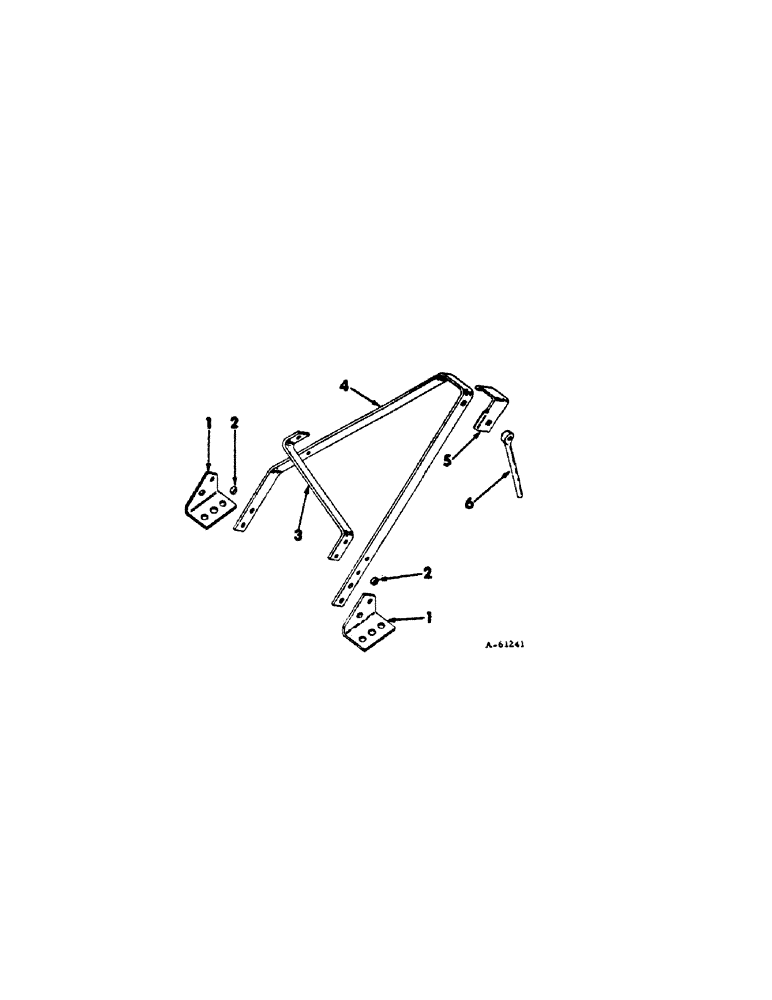

Запчасти Case IH 1200 (L-23) - TRANSPORT, FOR 9 FT. CUTTER BAR

1

463186R2

SUPPORT

BRACKET, transport stand

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

2

950019R1

SPACER

transport stand

2шт.

3

463187R1

SUPPORT

BRACE, transport stand

1шт.

4

463185R1

STAND

transport

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 C-Z hex-hd cap

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

22443R1

BOLT,Sq Nk, 1/2" - 13 x 1 1/2"

1/2 x 1-1/2 C-Z step

1шт.

22073R1

PIN, 1/2 x 7/8 C-Z std-hd 1/2" x 7/8"

1шт.

586591R1

COTTER PIN

PIN, quick attachable cot.

1шт.

5

463188R1

SUPPORT

CLIP, transport stand

1шт.

6

463189R1

ROD

HANDLE, support

1шт.

489611R92

TOOL ASSY.

KNIFE SECTION RIVETING TOOL PACKAGE, consists of Ref. nos. 3, 4 and 5

1шт.

55169C91

PACKAGE

LEDGER PLATE RIVETING TOOL PACKAGE, for use with 489611R92, consists of Ref. nos 1 and 2

1шт.
