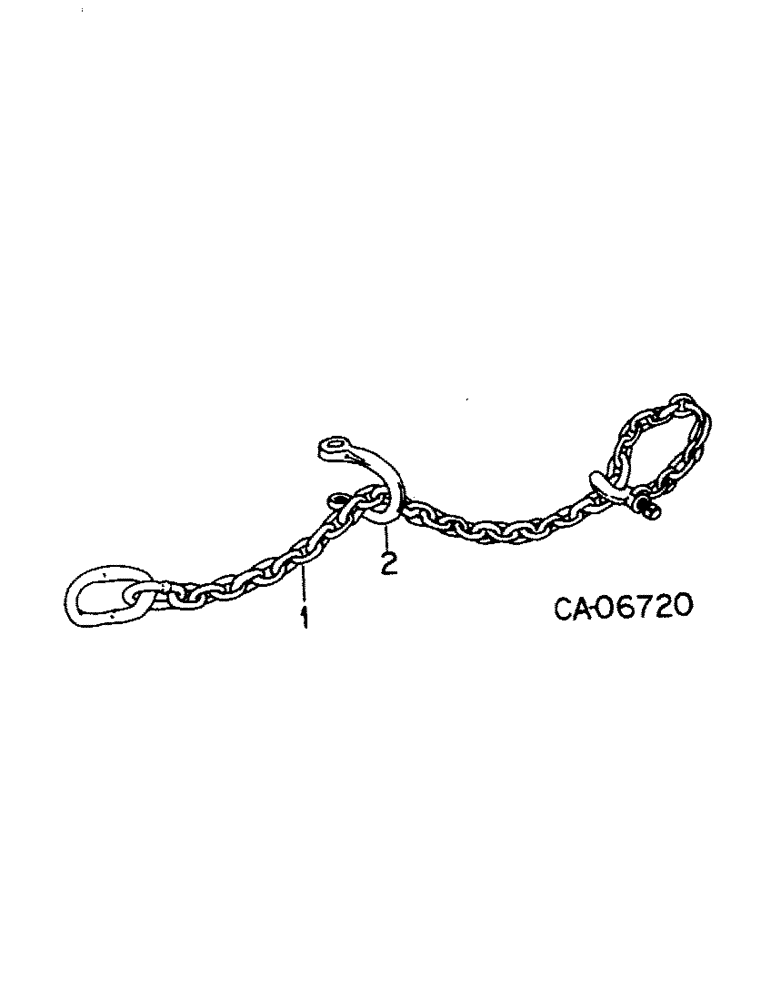

Запчасти Case IH 1200 (L-20) - SAFETY CHAIN

1

100682C2

CHAIN (AG)

CHAIN, safety

1шт.

2

148558C1

CLEVIS

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

19508R1

LOCK NUT,5/8"-11, GB

BOLT, 5/8 x 3-1/2 type 5

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 3-1/4 type 5

1шт.

23276R1

WASHER

.656 x 2.000 x .164

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8 phc p/t lock type 5

1шт.

61913C92

PACKAGE

safety chain hardware, consists of Ref. no. 2 and attaching hardware

1шт.
