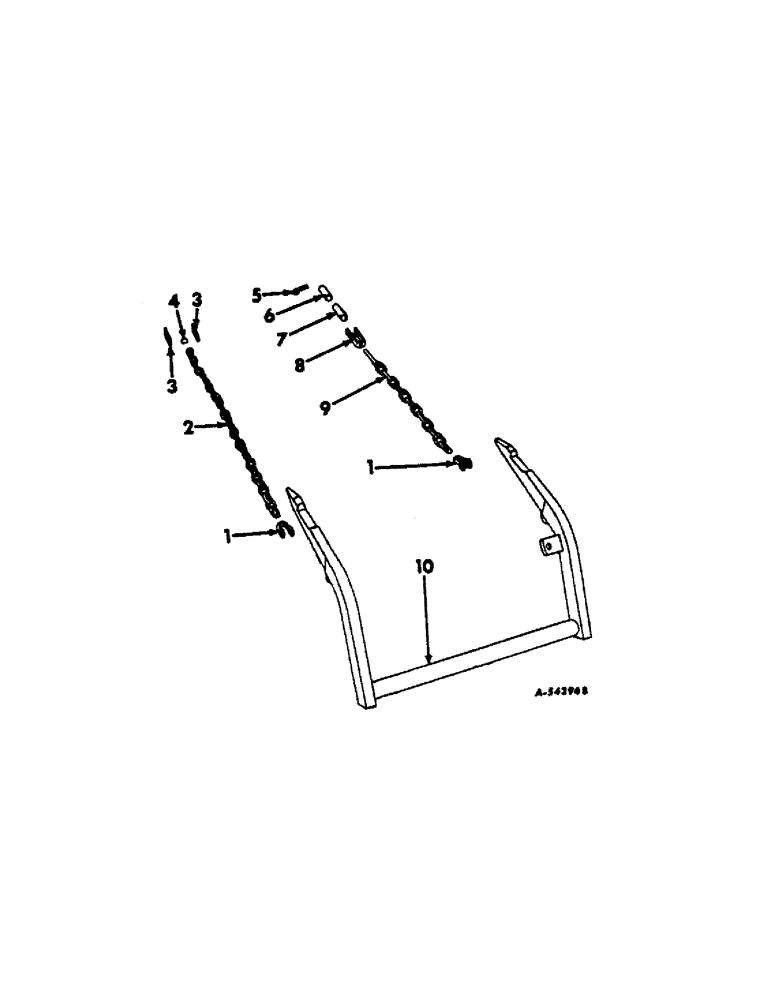

Запчасти Case IH 1200 (L-19) - FAST-HITCH - DRAWBAR, FOR 1200 ONLY

1

455369R2

CLEVIS

lifting chain support

2шт.

21931R1

PIN

1/2 x 1-7/8 C-Z std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

2

455724R91

CHAIN (AG)

CHAIN, lifting, 28 links of no. 7/0 straight link coil

1шт.

3

459044R1

BAR

STRAP, lifting chain

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

21931R1

PIN

1/2 x 1-7/8 C-Z std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

4

459064R1

SPACER

lifting chain strap

1шт.

5

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

6

459043R1

SPACER

SLEEVE, support stud

1шт.

7

459042R1

PIN

STUD, support

1шт.

8

M22609

CLEVIS

support chain

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2 C-Z std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

9

459039R91

CHAIN (AG)

CHAIN, support, 12 links of straight high tensil coil

1шт.

125536

SQUARE NUT

1/2-13 C-Z sq

2шт.

10

458980R91

BAR

DRAWBAR ASSY, tow-point hitch

1шт.
