Запчасти Case IH 1200 (L-19[A]) - FAST-HITCH, DRAWBAR AND RELATED PARTS, FOR 1200 ONLY

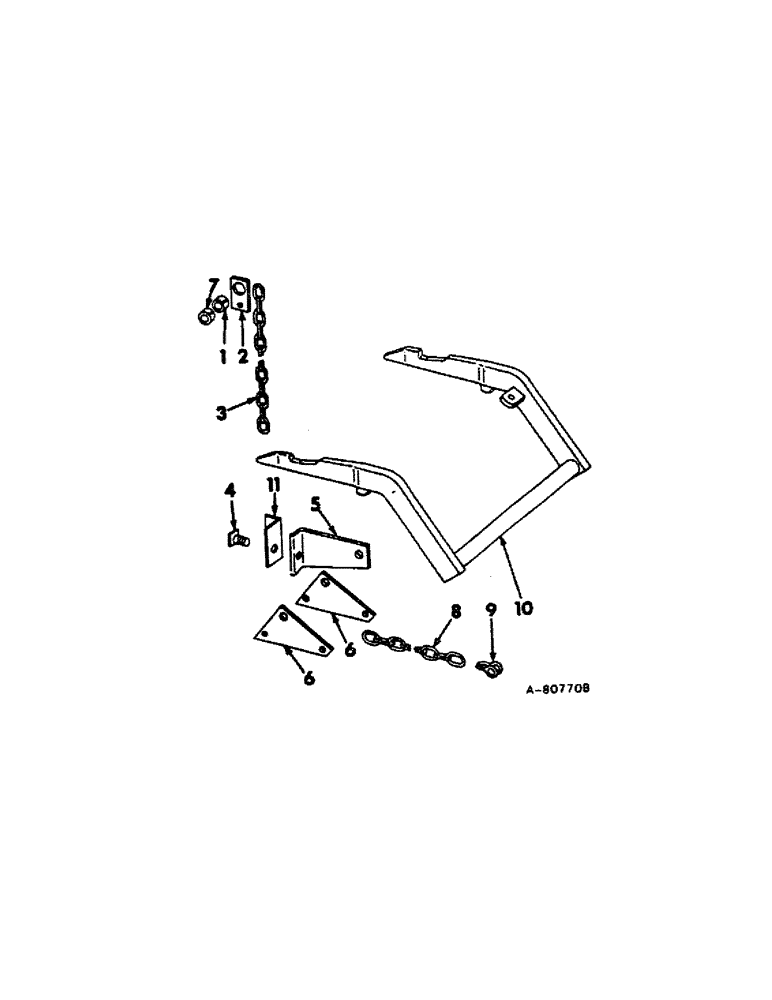

Схема запчастей Case IH 1200 - (L-19[A]) - FAST-HITCH, DRAWBAR AND RELATED PARTS, FOR 1200 ONLY

Артикул

Название

Примечание

Количество

1

479175R1

BUSHING

SLEEVE, rockshaft

1шт.

20529R1

PIN,7/32" x 1 1/2", Slotted

1шт.

21718R1

WASHER

1-17/32 x 2-1/4 x 11 ga C-Z

1шт.

2

479174R1

BLOCK, rockshaft lift

1шт.

3

479176R91

CHAIN, lift block, 23 links

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 C-Z hex-hd cap

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cdp nylon insert

1шт.

4

479170R91

BOLT

ASSY, gag bracket

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

5

479169R11

BRACKET ASSY, gag

1шт.

6

479173R1

LEVER, bellcrank gag

2шт.

271819

BOLT,Hex, 7/8" - 9 x 3", Gr 5

SCREW, 7/8-9 x 3 C-Z hex-hd cap

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

1шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z, 3 between levers, 3 between lever and bracket, 1 under screw hd and 1 under nut

1шт.

19749R1

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 nylon insert

1шт.

22635R1

HEADED PIN,1/2" x 1 1/4"

PIN, HEADED, 1/2 x 1 1/4 inch

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

7

481731R1

SPACER, rockshaft, unit A

1шт.

For application on the Farmall International 504 and International 606 series tractors w/two point fast-hitch without draft control.

1шт.

8

459045R1

CHAIN (AG)

CHAIN, mower bellcrank, 21 links

1шт.

9

455369R2

CLEVIS

bellcrank

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2 C-Z std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

458980R91

BAR

DRAWBAR, fast hitch

1шт.

11

481730R1

ANGLE, mounting bracket, unit A

1шт.

For application on the Farmall International 504 and International 606 series tractors w/two point fast-hitch without draft control.

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

Выбрано товаров: 31
