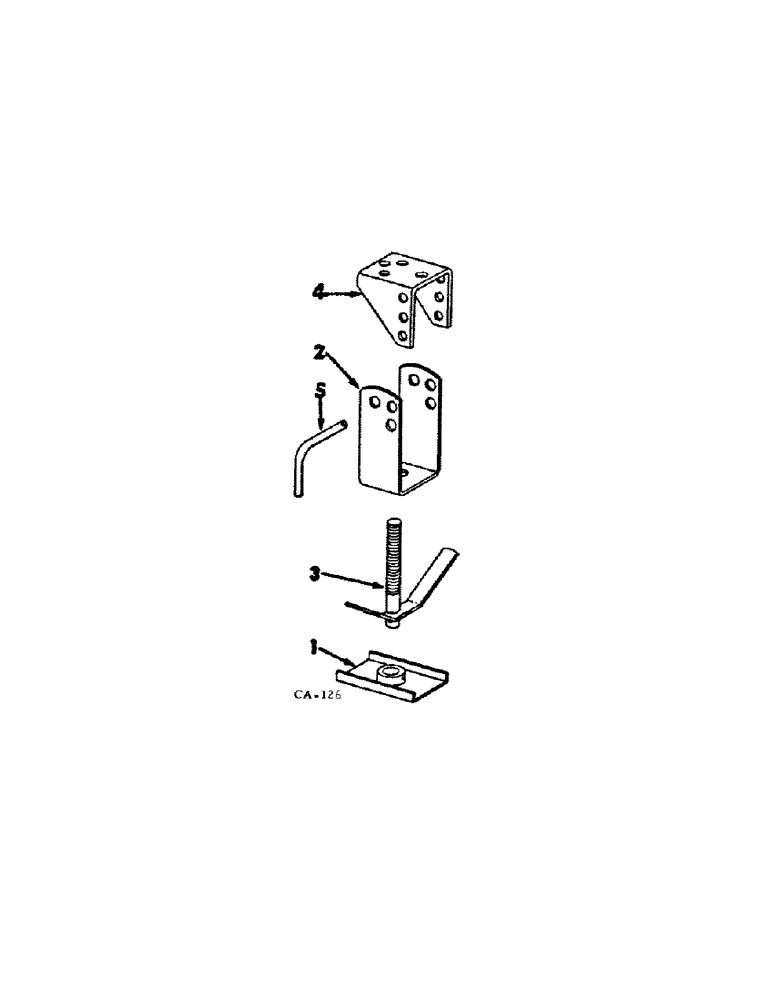

Запчасти Case IH 1200 (L-14[A]) - JACK ATTACHMENT

1

460379R11

BASE ASSY, jack stand

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

2

489526R1

CHANNEL ASSY, jack support

1шт.

3

489511R1

SCREW ASSY, jack

1шт.

4

489505R1

BRACKET, jack

1шт.

22636R1

BOLT, 5/8 x 5-1/2 dld type 1

1шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

5

465227R1

ROD

PIN, lock

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.
