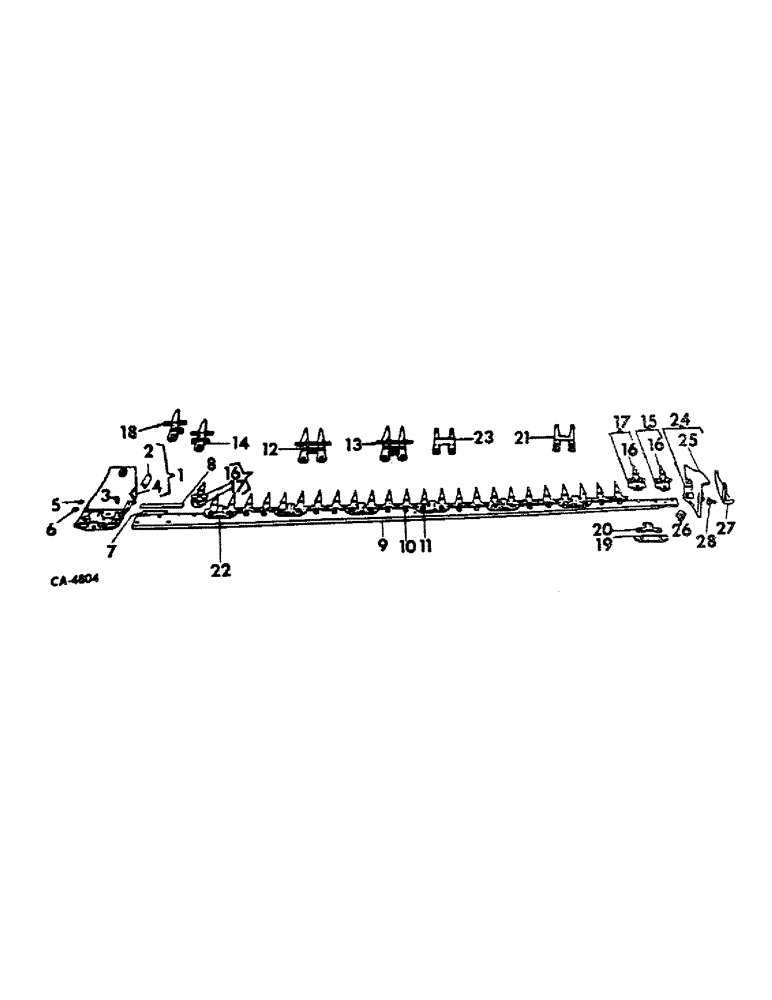

Запчасти Case IH 1200 (L-09) - CUTTER BAR

1

486934R91

SHOE

ASSY, inner

1шт.

2

486708R1

SHIELD

inner shoe

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

1шт.

Q5028

WASHER

15/32 x 1 x 11 ga

1шт.

3

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

4

458965R1

PLATE

inner shoe ledger

1шт.

13892R1

RIVET,Csk, 3/16" x 1 1/4"

3/16 x 1-1/4 pln 54D c/hd sol

2шт.

143868C1

BOLT,Hex, 5/8" - 11 x 2", Gr 5, Nylon Pellet

w/nylon pellet insert, 5/8-11 x 2 hex-hd

1шт.

27434R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 phc p/t type 8

2шт.

5

486707R1

WASHER

.656 x 1.25 x .104 hardened

3шт.

6

458941R1

SHIM

cutter bar tilting

1шт.

7

488411R1

SHIM

spacer, or as required

4шт.

8

458942R1

BAR

SPACER, cutter bar, 1/8 in.

1шт.

9

458974R1

BAR

7 foot cutters only

1шт.

9

1265863C1

BAR

9 foot cutters only, w/instructions

1шт.

10

M805X

BOLT AND NUT

BOLT W/NUT, short guard, 13 for 7 foot cutter, 17 for 9 foot cutter, 1 for 7 foot w/stub guard

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex., 1 per bolt

1шт.

11

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, long guard, 14 for 7 ft., 18 for 9 ft., 26 for 7 ft. w/stub guard

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex., 1 per bolt

1шт.

12

483500R3

GUARD

double steel Windrower, 12 for 7 ft w/double forged guard, 17 for 9 ft. w/double forged guard

1шт.

12

187346A1

GUARD

Double Heat Treated

1шт.

13

58600C1

GUARD ASSY.

GUARD, strut, 12 for 7 ft. w/double forged guard, 17 for 9 ft. w/double forged guard

1шт.

14

472717R2

GUARD

single steel stub, 2 for 7 ft. w/malleable guards, 2 for 7 ft. w/malleable guards and ledger plates, 3 for 7 ft. w/double forged guards, 27 for 7 ft. w/stub guards

1шт.

15

MC2043Z

GUARD

W/LEDGER PLATE, outer for 7 and 9 ft. w/malleable guards

1шт.

15

457745R92

GUARD

W/CRP LEDGER PLATE, outer

1шт.

16

455634R1

PLATE

ledger, 25 for 7 ft. w/malleable guards, 33 for 9 ft. w/malleable guards

1шт.

16

457608R1

CUTTER BAR

PLATE, crp serrated ledger

25шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 in. 74 deg csk-hd tubular, 1 per plate, one pound package

1шт.

17

MC2041Z

GUARD

GUARD W/LEDGER PLATE, heavy, 24 for 7 ft. w/malleable guards, 32 for 9 ft. w/malleable guards

1шт.

17

457743R92

GUARD

W/CRP LEDGER PLATE, heavy, 24 for 7 ft. w/malleable guards

1шт.

18

486452R2

SHIELD

GUARD, inner, 9 ft. w/double forged guards only

1шт.

19

MC468

PLATE ASSY.

PLATE, wearing, 7 for 7 ft. malleable guards, 7 for 7 ft. w/ malleable guards and ledger plates, 7 for 7 ft. w/double forged guards, 9 for 9 ft. w/malleable guards, 9 for 9 ft. w/double forged guards, 13 for 7 ft. w/stud guards.

1шт.

20

544274R1

CLIP

HOLDER, low arch knife, 6 for 7 ft. and 8 for 9 ft.

1шт.

21

58601C1

CLIP

low arch strut, 11 for 7 ft. w/double forged guard, 15 for 9 ft. w/double forged guard

1шт.

22

611759R1

KNIFE CLIP

HOLDER, high arch knife

1шт.

23

58602C1

CLIP

high arch strut, 1 for 7 ft. w/double forged guards, 2 for 7 ft. w/double forged guards

1шт.

24

MF729AX

SHOE

W/LEDGER PLATE, outer

1шт.

25

MA330

LARGE PLATE

PLATE, outer shoe serrated ledger

1шт.

990720R91

RIVET, 3/16 x 11/16 54 deg csk-hd, one pound package

1шт.

990717R91

RIVET, 3/16 x 54 deg csk-hd, one pound package

1шт.

26

M805X

BOLT AND NUT

BOLT W/NUT, outer shoe

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

27

M259X

SOLE

W/BRACKET, outer shoe

1шт.

28

D266X

BOLT AND NUT

W/NUT, outer shoe sole

1шт.

102637

NUT,1/2"-13, G5

1шт.

101831C2

CLIP

HOLDER, regular knife, 11 for 7 ft. w/stub guards

1шт.

101832C2

CLIP

HOLDER, high-arch knife, 2 for 7 ft. w/stub guards

1шт.
