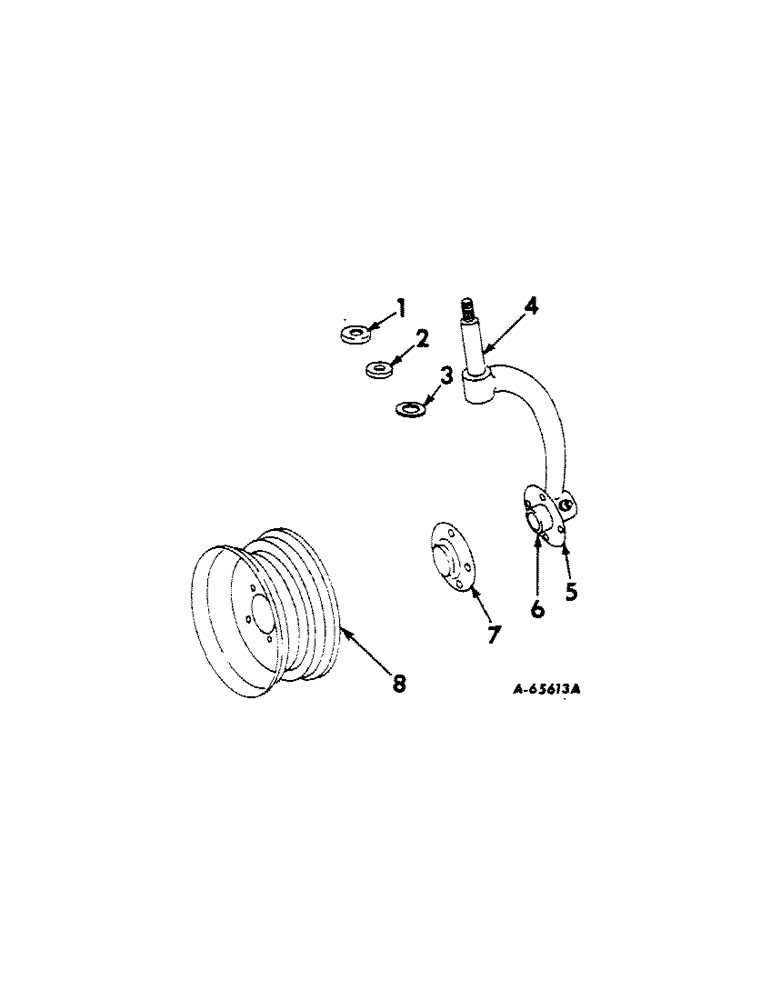

Запчасти Case IH 120 (D-07[A]) - CASTER WHEEL

1

465231R1

CUP WASHER

cupped axle

1шт.

2

465232R1

RUBBER WASHER

rubber axle

1шт.

3

575814R1

WASHER

25/32 x 2 in. x 11 ga

1шт.

4

465228R91

AXLE

ASSEMBLY, caster wheel

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

69442D

NUT

3/4 in. thick slt

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.

102455

SWITCH

SCREW, 3/8 x 7/8 in. sq-hd oval pt set

1шт.

551660R1

WASHER

1-5/32 x 2 in. x 16 ga

1шт.

5

465235R1

RETAINER

HOUSING, open bearing

1шт.

6

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING W/SHAFT, assy

1шт.

7

465236R1

COVER

HOUSING, closed bearing

1шт.

102635

NUT,3/8"-16, G5

5шт.

NLS

NO LONGER SERVICED

5шт.

465466R1

WASHER, 3/8 in. external tooth lock

10шт.

8

488954R1

WHEEL

W/TIRE AND TUBE

1шт.

TIRE, smooth tread implement, 4.80/4.00 x 8, 4 ply

1шт.

TUBE, pneumatic inner, 4.80/4.00 x 18 w/TR13CW valve

1шт.
