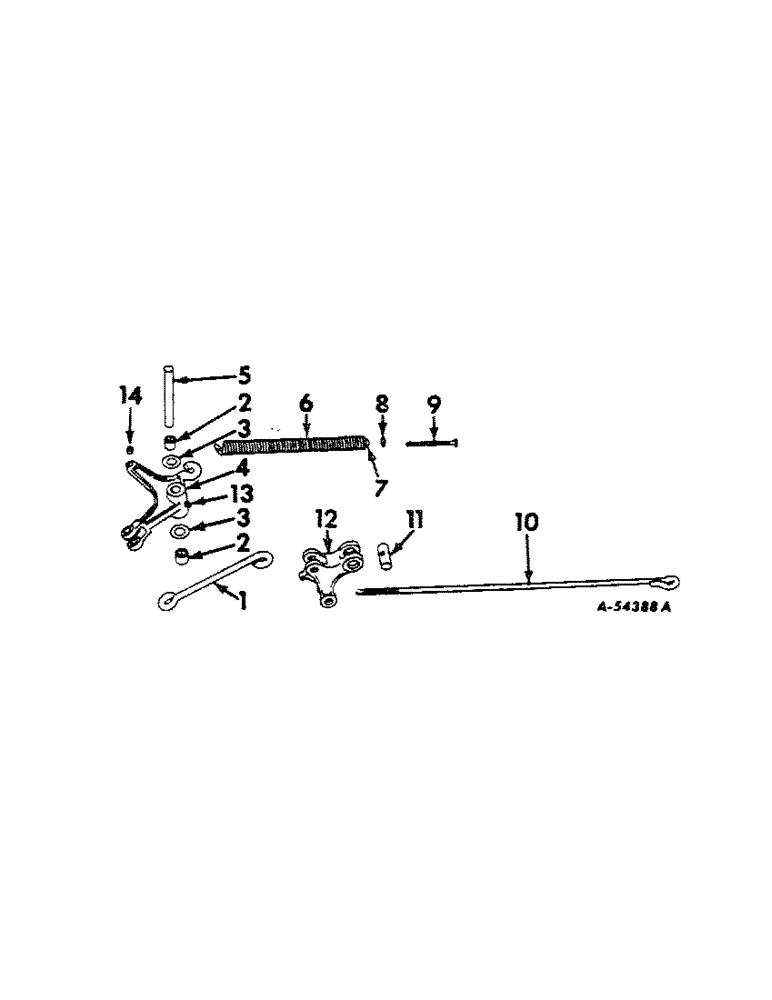

Запчасти Case IH 120 (D-04) - BELLCRANK, GAG AND LIFT LEVER AND BALANCING SPRING

1

458912R2

ROD

bellcrank lift

1шт.

2

454154R1

BUSHING

bellcrank

2шт.

3

557274R1

WASHER

1-5/32 x 2 x 11 ga

2шт.

4

465245R11

LEVER

BELLCRANK W/BUSHINGS

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

515212R1

PIN, 3/4 x 2-11/16 dld std-hd

1шт.

5

465475R1

SHAFT

bellcrank

1шт.

131135

PIN, 3/8 x 1-3/4 cotter

1шт.

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, , ESNA 3/16" x 2", Slotted

1шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

ESNA 5/16" x 2", Slotted

1шт.

551660R1

WASHER

1-5/32 x 2 x 16 ga

1шт.

6

MA22110

SPRING

cutter bar balancing, 52 coils

1шт.

7

M1425

PLUG

spring

1шт.

8

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

9

Q822

BOLT

1/2 x 6 special sq-hd, adjusting balancing spring

1шт.

105608

NUT

1/2 in.

1шт.

10

458915R1

BOLT

ROD, gag

1шт.

102639

NUT,5/8"-11, G5

2шт.

11

458914R1

PIN

PIVOT, gag rod

1шт.

12

458913R1

LEVER

gag and lift

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

Q839

SPLIT PIN/SAFETY PIN

PIN, 3/4 x 2-5/8 dld std-hd

2шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

14

Not used in this application

1шт.
