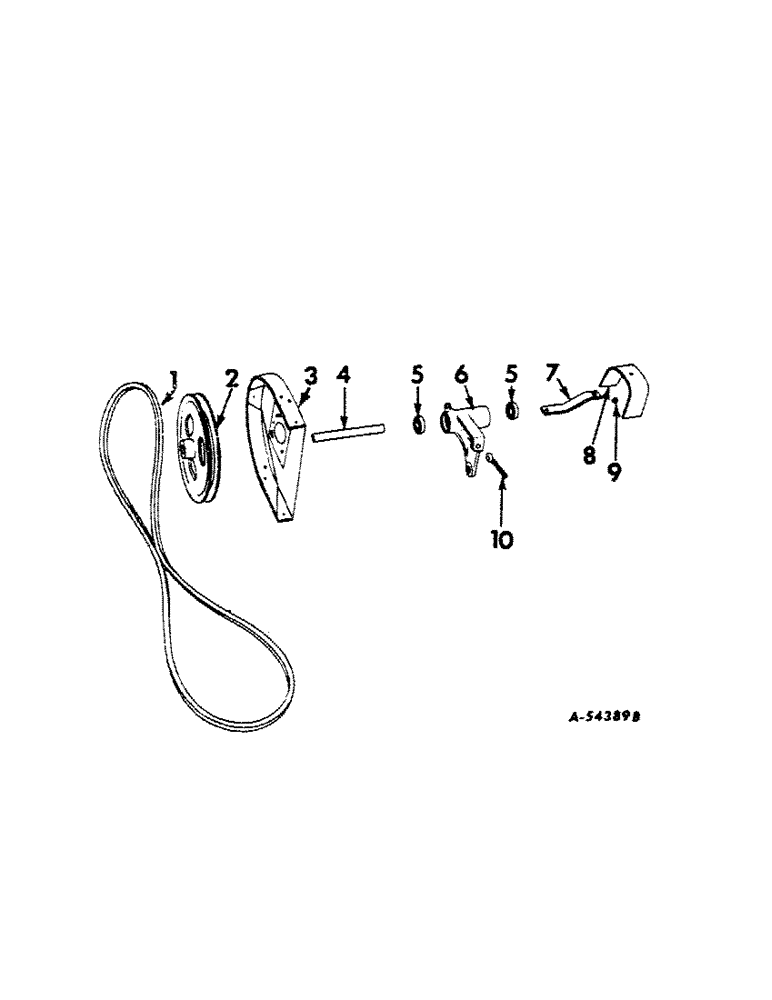

Запчасти Case IH 120 (D-04[A]) - DRIVE SHAFT HOUSING PULLEY, V-BELT AND SHIELDS

1

191288C2

BELT,0.879" W x 96.11" L

V-BELT , Knife, For use w/473535R1 pulley, For tractors w/1000 RPM-PTO 0.879" W x 96.11" L

1шт.

1

558141R1

V-BELT,0.88" W x 105.20" L

Knife drive, For use w/456568R3 pulley, For tractors w/540 RPM-PTO 0.88" W x 105.20" L

1шт.

1

562088R1

V-BELT,0.88" W

Knife drive, For use w/456567R3 pulley, For tractors w/ 540 RPM-PTO 0.88" W x 165

1шт.

2

473535R1

PULLEY, drive, for tractors w/1000 RPM-PTO

1шт.

2

456567R3

PULLEY

drive, regular, 900 RPM, for tractors w/540 RPM-PTO

1шт.

2

456568R5

PULLEY

drive, special, 1000 RPM, for tractors w/540 RPM-PTO

1шт.

*

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

ESNA 5/16" x 2 1/4", Slotted

2шт.

*

455257R1

LOCK PIN,3/16" x 2 1/4", Slotted

Pin, , ESNA 3/16" x 2 1/4", Slotted

2шт.

3

473529R91

SHIELD, drive pulley, for tractors w/1000 RPM-PTO

1шт.

*

RIVET, 3/16 x 7/16 truss-hd

6шт.

3

464888R91

SHIELD, drive pulley, for tractors w/540 RPM-PTO

1шт.

*

17436R1

BOLT, 5/16 x 1-1/8 in. mach

2шт.

*

NLS

NO LONGER SERVICED

RIVET, 3/16 x 7/16 in. truss-hd (PN 135286)

6шт.

*

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

*

Q399

WASHER

11/32 x 1 in. x 16 ga

2шт.

*

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

4

456571R3

SHAFT

drive

1шт.

*

Q1444

KEY,1/4" Sq x 7/8", Par

1/4 x 1/4 x 7/8 sq-parallel

2шт.

*

Q5036

WASHER

1-1/32 x 1-3/4 x 16 ga

5шт.

*

Q116

WASHER

1-1/32 x 1-3/4 x 22 ga

1шт.

5

ST208B

BALL BEARING,25mm ID x 52mm OD x 15mm W

BEARING, drive shaft ball

2шт.

6

458908R3

HOUSING

drive shaft

1шт.

*

13019R1

FITTING

1/8 in. straight vented lub

1шт.

*

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 C-Z hex-hd cap

1шт.

*

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

*

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

467271R1

BRACKET, drive shield, 1962 and since

1шт.

7

458909R1

BRACKET, drive shield, 1961

1шт.

*

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 mach

1шт.

*

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

458983R1

SHIELD, rear knuckle drive

1шт.

*

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1 mach

1шт.

*

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

10

10400F

BOLT

EYEBOLT, belt adjusting

1шт.

*

102637

NUT,1/2"-13, G5

2шт.

*

178373R1

WASHER

17/32 x 1 x 16 ga

1шт.

*

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2 x 2-1/4 C-Z hex-hd cap

1шт.

*

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

*

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
