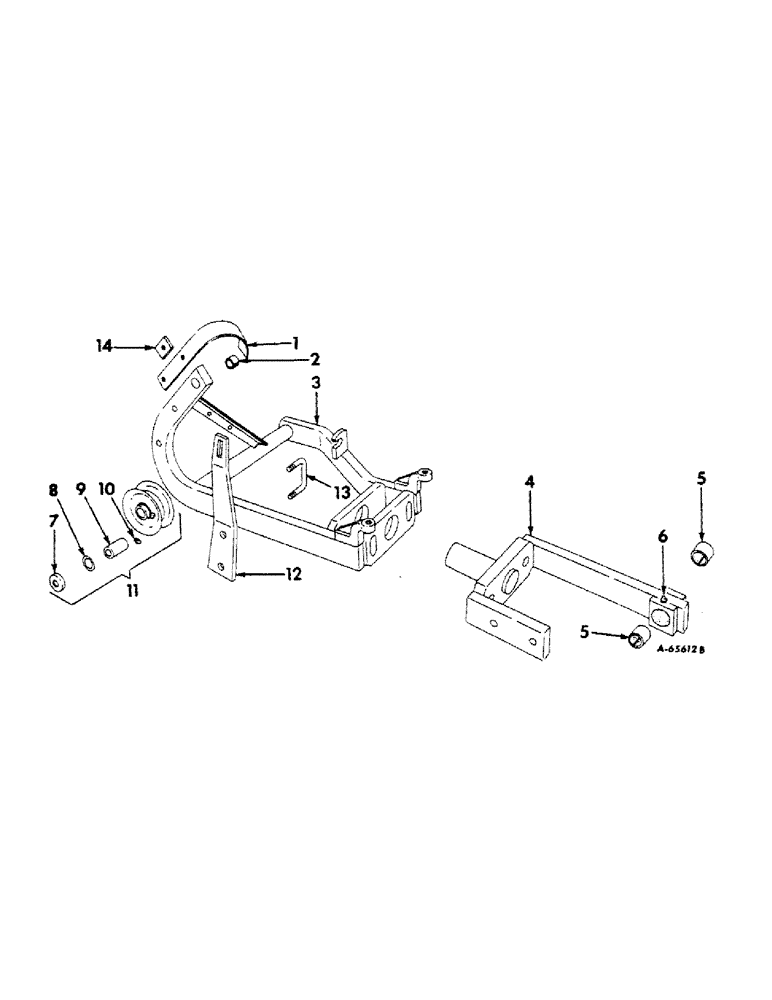

Запчасти Case IH 120 (D-03) - CUTTER BAR SUPPORT, HINGE COUPLING AND IDLER PULLEY

1

458976R2

SUPPORT, cutter bar

1шт.

102637

NUT,1/2"-13, G5

2шт.

SCREW, 1/2 x 2-3/4 in. cap

1шт.

SCREW, 1/2 x 3-1/2 in. cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

2шт.

2

458901R1

BUSHING

gag and lift lever pivot

1шт.

3

465217R93

COUPLING

hinge

1шт.

555026R1

BOLT,Hex, 5/8" - 11 x 3", Full Thd

5/8 x 3 in. special mach

1шт.

19871R1

BOLT, 3/4 x 2-1/2 in. dld crg

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4 in. slotted

2шт.

520175R1

CLIP

PIN, quick attachable cotter

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

2шт.

4

465212R92

LEVER

TILT ASSY

1шт.

102637

NUT,1/2"-13, G5

2шт.

179891

SHAFT

SCREW, 1/2 x 2-1/2 in. cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

458900R1

SPACER

BUSHING, hinge pin

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

464899R1

CUP WASHER

cupped

2шт.

8

464900R1

THRUST WASHER

thrust

2шт.

9

464898R1

BUSHING

BEARING, idler

1шт.

10

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 in. self tapping lubrication

1шт.

11

464893R91

ASSEMBLY

IDLER UNIT ASSY

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

W/NUT, 1/2 x 2-1/2 in. mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

464901R2

BRACKET, drive belt idler

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 in. mach

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

13

651811R1

BOLT,U, 1/2" - 13 x 2 1/4"

U-BOLT, drive belt idler bracket

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

P23245

SPACER

1шт.
