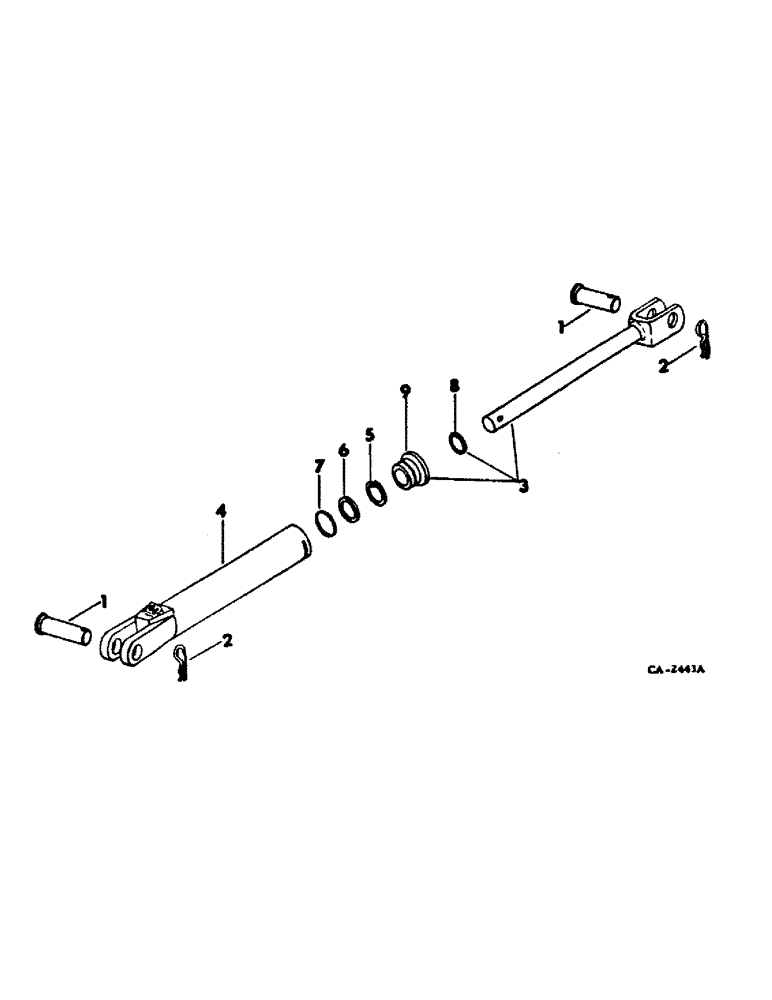

Запчасти Case IH 120 (P-03) - HYDRAULIC CYLINDER, 2 X 8 IN. SINGLE ACTING

461170R91

CYLINDER

ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 381832R93

1шт.

1

457696R1

PIN

1 x 2-7/16 in. drilled std-hd

2шт.

2

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

3

64602C91

PISTON

ASSY, cylinders, includes Ref. nos. 8 and 9, replaces 461175R91

1шт.

4

461171R11

BODY ASSY, cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING, retaining, order kit, 461181R92

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER, back-up, order kit, 461181R92

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING, 1-5/8 x 2 x 3/16, piston, order kit, 461181R92

1шт.

8

57679C1

SEAL

WIPER, rod

1шт.

9

57678C1

END ASSY.

END, cylinder, replaces 461179R1 by also ordering wiper, 57679C1

1шт.

142522

BUSHING

PIN, 1/4 x 1-3/4 znp groove

1шт.

461181R92

SEAL KIT

KIT, o-ring and seal service, consists of Ref. nos. 5, 6 and 7

1шт.
