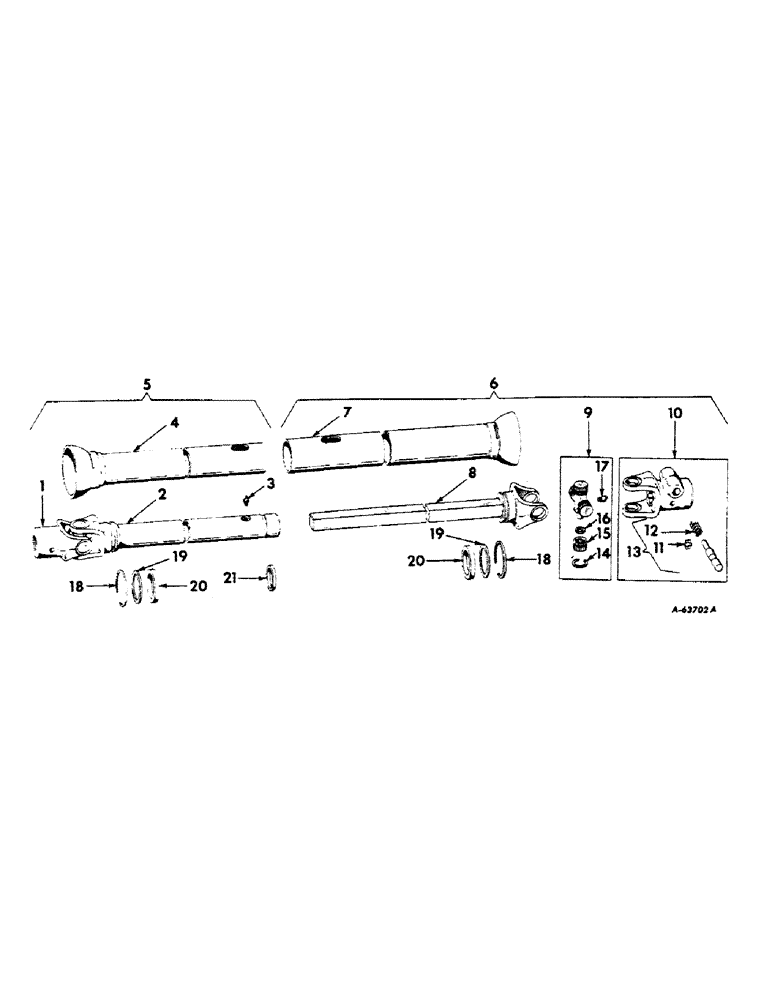

Запчасти Case IH 120 (D-17) - POWER DRIVE ATTACHMENT, 1962, DOUBLE UNIVERSAL JOINTS

1

462845R1

YOKE

rear

1шт.

Q1302

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 in. dld std hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

470265R1

TUBE

YOKE W/SLEEVE ASSEMBLY, tube

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4 in. straight lubrication

1шт.

4

470266R2

SHIELD

inner

1шт.

5

470262R92

JOINT ASSEMBLY, rear half of double universal, implement end

1шт.

6

470261R92

JOINT

ASSEMBLY, front half of double universal, tractor end, for tractors w/540 RPM-PTO

1шт.

6

473540R91

JOINT ASSEMBLY, front half of double universal, tractor end, for tractors w/1000 RPM-PTO

1шт.

7

470264R2

SHIELD

outer

1шт.

8

470263R2

YOKE

W/SHAFT

1шт.

9

659262R91

U-JOINT SPIDER

CENTER CROSS ASSEMBLY, Rockwell, std

1шт.

9

480486R91

CROSS

CENTER CROSS ASSEMBLY, chain belt

1шт.

10

459463R91

YOKE

ASSEMBLY, quick detachable, 1-3/8 in. spline, for tractors w/540 RPM-PTO

1шт.

10

573541R91

YOKE ASSEMBLY, quick detachable, 1-3/8 in. spline, for tractors w/1000 RPM-PTO

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin, for tractors w/540 RPM-PTO

1шт.

12

587479R1

SPRING

locking pin, for tractors w/1000 RPM-PTO

1шт.

13

455346R21

PIN

W/SPRING AND X-WASHER, locking, for tractors w/540 RPM-PTO

1шт.

13

473542R91

PIN W/SPRING AND X-WASHER, locking, for tractors w/1000 RPM-PTO

1шт.

14

661657R1

RING

SNAP RING, Rockwell std

8шт.

14

606177R1

SNAP RING

SNAP RING, chain belt

8шт.

15

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

ASSEMBLY, needle, Rockwell std

8шт.

15

480492R91

BEARING ASSY,0.8145" ID x 1.065" OD x 0.64"

ASSEMBLY, needle, chain belt

8шт.

16

661656R1

OIL SEAL, cork, Rockwell std

8шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in., 65 degree elbow lubrication

2шт.

18

613436R1

CLAMP

RING, shield retaining

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

613439R1

BRACKET

SUPPORT, nylon

1шт.
