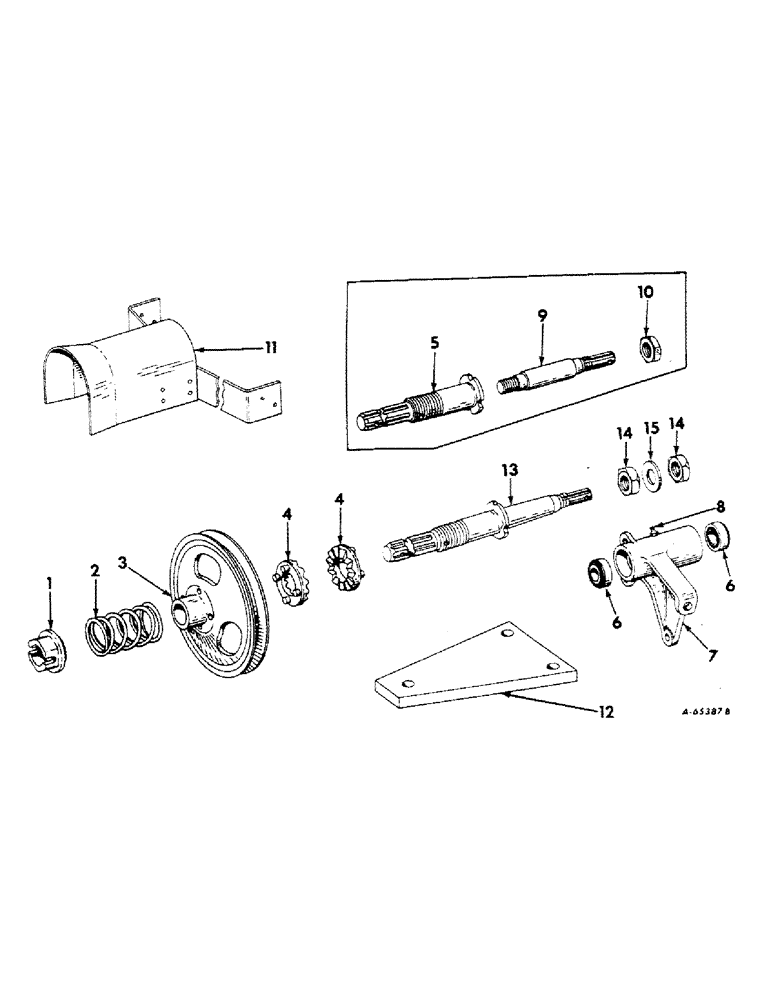

Запчасти Case IH 120 (D-11) - HITCH PARTS ATTACHMENTS, FOR USE WITH HAY CONDITIONER
№
Артикул
Название
Примечание
Количество
1
M2574
NUT
slip clutch
1шт.
2
M32816
SPRING
slip clutch
1шт.
3
M2571
PULLEY
drive slip clutch type, 1000 RPM, for tractors w/540 RPM-PTO
1шт.
3
473527R1
PULLEY, drive slip clutch type, for tractors w/1000 RPM-PTO
1шт.
4
B12170
RATCHET,Clutch Slip, 94.49mm
slip clutch
2шт.
5
462839R11
SHAFT ASSEMBLY, drive extension, 1961-1962, order shaft 471945R11, washer 471946R1 and two nut 133613H
1шт.
455183R1
LOCK PIN,5/16" x 2 1/2", Slotted
Pin, 5/16" x 2 1/2", Slotted
1шт.
6
602957R91
BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W
CONE W/SEAL AND CUP, roller bearing
2шт.
7
462836R2
HOUSING
drive shaft
1шт.
Q399
WASHER
11/32 x 1 in. x 16 ga
4шт.
8
13019R1
FITTING
1/8 in. straight vented lubrication
1шт.
9
462837R1
SHAFT, drive, 1961-1962, order shaft 471945R11, washer 471946R1 and two nut 133613H
1шт.
PO27165
WASHER, 1/9-32 x 1-23/32 x 1/8 in.
1шт.
466000R1
WASHER, 1.156 x 1.750 x 3/16 in.
1шт.
10
462838R1
NUT, stake, 1961-1962
1шт.
11
473532R91
SHIELD ASSY, hay conditioner drive, for tractors w/1000 RPM-PTO
1шт.
11
465260R11
SHIELD ASSY, hay conditioner drive, for tractors w/540 RPM-PTO
1шт.
180014
SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd
1/4 x 3/8 in. C-Z cap
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
NLS
NO LONGER SERVICED
RIVET, 3/16 x 7/16 truss-hd (PN 135286)
8шт.
12
465259R1
PLATE, hay conditioner mounting
1шт.
220081
NUT
3/4 in.
2шт.
271612
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
SCREW, 3/4 x 2-1/4 in. cap
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
13
473526R11
SHAFT, drive, for tractors w/1000 RPM-PTO
1шт.
13
471945R11
SHAFT
ASSY, drive, 1963 and since, tractors w/540 RPM-PTO
1шт.
PO27165
WASHER, 1-9/32 x 1-23/32 x 1/8
1шт.
Q1302
HEADED PIN,5/16" x 2 1/4"
PIN, 5/16 x 2-1/4 std-hd
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
14
133613H
NUT
1963 and since
2шт.
15
471946R1
WASHER
special, 1963 and since
1шт.
Выбрано товаров: 31
