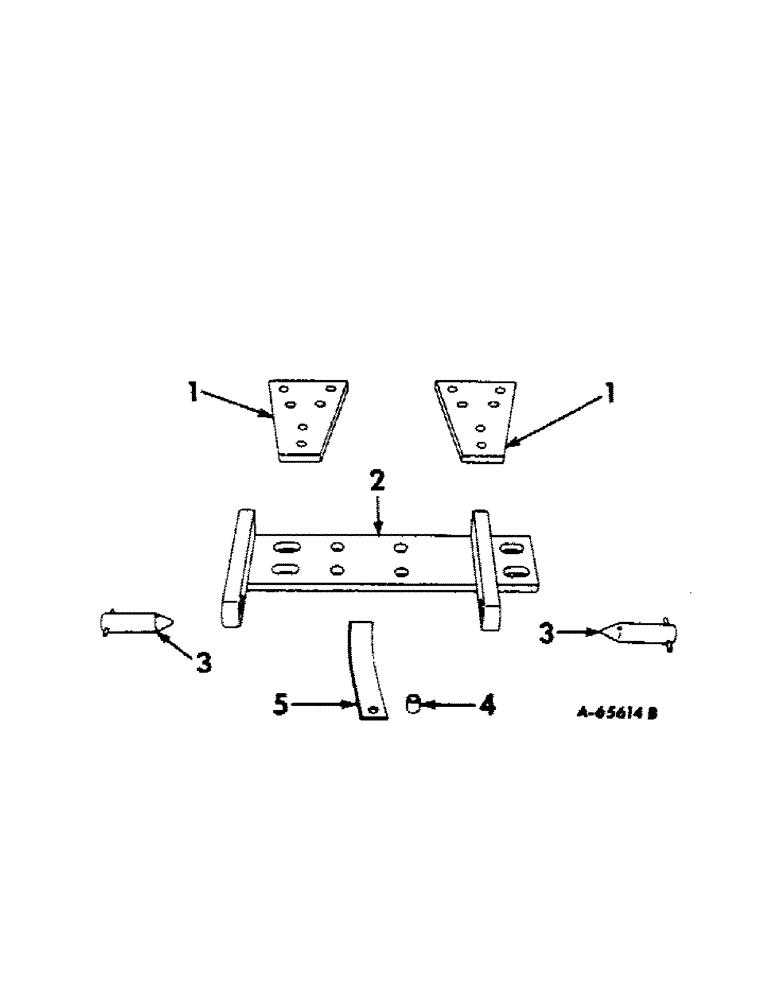

Запчасти Case IH 120 (D-10) - HITCH PARTS, FOR TRACTORS EQUIPPED W/TWO-POINT HITCH OR FIXED DRAWBAR

1

465275R2

PLATE, for fixed drawbar mounting only

1шт.

280954

NUT,3/4"-10, G5

5шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4 x 2-3/4 in. C-Z cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

5шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/2 C-Z cap

4шт.

2

465256R11

PLATE ASSY, mounting

1шт.

3

465258R1

PIN

attaching

2шт.

657196R1

PIN

1/4 x 2 esna roll

2шт.

19483R1

PIN, 5/32 x 2 in. esna roll

2шт.

520175R1

CLIP

PIN, quick attachable cotter

2шт.

4

453542R2

SPACER

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2 x 1-3/4 in. mach

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

5

467218R1

SPRING, leaf

1шт.
