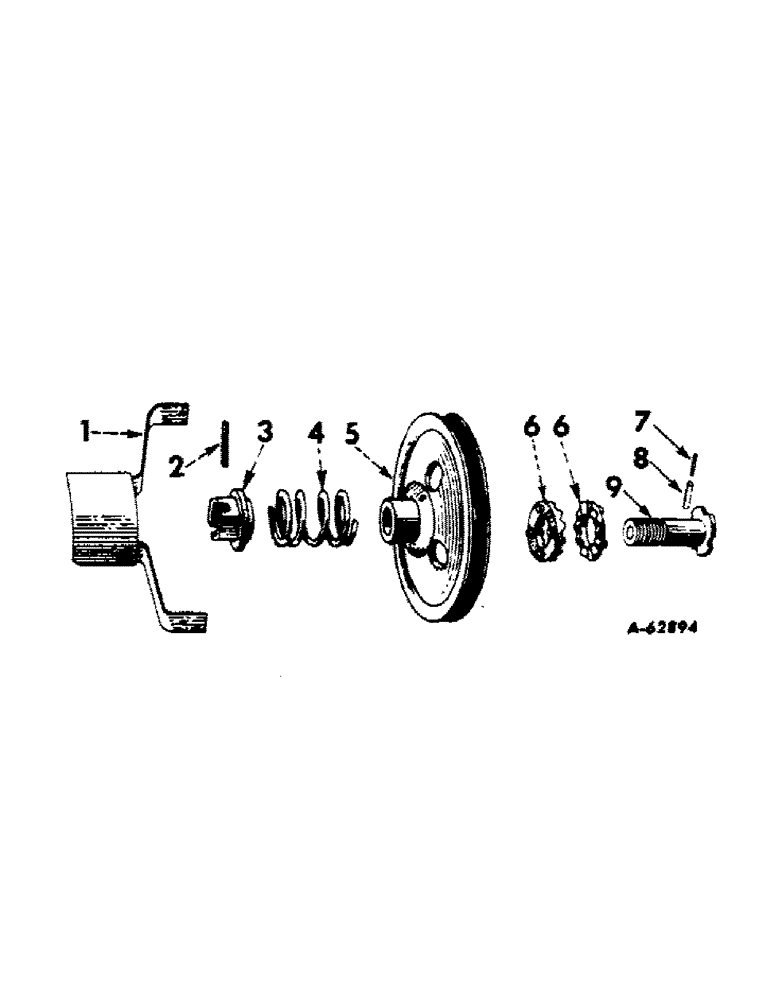

Запчасти Case IH 120 (D-10[A]) - SLIP CLUTCH

1

464885R91

SHIELD, clip clutch, for tractors w/540 RPM-PTO

1шт.

1

473536R91

SHIELD, slip clutch, for tractors w/1000 RPM-PTO

1шт.

NLS

NO LONGER SERVICED

RIVET, 3/16 x 7/16 truss-hd (PN 135286)

4шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, 1/4 x 3/8 in. mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/8 x 2-1/2 in. esna roll

1шт.

3

M2574

NUT

slip clutch

1шт.

4

M32816

SPRING

slip clutch

1шт.

5

M2570

PULLEY

slip clutch, 900 RPM, for tractors w/540 RPM-PTO

1шт.

5

M2571

PULLEY

slip clutch, 1000 RPM, for tractors w/540 RPM-PTO

1шт.

5

473527R1

PULLEY, slip clutch, for tractors w/1000 RPM-PTO

1шт.

6

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

7

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16 x 1-5/8 in. esna roll

1шт.

8

616253R1

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, , ESNA 5/16" x 1 5/8", Slotted

1шт.

9

456573R2

BODY

SLEEVE, slip clutch

1шт.

Q1444

KEY,1/4" Sq x 7/8", Par

sq-parallel 1/4 x 1/4 x 7/8

1шт.
