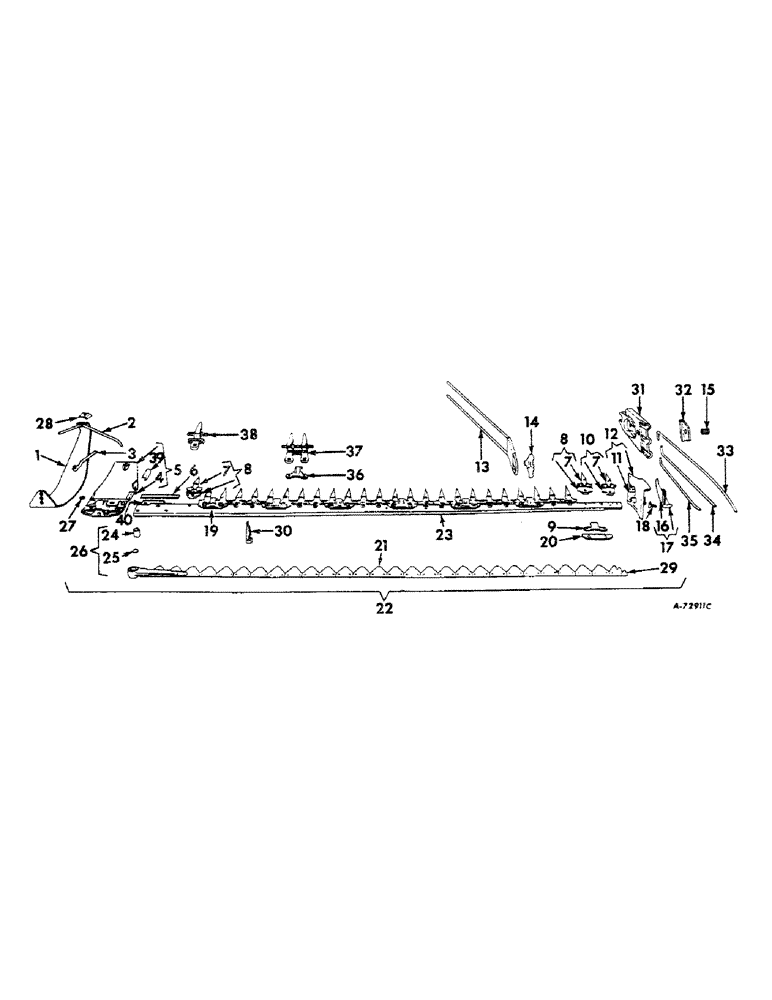

Запчасти Case IH 120 (D-08) - CUTTER BAR

1

462743R1

SOLE

inner shoe, stub type

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT W/NUT, 1/2 x 1-1/4 in. mach C-Z

1шт.

2

458967R1

ROD

inner shoe upper grass

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT W/NUT, 1/2 x 1-1/2 crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

2

462744R1

ROD

inner shoe upper grass, stub type, required for all tractors with category 1, three point hitch

1шт.

3

461281R1

ROD

inner shoe lower grass

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT W/NUT, 1/2 x 1-3/4 crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

458965R1

PLATE

LEDGER PLATE, inner shoe

1шт.

990804R91

RIVET, 3/16 x 1-1/8 in., 54 degree csk-hd, one pound package

2шт.

5

486934R91

SHOE

ASSEMBLY, inner, will work for 458962R11

1шт.

21371R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2 hex. hd cap

1шт.

21398R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2-1/4 hex-hd cap

2шт.

486707R1

WASHER

3шт.

6

458942R1

BAR

SPACER, cutter bar, not for 9 ft. bar

1шт.

7

455634R1

PLATE

LEDGER PLATE, plain serrated, 25 for 7 ft. 33 for 9 ft.

1шт.

19945R1

RIVET, 3/16 x 1-3/8, 74 degree csk-hd cd-pltd, 27 for 7 ft., 34 for 9 ft., use w/heavy guard, 1961-1962

1шт.

14022R1

RIVET

3/16 x 1-3/8, 74 degree csk-hd, use w/forged guard, 1961-1962

27шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 in., 74 degree csk-hd semi tubular, 1963, one pound package

25шт.

486544R1

RIVET

special 1-1/4 long 54 degree csk-hd, use with 484000R11

1шт.

7

457608R1

CUTTER BAR

LEDGER PLATE, cr-pltd serrated, 25 for 7 ft.

1шт.

19945R1

RIVET, 3/16 x 1-3/8 x 74 degree csk-hd cd-pltd, use w/heavy and forged guards, 1961-1962

27шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 in, 74 degree csk-hd semi-tubular, 1963 and since, one pound package

25шт.

8

MC2041Z

GUARD

GUARD W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy, 24 for 7 ft., 32 for 9 ft.

1шт.

8

457676R21

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, forged, 24 for 7 ft.

1шт.

8

484000R11

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, knife, for cutter bar w/3 in. guard spacing

1шт.

8

457743R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy, 24 for 7 ft.

1шт.

8

459184R91

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, forged, 24 for 7 ft.

1шт.

9

MA812

SUPPORT

HOLDER, low arch knife, 6 for 7 ft., 8 for 9 ft., 12 for 7 ft. with single guard

1шт.

10

MC2043Z

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy outer, for 7 ft. and 9 ft.

1шт.

10

458793R21

GUARD W/PLAIN SERRATED LEDGER PLATE, 455634R1, forged outer

1шт.

10

457745R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy outer

1шт.

10

459186R91

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, forged outer

1шт.

11

MA330

LARGE PLATE

LEDGER PLATE, outer shoe serrated, 1959, 7 ft. and 9 ft.

1шт.

11

M330

LEDGER PLATE

outer shoe plain, 1958-1959

1шт.

990720R91

RIVET, 3/16 x 11/16, 54 degree csk-hd, one pound package

1шт.

990717R91

RIVET, 3/16 x 1 in., 54 degree csk-hd, one pound package

1шт.

12

MF729X

SHOE

W/LEDGER PLATE, outer

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, outer shoe

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

458977R1

ROD

outer shoe grass

1шт.

14

458979R1

CLAMP

outer shoe grass rod

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

W/NUT, 3/8 x 1-1/2 mach

1шт.

103417

COTTER PIN

PIN, 1/4 x 3/4 cotter

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

M1015

SPRING

grass rod tension

1шт.

13416R1

BOLT

1/2 x 3 sq-hd mach

1шт.

455388R1

NUT

1/2 in. hex. lock

1шт.

12026R1

WASHER

17/32 x 1-1/4 in. x 16 ga

1шт.

16

MB257

BRACKET, outer shoe sole, order M259X Ref. no. 17

1шт.

17

M259X

SOLE

W/BRACKET, outer shoe

1шт.

RIVET, 1/4 x 3/4 button-hd

2шт.

18

D266X

BOLT AND NUT

W/NUT, outer shoe sole

1шт.

19

MB812

CLAMP

HOLDER, high arch knife

1шт.

20

MC468

PLATE ASSY.

WEARING PLATE, 7 for 7 ft., 9 for 9 ft., 13 for 7 ft. with single guard

1шт.

21

826723C1

KNIFE SECTION

SECTION, plain underserrated, 27 for 7 ft., 35 for 9 ft., replaces ME333

1шт.

990817R91

RIVET

no. 6 x 17/32 x pln o/hds, 47 for 7 ft., 63 for 9 ft., one pound package

1шт.

21

457606R2

KNIFE SECTION

SECTION, cr-pltd underserrated, 27 for 7 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, two pound package

47шт.

21

826725C1

KNIFE SECTION

SECTION, smooth, 28 for 7 ft., 36 for 9 ft., replaces MB333

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 49 for 7 ft., 65 for 9 ft., two pound package

1шт.

21

826724C1

KNIFE SECTION

SECTION, smooth, heavy, 27 for 7 ft., 35 for 9 ft., replaces M3331/2

1шт.

21

826722C1

KNIFE SECTION

SECTION, underserrated, heavy, 27 for 7 ft., 35 for 9 ft., replaces M22831

1шт.

21

457604R2

ASSEMBLY

SECTION, smooth cr-pltd, regular, 27 for 7 ft., 35 for 9 ft.

1шт.

21

457605R2

KNIFE SECTION

SECTION, smooth heavy cr-pltd, 27 for 7 ft., 35 for 9 ft.

1шт.

21

457607R2

KNIFE SECTION

SECTION, underserrated heavy cr-pltd, 27 for 7 ft., 35 for 9 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 47 for 7 ft., 63 for 9 ft., two pound package

1шт.

21

478822R1

SECTION, plain smooth, heavy, wear resistant, 27 for 7 ft., 35 for 9 ft., 1961-1966

1шт.

18649R1

RIVET, no. 6 x 9/16 in. cd-pltd small ov-hd, 47 for 7 ft., 63 for 9 ft.

1шт.

21

478824R1

SECTION, plain underserrated, heavy, wear resistant, 27 for 7 ft. 35 for 9 ft., 1961-1966

1шт.

14751R1

RIVET, no. 6 x 9/16 in. small ov-hd, 47 for 7 ft., 63 for 9 ft. Oval Hd, .203" x 9/16"

1шт.

21

478825R1

SECTION, underserrated cr-pltd, heavy, wear resistant, 27 for 7 ft., 35 for 9 ft., 1961-1966

1шт.

18649R1

RIVET, no. 6 x 9/16 in. cd-pltd small ov-hd, 47 for 7 ft., 63 for 9 ft.

1шт.

22

463180R92

KNIFE

W/PLAIN UNDERSERRATED SECTIONS, 9 ft.

1шт.

22

458968R92

KNIFE ASSY

KNIFE W/PLAIN UNDERSERRATED SECTIONS, 7 ft.

1шт.

22

460937R92

KNIFE

W/CR-PLTD UNDERSERRATED SECTIONS, 7 ft.

1шт.

22

462379R92

KNIFE ASSY

KNIFE W/SMOOTH PLAIN SECTIONS, 7 ft.

1шт.

22

463159R92

KNIFE

W/UNDERSERRATED, heavy, sections, 9 ft.

1шт.

22

463160R92

KNIFE W/SMOOTH PLAIN SECTION, 9 ft.

1шт.

22

462380R92

KNIFE ASSY

KNIFE W/UNDERSERRATED, heavy, sections, 7 ft.

1шт.

22

462381R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 7 ft.

1шт.

22

463182R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 9 ft.

1шт.

22

467748R91

KNIFE

W/SMOOTH SECTIONS, heavy, cr-pltd, 7 ft.

1шт.

22

467749R91

KNIFE

W/UNDERSERRATED SECTION, cr-pltd, heavy, 7 ft.

1шт.

22

472088R91

KNIFE ASSY

KNIFE W/SMOOTH SECTIONS CR-PLTD, 7 ft.

1шт.

22

472089R91

KNIFE

W/SMOOTH SECTIONS CR-PLTD, 9 ft.

1шт.

22

472090R91

KNIFE

W/SMOOTH, heavy, sections cr-pltd, 9 ft.

1шт.

22

472091R91

KNIFE

W/UNDER SERRATED, heavy, sections, cr-pltd, 9 ft.

1шт.

22

478826R91

KNIFE W/SMOOTH PLAIN, heavy, sections, wear resistant, 7 ft., 1961-1966

1шт.

22

478827R91

KNIFE W/SMOOTH PLAIN, heavy, sections, wear resistant, 9 ft., 1961-1966

1шт.

22

478828R91

KNIFE W/CR-PLTD SMOOTH, heavy, sections, wear resistant, 7 ft., 1961-1966

1шт.

22

478829R91

KNIFE W/CR-PLTD SMOOTH, heavy, sections, wear resistant, 9 ft., 1961-1966

1шт.

22

478830R91

KNIFE W/PLAIN UNDERSERRATED, heavy, sections, wear resistant, 7 ft., 1961-1966

1шт.

22

478831R91

KNIFE W/PLAIN UNDERSERRATED, heavy, sections, wear resistant, 9 ft., 1961-1966

1шт.

22

478832R91

KNIFE W/CR-PLTD UNDERSERRATED, heavy, sections, wear resistant, 7 ft.

1шт.

22

478833R91

KNIFE W/CR-PLTD UNDERSERRATED, heavy, sections, wear resistant, 9 ft., 1961-1966

1шт.

23

458974R1

BAR

cutter, 7 ft.

1шт.

23

463183R3

BAR, cutter, 9 ft.

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, short guard, 13 for 7 ft., 17 for 9 ft.

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, long guard, 14 for 7 ft., 18 for 9 ft.

1шт.

NLS

NO LONGER SERVICED

7/16 pln type 5, 1 per bolt

1шт.

24

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife head

1шт.

25

458972R1

PLUG

knife head

1шт.

26

56692C91

PITMAN

HEAD ASSY, knife, replaces 462378R11 and 458969R11

1шт.

14768R1

RIVET, 5-1/2 x 1 pln o/hd Oval Hd, .211" x 1"

9шт.

27

458941R1

SHIM

inner shoe

1шт.

28

461383R1

CLAMP

CLIP, grass rod

1шт.

29

467455R1

KNIFE SECTION

SECTION W/RIVETS, smooth heavy triplet end, cr-pltd

1шт.

29

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated heavy triplet end, cr-pltd

1шт.

29

467457R11

KNIFE SECTION

SECTION W/RIVETS, smooth regular triplet end, cr-pltd

1шт.

29

467458R11

KNIFE SECTION

SECTION W/RIVETS, underserrated regular triplet end, cr-pltd

1шт.

MB133

RIVET

no. 5-1/2 x 9/16 in. oval-hd cd-pltd, one pound package

2шт.

30

469975R3

GAUGE

guard lip

1шт.

31

471475R1

BRACKET

CLAMP, outer she grass rod

1шт.

32

471479R1

CHANNEL

CLIP, outer shoe grass rod

1шт.

381141R1

BOLT, 7/16 x 1-1/2 long sq-nk crg

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16 in. lock

2шт.

33

471476R1

ROD

upper

1шт.

34

471477R1

ROD

center

1шт.

35

471478R1

ROD

lower

1шт.

36

472720R1

HOLDER

double Windrower guard knife, 6 used with 613838R1 guard, 7 ft.

1шт.

37

613838R2

GUARD

double steel Windrower knife, 7 ft., 1961-1965

12шт.

REF: #37 - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

37

483500R3

GUARD

forged steel double knife, 12 for 7 ft., 16 for 9 ft., 1966 and since

1шт.

REF: #37A - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

38

472717R2

GUARD

single steel stud, 27 for 7 ft., 3 for 7 ft. w/double guard and 3 for 9 ft., 2 used with MC2041Z and 484000R11 guard

1шт.

M805X

BOLT AND NUT

SHORT GUARD BOLT W/NUT, used with 7 ft.

1шт.

39

486708R1

SHIELD

inner shoe

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

Q5028

WASHER

15/32 x 1 x 11 ga

1шт.

40

488411R1

SHIM

spacer, or as required

1шт.
