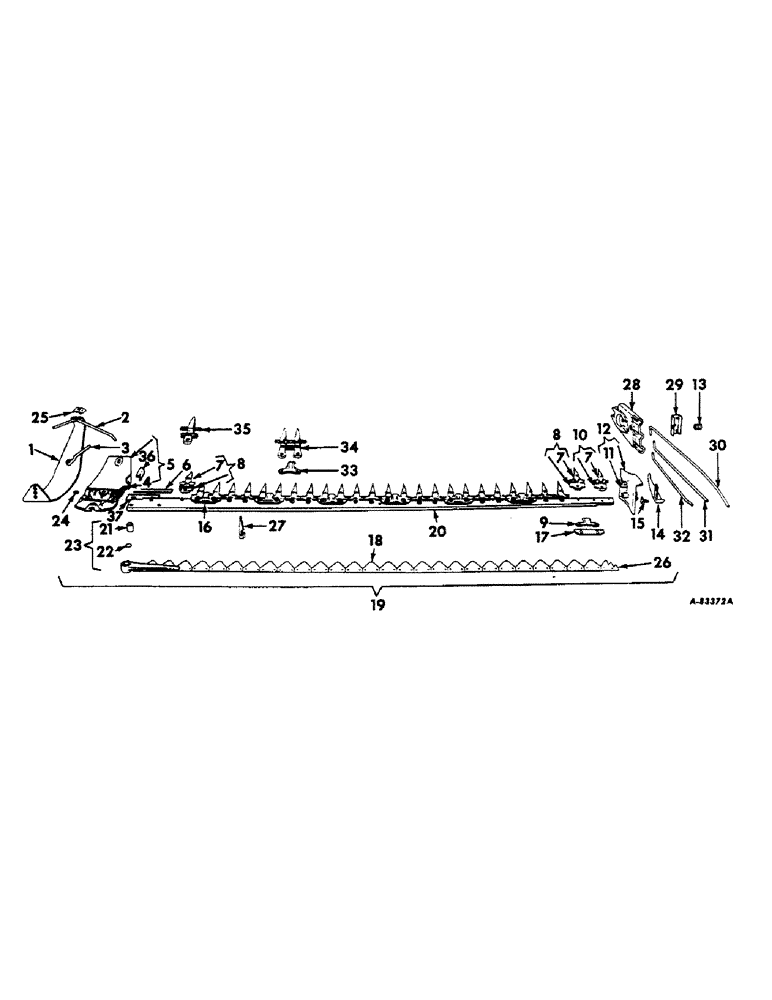

Запчасти Case IH 115 (E-11) - CUTTER BARS

1

458966R1

SOLE

inner shoe, divider type, for Farmall tractors

1шт.

1

462743R1

SOLE

inner shoe, stub type, for International tractors

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2 x 1-1/2 sq-nk crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

2

463404R1

ROD

inner shoe upper grass, for divider sole

1шт.

2

463405R1

ROD

inner shoe upper grass, for stub sole

1шт.

3

461281R1

ROD

inner shoe lower grass

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 sq-nk crg thru sole-shoe & rod

1шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

4

458965R1

PLATE

LEDGER PLATE, inner shoe

1шт.

990804R91

RIVET, 3/16 x 1-1/8 54 deg csk-hd, one pound package

2шт.

5

486934R91

SHOE

ASSEMBLY, inner, will work for 458962R11

1шт.

21371R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2 hex-hd cap

1шт.

21398R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2-1/4 hex-hd cap

2шт.

486707R1

WASHER

3шт.

6

458942R1

BAR

SPACER, cutter bar, used with 7 ft bar

1шт.

7

455634R1

PLATE

LEDGER PLATE, plain serrated, 25 for 7 ft., 33 for 9 ft.

1шт.

7

457608R1

CUTTER BAR

LEDGER PLATE, cr-pltd serrated, 25 for 7 ft. only

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 74 deg csk-hd tubular, one pound package

1шт.

8

MC2041Z

GUARD

GUARD W/PLAIN LEDGER PLATE, heavy, 24 for 7 ft., 32 for 9 ft.

1шт.

8

457676R21

GUARD

W/PLAIN LEDGER PLATE, forged, 24 for 7 ft. only

1шт.

8

457743R92

GUARD

W/CR-PLTD LEDGER PLATE, heavy, 24 for 7 ft. only

1шт.

8

459184R91

GUARD

W/CR-PLTD LEDGER PLATE, forged, 24 for 7 ft. only

1шт.

8

484000R11

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, knife, for cutter bar w/3 in. row spacing

1шт.

9

MA812

SUPPORT

HOLDER, low arch knife, 6 for 7 ft., 8 for 9 ft.

1шт.

10

MC2043Z

GUARD

W/PLAIN LEDGER PLATE, HV outer

1шт.

10

458793R21

GUARD W/LEDGER PLATE, outer forged

1шт.

10

457745R92

GUARD

W/CR-PLTD LEDGER PLATE, outer

1шт.

10

459186R91

GUARD

W/CR-PLTD LEDGER PLATE, outer forged

1шт.

11

MA330

LARGE PLATE

LEDGER PLATE, outer shoe serrated

1шт.

990720R91

RIVET, 3/16S x 11/16 54 deg csk-hd, one pound package

1шт.

990717R91

RIVET, 3/16S x 1 54 deg cks-hd, one pound package

1шт.

M805X

BOLT AND NUT

BOLT W/NUT

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

12

MF729X

SHOE

W/SERRATED LEDGER PLATE, outer

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, outer shoe

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

M1015

SPRING

grass rod tension

1шт.

13416R1

BOLT

1/2 x 3 sq-hd mach

1шт.

455388R1

NUT

1/2-13 hex. lock

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

14

M259X

SOLE

W/BRACKET, outer shoe

1шт.

15

D266X

BOLT AND NUT

W/NUT, outer shoe sole

1шт.

102637

NUT,1/2"-13, G5

1шт.

16

MB812

CLAMP

HOLDER, high arch knife

1шт.

17

MC468

PLATE ASSY.

PLATE, wearing, 7 for 7 ft., 9 for 9 ft.

1шт.

18

826723C1

KNIFE SECTION

SECTION, regular underserrated, 27 for 7 ft., 35 for 9 ft., replaces ME333

1шт.

990817R91

RIVET

no. 6 x 17/32 pln o/hds, 47 for 7 ft., 63 for 9 ft., one pound package

1шт.

18

826724C1

KNIFE SECTION

SECTION, smooth heavy knife, 27 for 7 ft., 35 for 9 ft., replaces M3331/2

1шт.

18

826722C1

KNIFE SECTION

SECTION, underserrated heavy knife, 27 for 7 ft., 35 for 9 ft., replaces M22831

1шт.

18

457604R2

ASSEMBLY

SECTION, regular smooth cr-pltd knife, 27 for 7 ft., 35 for 9 ft.

1шт.

18

457605R2

KNIFE SECTION

SECTION, smooth heavy cr-pltd knife, 27 for 7 ft., 35 for 9 ft.

1шт.

18

457606R2

KNIFE SECTION

SECTION, regular underserrated cr-pltd knife, 27 for 7 ft. only

1шт.

18

457607R2

KNIFE SECTION

SECTION, heavy underserrated cr-pltd, 27 for 7 ft., 35 for 9 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 47 for 7 ft., 63 for 9 ft., two pound package

1шт.

18

478822R1

SECTION, plain hv smooth, 27 for 7 ft., 35 for 9 ft., Serial Range: 1965-1966

1шт.

14751R1

RIVET, no. 6 x 9/16 small ov-hd, 47 for 7 ft., 63 for 9 ft. Oval Hd, .203" x 9/16"

1шт.

18

478823R1

SECTION, cr-pltd heavy smooth, 27 for 7 ft., 35 for 9 ft., Serial Range: 1965-1966

1шт.

18649R1

RIVET, no. 6 x 9/16 cd-pltd small ov-hd, 47 for 7 ft., 63 for 9 ft.

1шт.

18

478824R1

SECTION, plain hv underserrated, 27 for 7 ft., 35 for 9 ft., Serial Range: 1965-1966

1шт.

14751R1

RIVET, no. 6 x 9/16 small ov-hd, 47 for 7 ft., 63 for 9 ft. Oval Hd, .203" x 9/16"

1шт.

18

478825R1

SECTION, cr-pltd hv underserrated, 27 for 7 ft., 35 for 9 ft., Serial Range: 1965-1966

1шт.

18649R1

RIVET, no. 6 x 9/16 cd-pltd small ov-hd, 47 for 7 ft., 63 for 9 ft.

1шт.

19

458968R92

KNIFE ASSY

KNIFE W/REGULAR UNDERSERRATED SECTIONS, 7 ft.

1шт.

19

460937R92

KNIFE

W/CR-PLTD REGULAR UNDERSERRATED SECTIONS, 7 ft.

1шт.

19

462380R92

KNIFE ASSY

KNIFE W/HV UNDERSERRATED SECTION, 7 ft.

1шт.

19

467749R91

KNIFE

W/HV SERRATED SECTION, 7 ft.

1шт.

19

462381R92

KNIFE

W/HEAVY SMOOTH SECTION, 7 ft.

1шт.

19

463159R92

KNIFE

W/UNDERSERRATED SECTION, 9 ft.

1шт.

19

463180R92

KNIFE

W/REGULAR UNDERSERRATED SECTION, 9 ft.

1шт.

19

463182R92

KNIFE

W/HEAVY SMOOTH SECTION, 9 ft.

1шт.

19

467748R91

KNIFE

W/CR-PLTD SMOOTH SECTION, 7 ft.

1шт.

19

472088R91

KNIFE ASSY

KNIFE W/REGULAR SMOOTH CR-PLTD SECTION, 7 ft.

1шт.

19

472089R91

KNIFE

W/REGULAR CR-PLTD SECTION, 9 ft.

1шт.

19

472090R91

KNIFE

W/HV SMOOTH CR-PLTD SECTION, 9 ft.

1шт.

19

472091R91

KNIFE

W/HEAVY UNDERSERRATED CR-PLTD SECTION, 9 ft.

1шт.

19

478826R91

KNIFE ASSY, plain heavy smooth, 7 ft., Serial Range: 1965-1966

1шт.

19

478827R91

KNIFE ASSY, plain heavy smooth, 9 ft., Serial Range: 1965-1966

1шт.

19

478828R91

KNIFE ASSY, cr-pltd heavy smooth, 7 ft., Serial Range: 1965-1966

1шт.

19

478829R91

KNIFE ASSY, cr-pltd heavy smooth, 9 ft., Serial Range: 1965-1966

1шт.

19

478830R91

KNIFE ASSY, plain heavy underserrated, 7 ft., 1965 ot 1966

1шт.

19

478831R91

KNIFE ASSY, plain heavy underserrated, 9 ft., Serial Range: 1965-1966

1шт.

19

478832R91

KNIFE ASSY, cr-pltd heavy underserrated, 7 ft., Serial Range: 1965-1966

1шт.

19

478833R91

KNIFE ASSY, cr-pltd heavy underserrated, 9 ft., Serial Range: 1965-1966

1шт.

14763R1

RIVET,Oval Hd, .203" x 7/8"

no. 6 x 7/8 small ov-hd

1шт.

20

458974R1

BAR

7 ft. cutter

1шт.

20

463183R3

BAR, 9 ft. cutter

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, short guard, 13 for 7 ft., 17 for 9 ft.

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex., 13 for 7 ft., 17 for 9 ft.

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, long guard, 14 for 7 ft., 18 for 9 ft.

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex., 14 for 7 ft., 18 for 9 ft.

1шт.

21

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife head

1шт.

22

458972R1

PLUG

knife head

1шт.

23

56692C91

PITMAN

HEAD ASSY, knife, replaces 462378R11 and 458969R11

1шт.

14768R1

RIVET, 5-1/2 x 1 pln o/hd Oval Hd, .211" x 1"

9шт.

24

458941R1

SHIM

cutter bar tilting

1шт.

25

461383R1

CLAMP

CLIP, upper grass rod

1шт.

26

467455R11

VALVE

SECTION, cr-pltd heavy smooth triplet end

1шт.

26

467456R11

KNIFE SECTION

SECTION, cr-pltd heavy unserrated triplet end

1шт.

26

467457R11

KNIFE SECTION

SECTION W/RIVET, cr-pltd regular smooth triplet end

1шт.

26

467458R11

KNIFE SECTION

SECTION W/RIVETS, cr-pltd regular underserrated triplet end

1шт.

MB133

RIVET

no. 5-1/2 x 5/8 cd-pltd small ov-hd, one pound package

2шт.

27

469975R3

GAUGE

LEDGER PLATE GAUGE & KNIFE PEN TOOL

1шт.

28

471475R1

BRACKET

CLAMP, outer shoe grass rod

1шт.

29

471479R1

CHANNEL

CLIP, outer shoe grass rod

1шт.

381141R1

BOLT, 7/16 x 1-1/2 long sq-nk crg

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach sole to inner shoe

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

30

479765R1

ROD, outer shoe grass upper

1шт.

31

479915R1

ROD, outer shoe grass center

1шт.

32

471478R1

ROD

outer shoe grass lower

1шт.

33

472720R1

HOLDER

double forged guard knife, 6 for 7 ft., 8 for 9 ft., 1965

1шт.

34

613838R2

GUARD

double steel forged knife, 12 used for 7 ft., 16 used 9 ft., 1965

1шт.

REF: #34 - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

34

483500R3

GUARD

forged steel double knife, 12 used for 7 ft., 16 used 9 ft., 1966 and since

1шт.

REF: #34A - 483500R3 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187346A1.

1шт.

35

472717R2

GUARD

single steel stub, 27 for 7 ft., 3 for 7 ft. w/double guard and 3 for 9 ft., 2 used with MC2041Z and 484000R11 guard

1шт.

36

486708R1

SHIELD

inner shoe

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

Q5028

WASHER

15/32 x 1 x 11 ga

1шт.

37

488411R1

SHIM

spacer

1шт.
