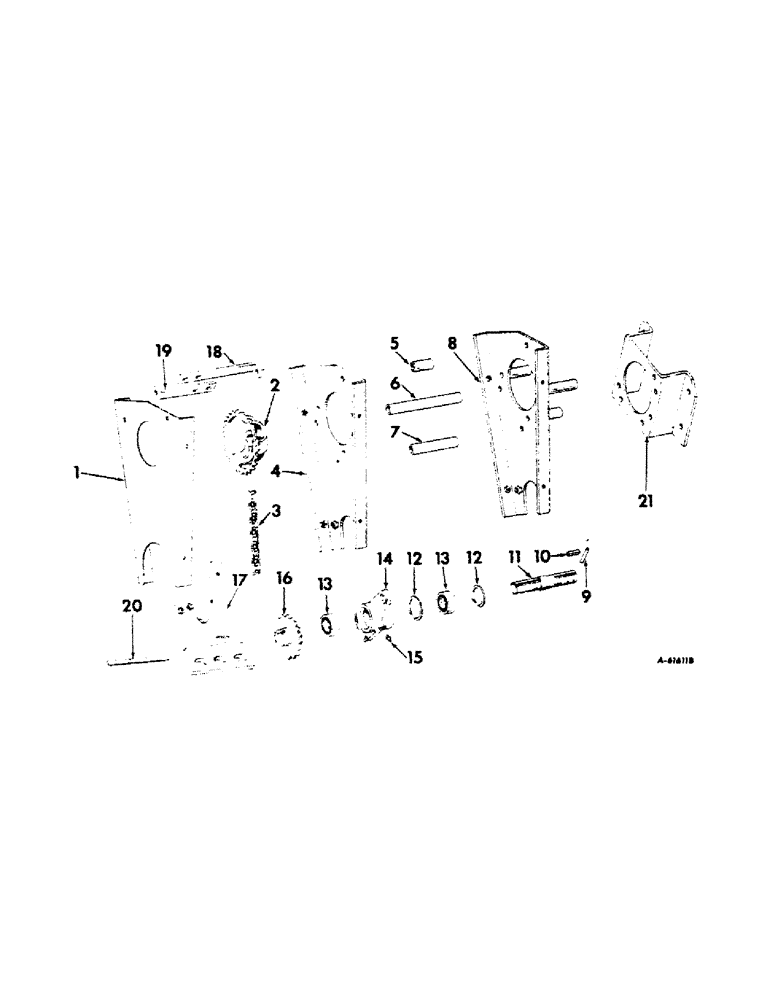

Запчасти Case IH 115 (E-09) - REAR DRIVE UNIT

Parts required when mounting 115 mower on Farmall 340 & 460 tractors w/clutch type independent PTO, Farmall & International 706 tractors w/three point hitch & fixed drawbar, Farmall 504, consists of all parts marked unit A, note A & B

1шт.

Parts required when mounting 115 mower on International 240, Farmall C, super C, 200, 230 & 240 tractors, consists of all parts marked unit B, note C

1шт.

Parts required when mounting 115 mower on I-656 & Farmall super MT-A, 300, 350, 400, 450, 560, 656 & 340 & 460 tractors w/planetary type PTO, consist of all parts marked unit C, note B

1шт.

Parts required when mounting 115 mower on Farmall & International 404 with out hitch & draft control, consist of all parts marked unit D

1шт.

Parts required when mounting 115 mower on Farmall H, super H, M, super M, MD & super MD tractors, consist of all parts marked unit E

1шт.

Parts required when mounting 115 mower on Farmall & International 706 & F-656 tractors w/two-point hitch and/or swinging drawbar, consist of all parts marked unit F

1шт.

Parts required when mounting basic 115 mower on International I-424 tractors w/3 point hitch and/or swinging drawbar, consist of all parts marked unit G

1шт.

Parts required when mounting basic 115 mower on International 504 tractor must be equipped with vertical exhaust, consist of all parts marked unit H

1шт.

1

463396R11

SHIELD ASSY, rear mounting, unit B

1шт.

1

463399R21

SHIELD ASSY, rear mounting, units D, F & G

1шт.

1

463401R21

SHIELD ASSY, rear mounting, unit C & E

1шт.

1

465178R11

SHIELD ASSY, rear mounting, unit A & H

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd, 4, units A thru 5 & F thru H, 2, unit E

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 4, Units A thru D & F thru H, 2, Unit E 1/4"

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap, 2, unit E

1шт.

120377

NUT,3/8" - 16, Gr 5

2, Unit E 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 2 unit E 3/8"

1шт.

2

461402R3

SPROCKET ASSY.

SPROCKET, PTO drive 35T standard equipment

1шт.

2

465176R2

SPROCKET ASSY.

SPROCKET, PTO drive 40T, special

1шт.

179891

SHAFT

SCREW, 1/2-13 x 2-1/2 hex-hd cap

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

CHAIN, PTO drive roller, use 76 links of 5/8 pitch roller chain from a 10 ft. roll marked 1791D, one connecting link 1310D

1шт.

4

465177R31

PLATE ASSY, rear mounting, unit A & H

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap, 4 unit A, 3 unit H

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap, 2 unit A, note D

1шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 C-Z hex-hd cap, unit A, note D

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 x 7 ga, unit A, note D

2шт.

4

463400R21

PLATE ASSY, rear mounting, unit C

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

5

458806R1

SPACER, pipe

3шт.

6

463402R1

SPACER, pipe

3шт.

19456R1

BOLT, 1/2-13 x 9-1/2 hex-hd mach

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

6

M93450

SPACER, 1/2 x 1-1/4 pipe, for mounting 656 tractor

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

7

463403R1

SPACER, pipe

3шт.

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1/2-13 x 7 hex-hd mach

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

8

463393R11

PLATE

ASSY, rear mounting, unit B

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

6шт.

8

463397R41

PLATE ASSY, rear mounting, units D, F & G

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap, 3 units D & F

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 C-Z hex-hd cap, 3 unit G

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

9

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, , ESNA 3/16" x 2", Slotted

1шт.

9

576482R1

LOCK PIN,5/16" x 2", Slotted

ESNA 5/16" x 2", Slotted

1шт.

10

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1 sq

2шт.

11

464253R1

SHAFT

rear drive

1шт.

12

360936R1

RING

int rear drive brg retaining

2шт.

13

ST211

BEARING, BALL,30 mm ID x 62 mm OD x 16 mm

BEARING, rear drive ball

2шт.

14

463359R1

HOUSING

rear drive

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

15

16884R1

FITTING, 1/8-27 pft 65 deg vented lub

1шт.

16

464251R11

SPROCKET ASSY.

SPROCKET ASSY, driven

1шт.

17

464239R92

PLATE ASSY, rear mounting, unit E

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

1шт.

280954

NUT,3/4"-10, G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

18

464245R1

SUPPORT, long, 2 unit E

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

464243R1

SUPPORT, intermediate, 2 unit E, use for Farmall H series tractors only

1шт.

19

464244R1

SUPPORT, short, 2 unit E, use for Farmall H series tractors only

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

465174R1

SHIM, drawbar, 3 unit E

1шт.

21

466796R1

PLATE, rear mounting adapter, unit D

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap

2шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 hex-hd cap

1шт.

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 x 7 ga

2шт.

625415R1

SPACER, 3 units B & D

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

366112

SPARE PART

WASHER, 25/32 x 1-1/4 x 11 ga C-Z

3шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

3 unit B, not for 240 tractors Hex, 3/4"-10 x 1 1/2", G5

1шт.

463386R3

SPACER

LH mounting, units B & D

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

463398R1

SPACER

rear mounting plate, 3 unit G

1шт.

475426R1

SPACER, 2 units A & F

1шт.

663393R1

SPACER

units A & F

1шт.
