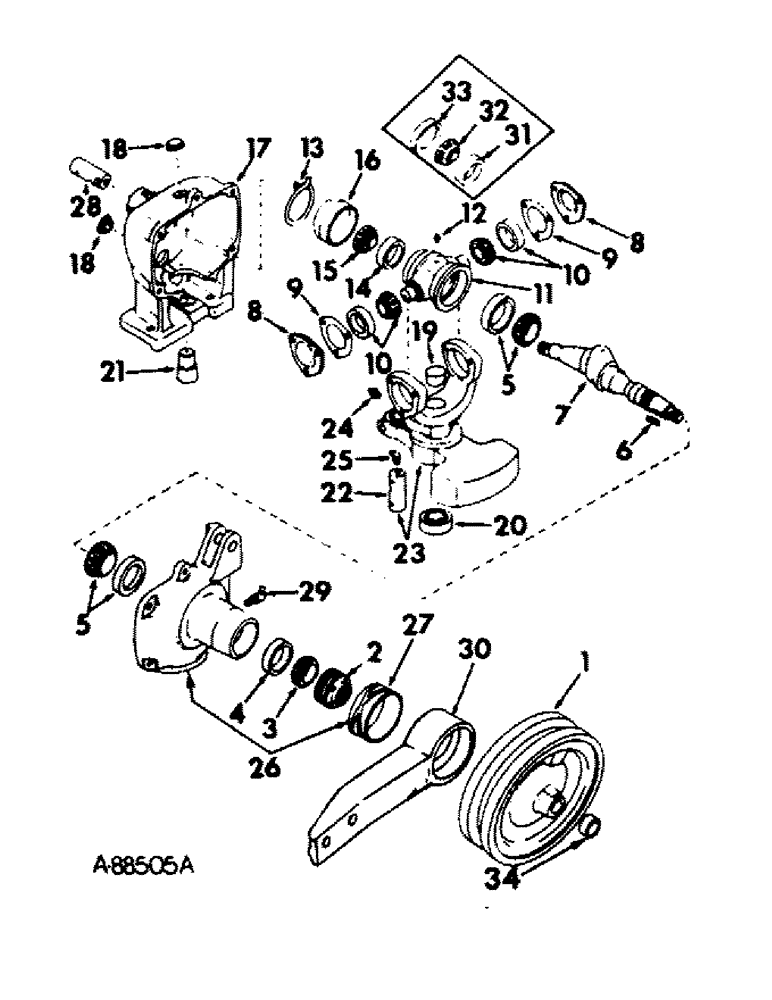

Запчасти Case IH 115 (E-05) - FLYWHEEL PULLEY AND BALANCED HEAD HOUSING

467217R92

HOUSING

HEAD ASSY, balanced, order 478785R92, consists of all unmarked parts plus those marked unit A

1шт.

478785R92

HOUSING

HEAD ASSY, balanced, consists of all unmarked parts plus those marked unit B

1шт.

1

458944R1

PULLEY

flywheel, unit A

1шт.

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 sq-parallel

1шт.

1

478787R11

PULLEY

W/WASHER 478789R1, flywheel, unit B

1шт.

478789R1

WASHER

pulley

1шт.

2

458945R1

NUT

lock & seal, unit A

1шт.

2

478788R1

LOCK NUT

lock, unit B

1шт.

There is no seal, although there was one previously; now the nut itself acts as a seal

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, housing cone

1шт.

4

651817R1

BEARING CUP

BEARING, housing cup

1шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

5

459912R91

BEARING ASSY,1.3755" ID x 2.5635" OD x 0.74"

BEARING W/SEAL & CUP, housing cone, unit A

1шт.

5

478790R91

BEARING ASSY,38.1mm ID x 72.02mm OD x 20.64mm W

BEARING W/SEAL & CUP, housing cone, unit B

2шт.

6

Y24430

KEY,1/4" Sq x 1 1/2", Par

1/4 x 1-1/2 sq-parallel, unit A

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

Unit B 1/4" Sq x 1", Par

1шт.

7

458943R31

KIT

SHAFT ASSY, wrist-action, consists of Ref. nos. 2, 5, 31, 32 & 33, for service replacement also order package, 479342R94, unit A

1шт.

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

21/32 x 1-1/2 x 3/16

1шт.

254485R1

NUT

5/8-18 hex.

1шт.

254771R1

NUT

3/4-10 hex.

1шт.

7

478786R11

SHAFT

ASSY, wrist-action, consists of Ref. nos 2 & 5, for service also order package, 479342R94, unit B

1шт.

254771R1

NUT

3/4-10 hex.

2шт.

21211R1

WASHER

.781 x 1.500 x .164

1шт.

8

458958R1

COVER

CAP, yoke brg

2шт.

465491R1

BOLT

SCREW, 1/4 x 1 nylok hex-hd cap

6шт.

9

458955R1

SHIM,50.8mm ID x 76.2mm OD x 0.05mm Thk

yoke bearing cap .002

2шт.

9

458956R1

SHIM

yoke bearing cap .006, or as required

6шт.

9

458957R1

SHIM,50.8mm ID x 63.5mm OD x 0.25mm Thk

yoke bearing cap .010, or as required

6шт.

10

458952R91

ROLLER BEARING

W/SEAL, balance yoke roller

2шт.

11

458953R3

HOUSING

wrist-action shaft

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

12

13019R1

FITTING

1/8-27 ptf str vented lub

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

13

317596R1

HOSE CLAMP,#42, 2 5/8", Spring

CLAMP, bearing housing cap

1шт.

14

371883R1

BEARING CUP

Balanced head housing

1шт.

15

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Balanced head housing

1шт.

16

458954R1

CYLINDER END CAP

CAP, crankshaft brg housing

1шт.

461678R1

SEAL

SEALER TAPE

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

179887

CABLE

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

181440

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

SCREW, 1/2 x 20 x 2-1/2 hex-hd cap, front hinge pin clamp bolt

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

1шт.

18

464197R1

PLUG

button, 1 used on 458936R1 only

2шт.

19

458993R2

PLUG

balance yoke grease chamber cork

1шт.

20

461188R91

BEARING

balance yoke pivot stud, order 467146R91

1шт.

20

467146R91

BEARING ASSY,24.99mm ID x 52mm OD x 15mm W

balance yoke pivot stud

1шт.

21

458961R2

STUD

balance yoke pivot

1шт.

102615

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

SCREW, 1/2 x 1/2 hex. socket cup-pt set

1шт.

462800R1

WASHER

felt

1шт.

22

458973R4

PIN,25.41mm OD x 77.72mm L

knife

1шт.

23

487048R11

YOKE

ASSY, balance, replaces 458960R91

1шт.

336132R1

BOLT,1/2" - 20 x 2 3/8", Gr 8

SCREW, 1/2-20 x 2-3/8 cap

1шт.

25-118

NUT,1/2"-20, G5

1/2-20

1шт.

24

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 ptf str lub

1шт.

25

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 ptf 30 deg angle lub

1шт.

26

478797R91

HOUSING

W/BUSHING, balanced head front

1шт.

519416R1

HEADED PIN,3/4" x 2 5/16"

PIN, 3/4 x 2-5/16 std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

27

467215R1

BUSHING,82.44mm ID x 87.15mm OD x 41.15mm L

housing

1шт.

28

458940R1

SHAFT

PIN, front hinge

1шт.

32-2032

COTTER PIN,5/16" x 2"

PIN, SPLIT (COTTER), 5/16" x 2"

1шт.

Q121

WASHER

1-9/32 x 2 x 16 ga

1шт.

29

461252R1

FITTING

1/8 30 deg angle lub

1шт.

30

Not used in this application

1шт.

31

458925R91

OIL SEAL

brg housing oil, unit A

1шт.

32

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, roller cone, unit A

1шт.

33

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Roller, unit A

1шт.

34

222689C1

HOSE

balanced head drive shaft shield

1шт.

461851R1

BLOCK

run-out check, for use during servicing or overhauling of balance head

1шт.

479342R94

KIT

1шт.

PACKAGE, wrist-action shaft service, consists of (1) bushing 458971R1, (1) cap 458954R1, (1) fitting 109459, (1) key Q53, (1) nut 254485R1, (1) nut 103028, (1) nut 271505, (2) nut 254771R1, (1) pin 458973R4, (6) bolt 26329R1, (1) instructions (NSS), (1) bolt 336132R1, (1) bolt 181407, (1) product graphic (NSS), (2) shim 458955R1, (6) shim 458956R1, (6) shim 458957R1, (2) washer 543115R1, (1) washer 21211R1, (2) washer 462799R1, (1) washer 585556R1

1шт.
