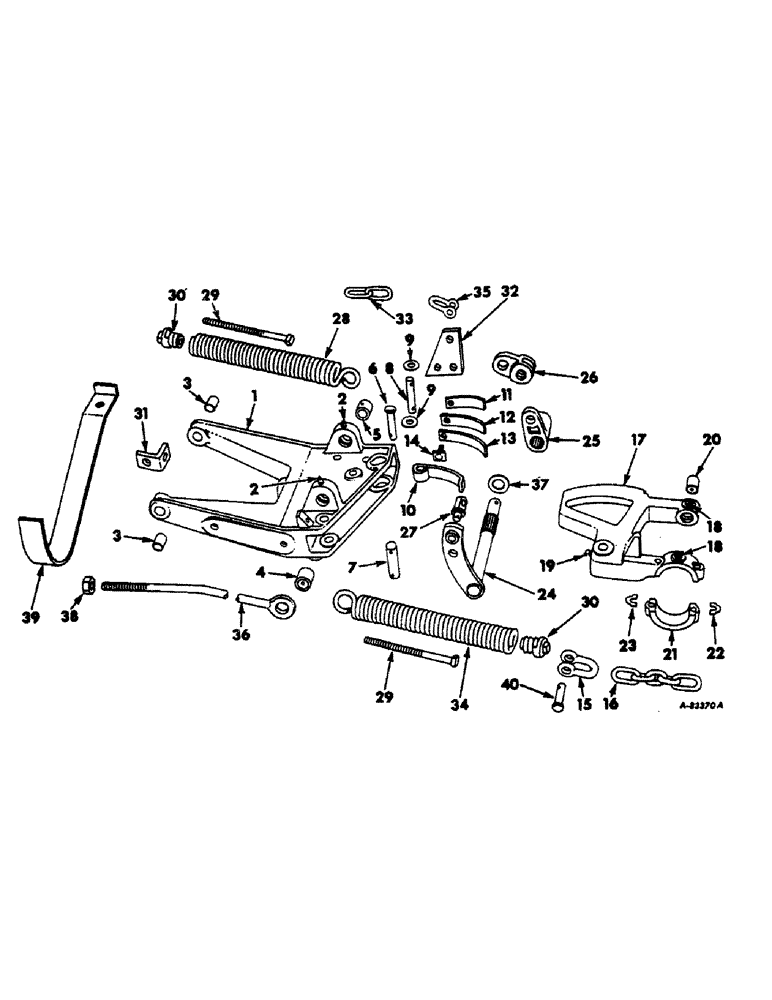

Запчасти Case IH 115 (E-04) - COUPLING BAR W/SHOE HINGE

1

479704R91

BAR W/BUSHINGS ASSY, coupling

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

3

463322R1

BUSHING

hinge pin

2шт.

4

582305R1

BUSHING

rockshaft front

1шт.

5

479705R1

BUSHING, rockshaft rear

1шт.

6

463327R1

PIN

break-away stop

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

7

463329R1

PIN

break-away pivot

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, , ESNA 5/16" x 1 3/4", Slotted

1шт.

576484R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, , ESNA, insert into roll pin 17069R1 3/16" x 1 3/4", Slotted

1шт.

8

463330R1

SHAFT

ROLLER, break-away

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

9

522473R1

WASHER

49/64 x 1-3/4 x 1/8

2шт.

10

524356R1

SPRING

trip

1шт.

11

524452R1

VALVE SPRING

SPRING, upper helper

1шт.

12

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

13

524454R1

VALVE SPRING

SPRING, lower helper

1шт.

14

463331R11

STUD

SCREW ASSY, spring adjusting

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 esna stop

1шт.

15

463412R1

CLEVIS, lift chain

1шт.

16

463339R1

CHAIN (AG)

CHAIN, lift, 5 links

1шт.

17

467275R11

HINGE

W/BUSHING, inner shoe

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

19

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 ptf 90 deg angle lub

1шт.

20

575789R1

BUSHING

front hinge

1шт.

21

467276R1

CAP

hinge bearing

1шт.

22

463334R1

SHIM

hinge cap .0105

6шт.

23

463335R1

SHIM

hinge cap .0209

4шт.

24

479706R11

ROCKSHAFT ASSY

1шт.

25

479708R1

ARM, lower cylinder

1шт.

26

479709R1

ARM, upper cylinder

1шт.

519416R1

HEADED PIN,3/4" x 2 5/16"

PIN, 3/4 x 2-5/16 std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

455183R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

27

479711R11

PIVOT, rod

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

16066R1

WASHER

25/32 x 1-1/2 x 16 ga

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

28

479712R1

SPRING, outer shoe balancing

1шт.

29

479713R1

BOLT, 5/8 x 12 C-Z sq-hd mach

2шт.

125550

NUT, 5/8-11 C-Z sq

2шт.

552416R1

WASHER, 21/32 x 1-1/4 x 22 ga

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

30

457528R1

PLUG

spring

2шт.

31

479714R1

ANGLE, stand

1шт.

137639

SCREW, 1/2-13 x 2-1/4 sq-hd cup-pt set

1шт.

102637

NUT,1/2"-13, G5

1шт.

32

479715R1

BRACKET, lift spring

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2 x 1-1/2 sq-nk crg

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

464424R1

PIN, 1/2 x 1-15/16 C-Z std-hd

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

33

479716R91

CHAIN, spring 2 links

1шт.

34

479717R1

SPRING, extension

1шт.

35

455369R2

CLEVIS

1шт.

36

481042R1

BOLT, tension eye

1шт.

102639

NUT,5/8"-11, G5

2шт.

19646R1

LOCK NUT,3/4"-10

NUT, 3/4-10 esna elastic stop

1шт.

665318R1

PIN, 1 x 4-7/8 std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

584253R1

WASHER

21/32 x 1-3/4 x 3 ga

1шт.

37

479710R1

WASHER,1 7/16" x 2 3/4" x .150", HDN

2-3/4 x 1-9/64 x 1/8

1шт.

38

479730R1

NUT, 3/4-10 tension rod hex

1шт.

39

468233R1

DEFLECTOR, hay

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex. jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

446521

WASHER,3/4" x 2 7/8" x .165"

13/16 x 2-7/8 x 8 ga C-Z

1шт.

40

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN, 3/4 x 2-3/4 C-Z std-hd

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.
