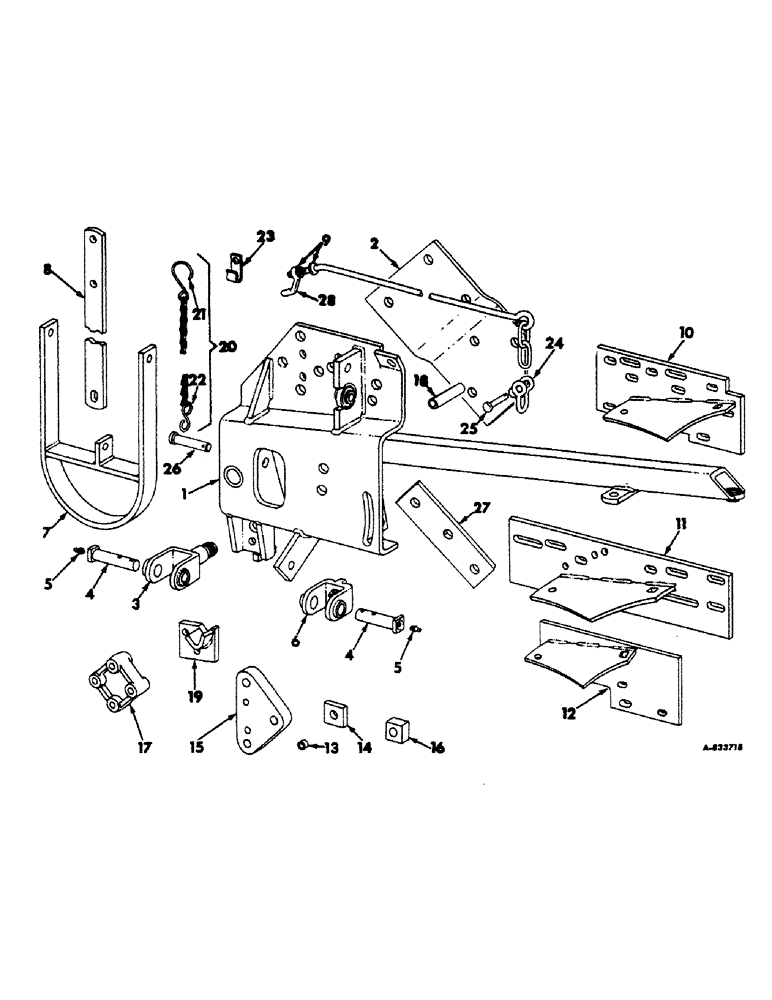

Запчасти Case IH 115 (E-02) - SIDE MTG PLATE & STAND

Parts required when mounting basic 115 mower on Farmall C, M, MD & super C, M, MD & 200, 230, 240, 340, 404, 460, 504, 560 & I-240 & 404 tractors, consists of all unmarked parts plus those marked unit A

1шт.

Parts required when mounting basic 115 mower of Farmall H, MTA, super H, 300, 350, 400, 450, 656, 706 & I-656 & I-706 tractors, consists of all unmarked parts plus those marked unit B

1шт.

Parts required when mounting 115 mower on 404 tractors w/o hitch & draft control, consists of all unmarked parts plug those marked unit C

1шт.

Parts required when mounting basic 115 mower on I-424 tractors w/ 3-pt hitch and/or swinging drawbar, consists of all unmarked parts plus those marked unit D

1шт.

Parts required when mounting basic 115 mower on I-504 tractors w/ vertical exhaust, consists of all unmarked parts plus those marked unit E

1шт.

1

479682R91

PLATE ASSY, side mounting

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

1шт.

18735R1

BOLT

3/4-10 x 3-3/4 C-Z sq-nk crg

1шт.

462248R1

LOCK NUT

3/4-10 hex. lock

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

280954

NUT,3/4"-10, G5

1шт.

2

476970R1

BRACKET, mounting plate, unit D

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

3шт.

19827R1

BOLT,Hex, 5/8" - 11 x 8", Gr 5

SCREW, 5/8-11 x 8 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

3шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

6шт.

19646R1

LOCK NUT,3/4"-10

NUT, 3/4-10 esna stop

3шт.

3

479698R1

PIVOT, tilting rear

1шт.

243

WASHER, 1-17/32 x 2 x 16 ga

1шт.

126A

WASHER

1-17/32 x 2 x 11 ga

1шт.

4647D

NUT, 1-3/8-12 slt hex. jam

1шт.

103402

PIN

5/32 x 2-1/2 cot.

1шт.

4

479719R11

PIN ASSY, tilting pivot

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 drive type str lub

2шт.

6

479699R1

PIVOT, tilting front

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd cap

1шт.

23471S

WASHER

25/32 x 1-1/2 x 7 ga

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

1шт.

7

479700R11

STAND ASSY

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 C-Z hex-hd cap

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 C-Z hex-hd cap

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

3шт.

8

479703R1

BAR, lock

1шт.

671034R1

PIN

1/2 x 1-1/2 C-Z std-hd

1шт.

520175R1

CLIP

PIN, qa cot.

1шт.

9

479695R11

ROD, stay

1шт.

10

479723R91

PLATE ASSY, cam, unit A

1шт.

11

479720R91

PLATE ASSY, cam, unit B

1шт.

12

481372R91

PLATE ASSY, cam, units D & E

1шт.

13

479725R1

SPACER, cam plate, note A

2шт.

13

568385R1

SPACER, cam plate, note B

1шт.

14

563747R2

SPACER, cam plate, notes A, B & C

3шт.

15

479726R1

SPACER, cam plate, note C

1шт.

16

625415R1

SPACER, for attaching cam plate onto F & I-240 tractors

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

366112

SPARE PART

WASHER, 25/32 x 1-1/4 x 11 ga C-Z

3шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

Not for Farmall 240 tractors Hex, 3/4"-10 x 1 1/2", G5

3шт.

16

463726R1

SPACER, cam plate, unit D

3шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

3шт.

366112R1

WASHER

SCREW, 25/32 x 1-1/4 x 11 ga C-Z

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

16

481374R1

SPACER, cam plate, unit E

3шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd cap

3шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

17

463386R3

SPACER

LH mounting, for attaching cam plate onto F & I-240 tractors

1шт.

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 C-Z hex-hd cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

18

481375R1

TUBE, side plate, unit E

1шт.

20575R1

BOLT,Hex, 3/4" - 10 x 8", Gr 5

SCREW, 3/4-10 x 8 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

18

476971R1

SPACER, side plate, unit D

1шт.

19

479727R91

BRACKET ASSY, lift

1шт.

480310R1

BOLT, 1/2 x 1-5/8 C-Z hex-hd dld

1шт.

121592R1

NUT, 1/2-13 C-Z slt hex.

1шт.

179374R1

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

1шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

20

479731R1

CHAIN LESS HOOKS

1шт.

21

479783R1

HOOK, large S

1шт.

22

479784R1

HOOK, small S

1шт.

23

463380R1

CLIP

FASTENER, stay rod

1шт.

464209R1

SPACER

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4 C-Z hex-hd cap

1шт.

134238R1

WASHER

11/32 x 11/16 x .051 C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

455369R2

CLEVIS

1шт.

25

464624R1

HEADED PIN,1/2" x 1 15/16"

PIN, 1/2 x 1-15/16 C-Z std-hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

26

21416R1

PIN

3/4 x 5-1/8 C-Z std-hd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

27

481376R1

BAR, side plate, unit E

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

28

M487

CRANK

stay rod

1шт.
