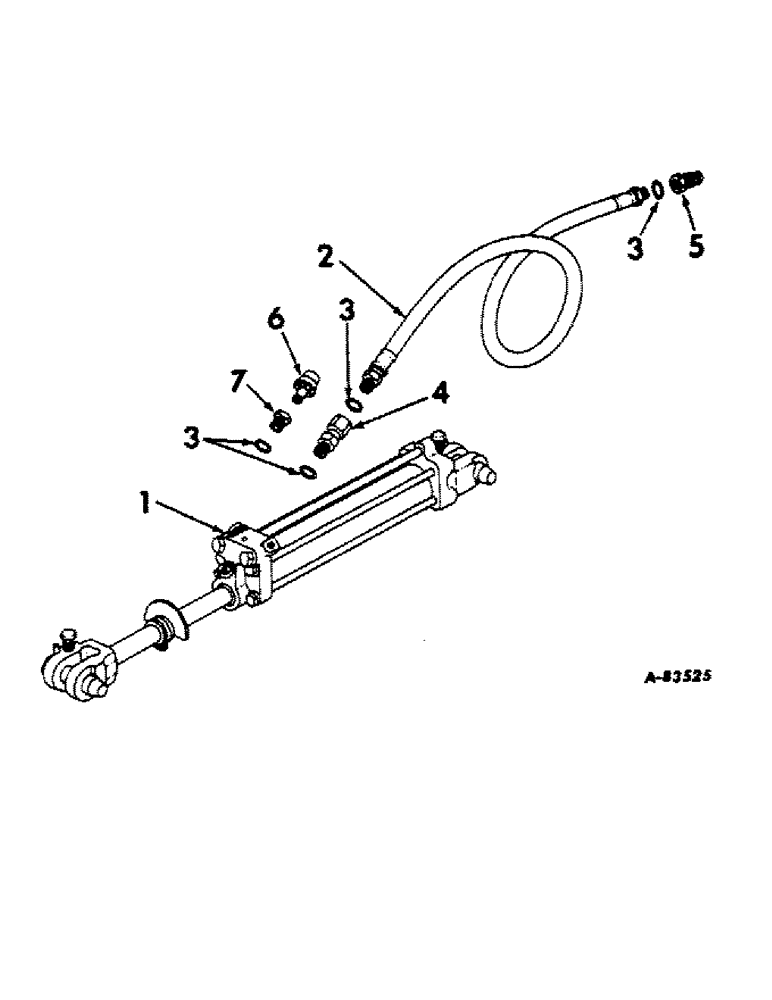

Запчасти Case IH 115 (E-15) - HYDRAULIC EQUIPMENT

1

371291R95

CYLINDER

ASSY, 2-1/2 x 8 in. double acting hydraulic, order cylinder assy, 145353C91, two adapters, 1252129C1 and two o-rings 570828R1, for components see list of parts under details of hydraulic cylinders in section P

1шт.

1

371292R94

CYLINDER

ASSY, 3-1/2 x 8 in. double acting hydraulic, order cylinder assy, 1263474C91, two adapters, 1252129C1 and two o-ring 570828R1, for components see list of parts under details of hydraulic cylinders in section P

1шт.

1

381854R93

CYLINDER

ASSY, 3 x 8 in. double acting hydraulic, for components see list of parts under details of hydraulic cylinder in section P

1шт.

2

664580R91

HOSE

hyd 42 in. long, for Farmall H, super H, M, super M, 230, 240, 404, 340, 504 & I-504 tractors

1шт.

2

461186R91

HOSE, hyd 40 in. long, for International 404 & 424 tractors

1шт.

2

372433R91

HOSE, hyd 60 in. long, for Farmall MTA, 300, 400, 350, 450, 460, 560, 656, 706 and International 424 & 706 tractors, hyd hose for Farmall C, super C & 200 tractors use the hoses provided with remote control

1шт.

2

526204R91

HOSE

hyd 36 in. long for International 240 tractors

1шт.

2

461166R91

HOSE ASSY.

HOSE, hydraulic 100 in. long, for International 424 tractor

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

3шт.

4

526251R91

UNION

RESTRICTOR, w/1/16 orifice

1шт.

5

395149R1

QUICK MALE COUPLING

COUPLING, str thd self-sealing for all tractors, except Farmall C, super C and 200

1шт.

6

60836H

BREATHER

1шт.

7

462755R1

ADAPTER

1шт.

444033

ADAPTER

BUSHING, auto, pipe reducer 1/2 x 1/4, for Farmall C, super C and 200 tractors

2шт.

3069347R1

CONNECTOR, 37 deg flared tube, International 424 tractors only

1шт.

9402749

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, Fem Pipe

CONNECTOR, hyd 37 deg 5/8 flared tube, for Farmall C, super C and 200 tractors

2шт.
