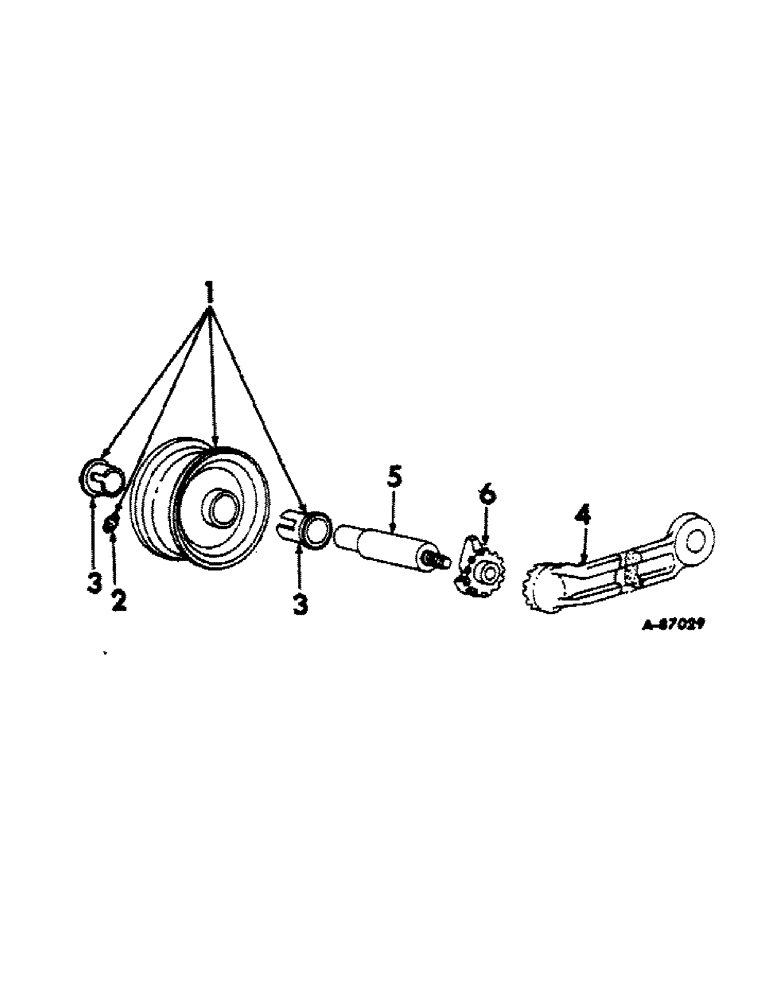

Запчасти Case IH 115 (E-13[A]) - OUTER SHOE WHEEL

1

453124R93

WHEEL ASSY, semi-pneumatic tire

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28NF self-tapping str lub

1шт.

3

481892R1

BUSHING

BEARING, wheel

2шт.

4

M2452X

ARM ASSY, outer shoe wheel

1шт.

Q584

BELT, 1/2-13 x 1-7/8 special hd

1шт.

102637

NUT,1/2"-13, G5

1шт.

5

M32048

STUD

wheel

1шт.

M153M

NUT

5/8 horned

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

Z852

ADJUSTER

WASHER, wheel adjustable

1шт.

53324H

WASHER

21/32 x 1-5/8 x 11 ga

1шт.

Q132

WASHER

1-5/32 x 1-3/4 x 22 ga

1шт.
