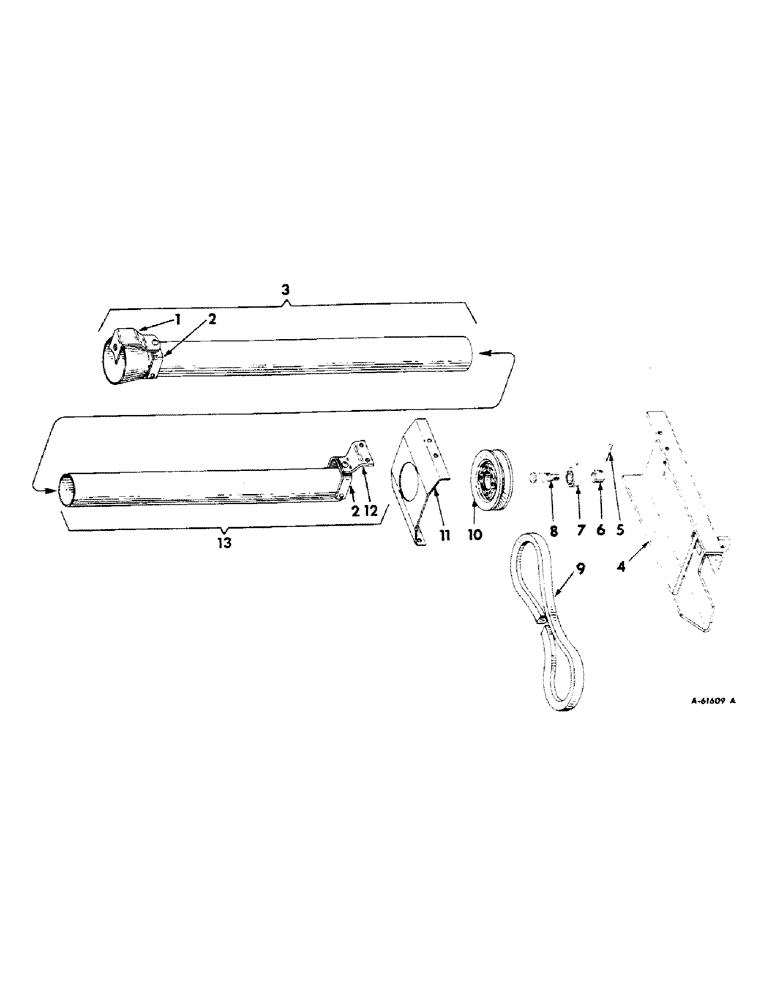

Запчасти Case IH 1110 (M-09) - FRONT POWER DRIVE

1

463349R1

BRACKET, rear universal joint shield

1шт.

180178

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

463345R1

YOKE

HOLDER, universal joint shield

2шт.

23012R1

RIVET, 3/8 x 11/16 C-Z truss-hd

2шт.

3

481063R11

SHIELD

ASSEMBLY, rear universal joint, will work for 463347R11

1шт.

23003R1

RIVET, 1/4 x 1/2 C-Z truss-hd solid

2шт.

21871R1

WASHER

9/32 x 1 x 18 ga C-Z

2шт.

3

464236R11

SHIELD

ASSEMBLY, rear universal joint, for Farmall and International super A, 100, 130 and 140 tractors

1шт.

23003R1

RIVET, 1/4 x 1/2 C-Z truss-hd solid

2шт.

21871R1

WASHER

9/32 x 1 x 18 ga C-Z

2шт.

4

477806R21

SHIELD

front drive mounting, will work for 464246R11

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 C-Z sq-nk crg

2шт.

20511R1

WASHER, 5/8 znp med lock

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

23020R1

SCREW, 1/2-13 x C-Z sq-hd cup-pt set

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

5

22958R1

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

1шт.

6

464249R1

SPACER

bearing

1шт.

7

464267R91

BALL BEARING

drive pulley ball

1шт.

8

464247R1

STUD

SPINDLE, front drive

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex. jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

9

486543R2

BELT

Drive

1шт.

10

464250R1

PULLEY

drive

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

11

463370R1

SHIELD

front joint

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

463346R1

BRACKET, front universal joint shield

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 in. C-Z cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

463344R11

SHIELD

ASSEMBLY, front universal joint

1шт.

106898

RIVET

1/4 x 1/2 in. truss-hd

2шт.

21871R1

WASHER

9/32 x 1 x 18 ga C-Z

2шт.
