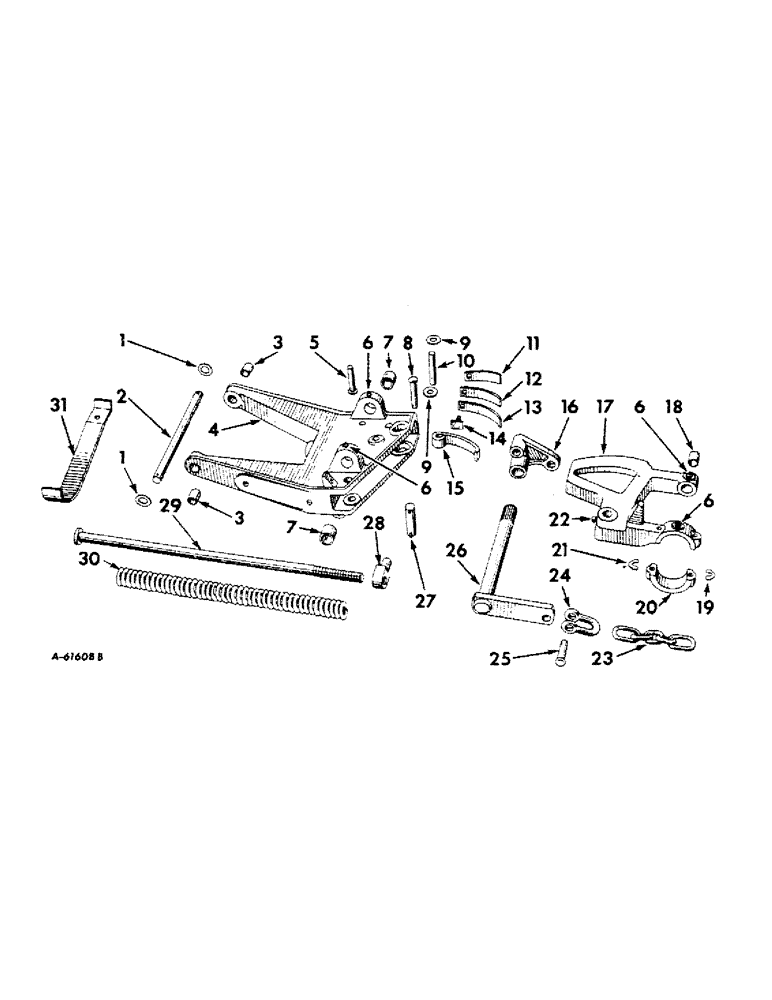

Запчасти Case IH 1110 (M-06) - COUPLING BAR, SHOE HINGE AND BALANCING SPRING

1

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

2шт.

2

491538R1

SHAFT

coupling bar hinge

1шт.

605936R1

SPACER

1 x 3.375 std pipe

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

3

463322R1

BUSHING

hinge shaft

2шт.

4

463325R21

BAR

W/BUSHING ASSY, coupling

1шт.

110454

1/2-13 x 2 sq-hd cup-pt set

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

5

21667R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-1/2 znp std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

7

582305R1

BUSHING

rockshaft

2шт.

8

463327R1

PIN

break-away stop

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

9

522473R1

WASHER

roller retaining, 49/64 x 1-3/4 in. x 1/8 in., hardened

2шт.

10

463330R1

SHAFT

ROLLER, break-away

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

11

524452R1

VALVE SPRING

SPRING, upper helper

1шт.

12

524453R1

VALVE SPRING

SPRING, middle helper

1шт.

13

524454R1

VALVE SPRING

SPRING, lower helper

1шт.

14

463331R11

STUD

SCREW ASSEMBLY, spring adjustable

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT, 1/2 in., UNF stop

2шт.

15

465868R1

SPRING

trip

1шт.

16

463338R2

LEVER

ARM, hydraulic cylinder

1шт.

17

487049R11

HINGE

W/BUSHING, balanced hd housing

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 hex-hd cap

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

18

487050R1

BUSHING,31.83mm ID x 34.85mm OD x 28.45mm L

front hinge

2шт.

19

463334R1

SHIM

hinge cap, 31 ga

6шт.

20

467276R1

CAP

hinge brg

1шт.

21

463335R1

SHIM

hinge cap, 25 ga.

4шт.

22

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 in. 90 degree elbow lubrication

1шт.

23

463339R1

CHAIN (AG)

CHAIN, lift, 5 links

1шт.

24

463412R1

CLEVIS, lift chain

1шт.

25

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN, 3/4 x 2-3/4 C-Z std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

26

463336R11

ROCKSHAFT

ASSEMBLY

1шт.

22947R1

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

27

463329R1

PIN

break-away pivot

1шт.

22945R1

Pin, Split (Cotter), 5/16" x 1 1/2" 5/16" x 1 1/2"

1шт.

21825R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

22969R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

1шт.

28

464335R1

EYE TRUNNION, balance spring shaft

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

29

464333R11

SHAFT, balance spring

1шт.

426899

NUT,Jam, 1"-8, G5

1 in. C-Z jam

3шт.

30

464079R1

SPRING

balance

1шт.

31

468233R1

DEFLECTOR, hay, for Farmall tractor

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW, 3/4 x 4-1/4 C-Z cap

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 in. C-Z

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

446521

WASHER,3/4" x 2 7/8" x .165"

13/16 x 2-7/8 x 8 ga C-Z

1шт.
