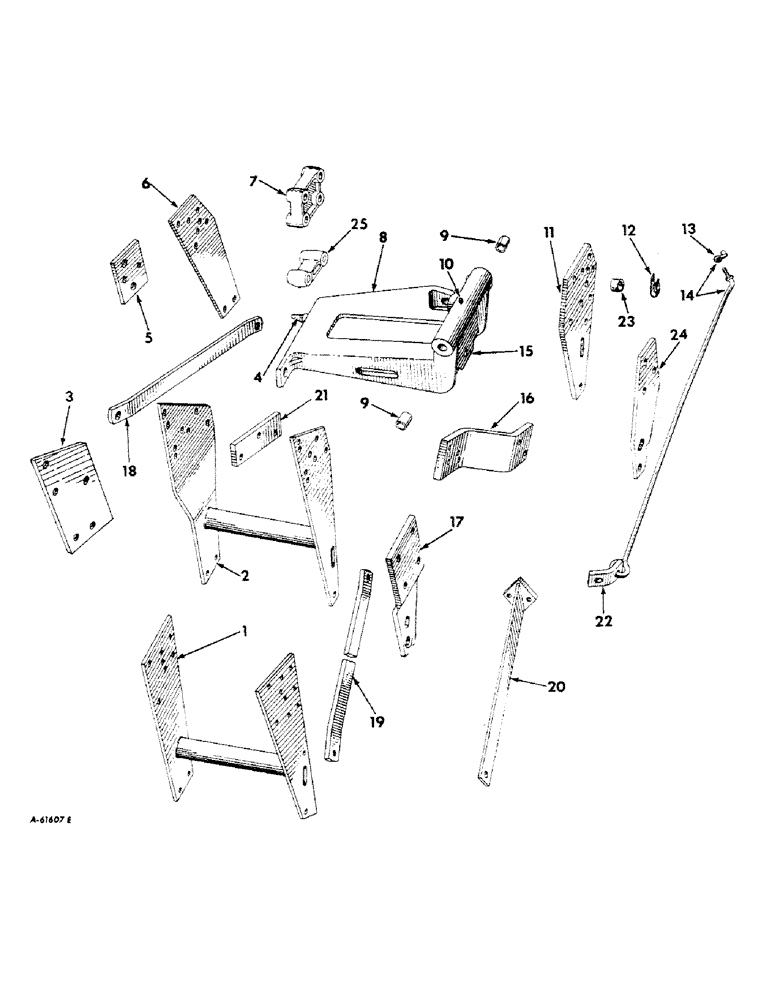

Запчасти Case IH 1110 (M-03) - MAIN FRAME, SIDE MOUNTING PLATES AND STAY ROD
№
Артикул
Название
Примечание
Количество
1
463528R93
PLATE ASSY, mounting, units G, L, M and N
1шт.
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
SCREW, 5/8-11 x 3-1/2 cd or zn-pltd hex-hd cap, unit G
3шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Unit G 5/8"
3шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 cd or zn-pltd hex-hd cap, unit G
3шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Unit G 5/8"
3шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
Units L and M Hex, 3/4"-10 x 2 1/4", G5
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", 4 for units L and M, 6 for unit N
1шт.
SCREW, 3/4-10 x 2 C-Z hex-hd cap, unit N
6шт.
2
463529R93
PLATE ASSY, mounting, units E and P
1шт.
2
479003R92
PLATE ASSY, mounting, unit H
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 cd or zn-pltd hex-hd cap, unit H
3шт.
426-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8
SCREW, 5/8-11 x 2-1/2 cd or zn-pltd hex-hd cap, unit H
2шт.
80280173
BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5
SCREW, 3/4-10 x 2-3/4 cd or zn-pltd hex-hd cap, unit H
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Unit H 5/8"
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", 6 for units E, H and P
1шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
SCREW, 3/4-10 x 2 cd or zn-pltd hex-hd cap, 2 for unit E, 6 for unit H
1шт.
3
463387R3
PLATE, left mounting, units A, S and T
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap, units A, S and T
3шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Units A, S and T 5/8"
3шт.
4
463324R1
PIN, hitch left
1шт.
520177R11
PIN
ASSY, quick attachable cot.
1шт.
576482R1
LOCK PIN,5/16" x 2", Slotted
1шт.
5
463385R1
PLATE, lead adjustment
1шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
SCREW, 5/8-11 x 1-3/4 C-Z hex-hd
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
6
463381R3
PLATE, mounting LH, units B, D, J and K
1шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
3/4-10 x 2 C-Z hex-hd, units B, D, J and K
3шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", Units B, D, J and K
3шт.
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
SCREW, 5/8-11 x 3-1/2 cd or zn-pltd hex-hd cap, unit D
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Unit D 5/8"
4шт.
7
463386R3
SPACER
mounting, units D, Q and R
1шт.
8
464077R11
FRAME
ASSY, main
1шт.
466322R1
SCREW, 3/4-16 x 2-1/2 hex-hd cap
1шт.
522473R1
WASHER
49/64 x 1-3/4 x 1/8
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
426099
NUT,3/4"-16, G5
3/4-16 C-Z hex.
1шт.
9
463322R1
BUSHING
frame
2шт.
10
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
11
463382R3
PLATE, mounting RH, units B, D, J, Q and R
1шт.
413-1232
BOLT,Hex, 3/4" - 10 x 2", Gr 5
3/4-10 x 2 C-Z hex-hd, units B, D and J
3шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", Units B, D and J
3шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
SCREW, 5/8-11 x 2-1/4 cd or zn-pltd hex-hd cap, unit D
4шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 C-Z hex-hd cap, units Q and R
3шт.
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap, units D, Q and R
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , 5 for Unit D, 3 for Units Q and R 5/8"
1шт.
12
463380R1
CLIP
FASTENER, stay rod
1шт.
413-1216
BOLT,Hex, 3/4" - 10 x 1", Gr 5
SCREW, 3/4-10 x 1 C-Z hex-hd cap
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
1шт.
413-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5
SCREW, 5/8-11 x 1 C-Z hex-hd cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
13
M487
CRANK
stay rod
1шт.
14
463502R92
ROD
W/CRANK, stay
1шт.
14
469660R1
ROD, stay, special, for use with 2000 or 3000 loaders
1шт.
15
463323R1
PIN, right hitch
1шт.
16
463524R2
BRACE, mounting RH, units D, Q and R
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 cd or zn-pltd hex-hd cap, units D, Q and R
1шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
Units D, Q and R Hex, 3/4"-10 x 2 1/4", G5
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Units D, Q and R 5/8"
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", Units D, Q and R
2шт.
17
463388R2
PLATE
right mounting, units A, S and T
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap, unit A
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , 2 for Units S and T, 4 for Unit A 5/8"
1шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap, unit S and T
2шт.
18
463618R2
BRACE, mounting LH, units D, Q and R
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 cd or zn-pltd hex-hd cap
1шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
495-11053
WASHER,1/2", SAE
17/32 x 1-1/16 x 13 ga cd or zn-pltd
1шт.
19
Not used in this application
1шт.
20
464232R11
BRACE ASSY, mounting RH, unit G
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
21
464242R1
PLATE, spacer, unit F
4шт.
22
469661R1
ANCHOR, stay rod, special, for use with 2000 or 3000 loaders
1шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
495-11053
WASHER,1/2", SAE
17/32 x 1-1/16 x .095 C-Z
1шт.
19700R91
FITTING
3/16 x 45 degree elbow drive type lubrication, install in steering knuckle or tractor
1шт.
23
519568R1
BUSHING, stay rod fastener, for use with 424 and 2424 tractors
1шт.
24
491941R1
PLATE, mtg RH, unit C
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
3шт.
25
491942R1
SPACER, mtg, unit C
2шт.
271730
SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5
SCREW, 5/8-11 x 3-3/4 znd hex-hd cap
1шт.
Выбрано товаров: 95
