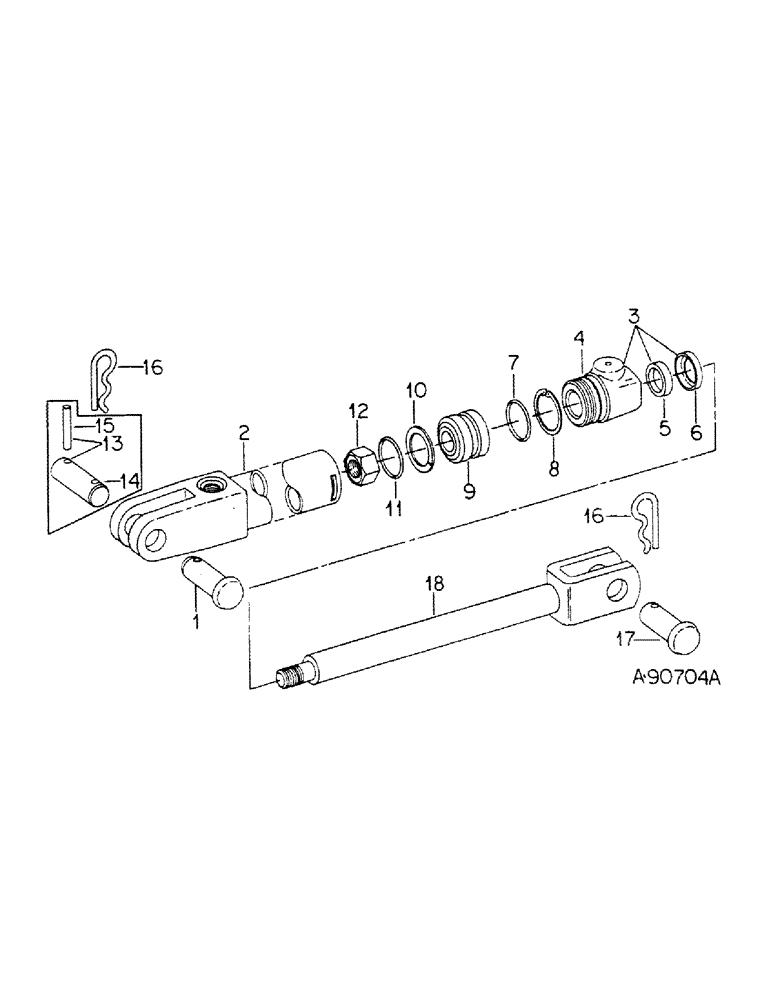

Запчасти Case IH 1110 (P-04) - HYDRAULIC CYLINDER, 2 X 8 IN. SINGLE ACTING

381832R93

CYLINDER BLOCK

CYLINDER ASSY, 2 x 8 in. single acting hydraulic

1шт.

1

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 in. x 2-3/4 headed, used with tube assy, 381820R92

1шт.

2

381820R92

TUBE ASSY, cylinder

1шт.

3

381802R11

HEAD ASSY, rod end

1шт.

4

NSS

NOT SOLD SEPARAT

HEAD, rod end, order 381802R11

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, piston rod dust, order kit, 386685R91

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER, piston rod dust seal, order kit, 386685R91

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING, 1-3/4 x 2 x 1/8, order kit, 386685R91

1шт.

8

461180R1

RETAINER

RING, retaining

1шт.

9

381848R1

PISTON

HEAD, piston

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER, piston head back-up, order kit, 386685R91

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING, 1-5/8 x 2 x 3/16, order kit, 386685R91

1шт.

12

385020R1

NUT

3/4-16 hex. lock

1шт.

13

381852R11

PIN

ASSY, cylinder pivot, used with tube assy, 381820R91

1шт.

14

NSS

NOT SOLD SEPARAT

PIN, cylinder pivot, order 381852R11

1шт.

15

NSS

NOT SOLD SEPARAT

PIN, cylinder spring, order 381852R11

1шт.

16

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

17

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 in. x 2-3/4 headed

1шт.

18

73763C1

ROD ASSY.

ROD ASSY, piston, replaces 381842R91

1шт.

386685R91

KIT

KIT, hydraulic cylinder o-ring service, consists of Ref. nos. 5, 6, 7, 10 and 11

1шт.
