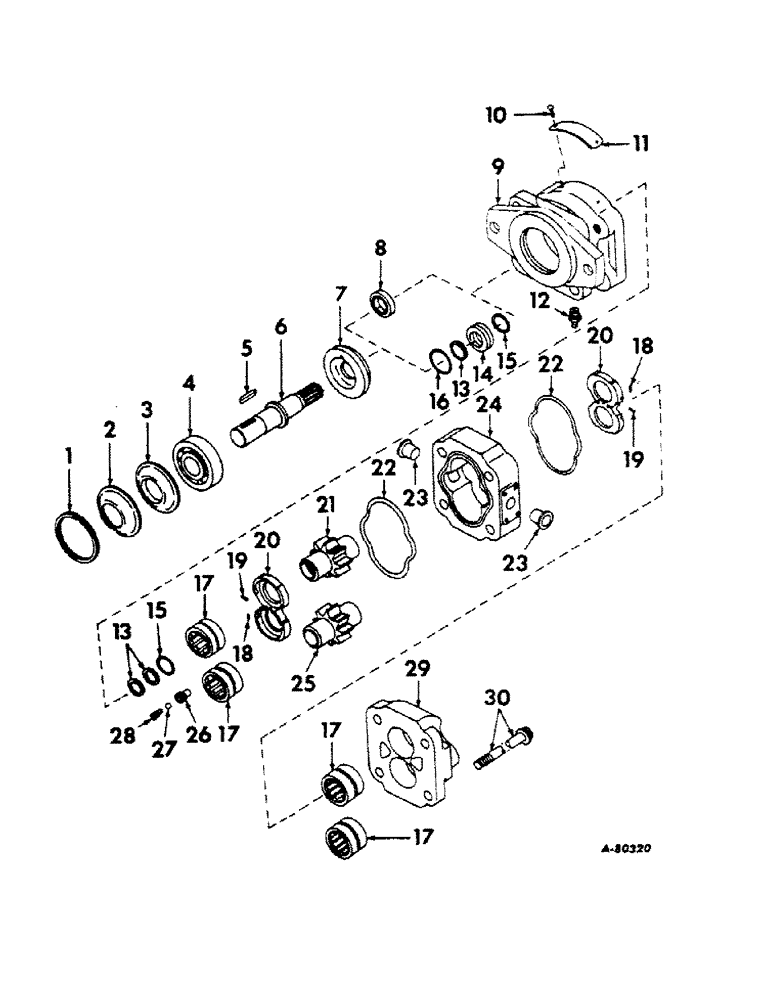

Запчасти Case IH 1110 (M-30) - HYDRAULIC MOTOR, COMMERCIAL SHEARING AND STAMPING CO.

477900R91

MOTOR ASSEMBLY, hydraulic

1шт.

1

RING, snap, part of package, 478872R92

1шт.

2

SHIELD, bearing, part of package, 478872R92

1шт.

3

SEAL, bearing, part of package, 478872R92

1шт.

4

333727R91

BEARING, ball

1шт.

5

489041R1

KEY

1шт.

6

489040R1

SHAFT, drive

1шт.

7

SPACER, bearing (NSS)

1шт.

8

Not used this application

1шт.

9

COVER, end (NSS)

1шт.

10

SCREW, drive (NSS)

2шт.

11

PLATE, name (NSS)

1шт.

12

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

13

RING, back-up, part of package 478872R92

3шт.

14

484662R1

INSERT, bronze

1шт.

15

478543R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

O-RING, 7/8 x 1-1/8 x 1/8 in.

2шт.

16

O-RING, 1-1/4 x 1-3/8 x 1/16 in., part of package 478872R92

1шт.

17

BEARING, roller (NSS)

4шт.

18

SEAL, pocket, part of package, 478872R92

1шт.

19

SEAL, pocket, part of package, 487872R92

1шт.

20

PLATE, thrust (NSS)

2шт.

21

GEAR, drive (NSS)

1шт.

22

O-RING, 3-5/8 x 3-7/8 x 1/8 in. part of package 478872R92

2шт.

23

PLUG, plastic, shipping only

2шт.

24

HOUSING (NSS)

1шт.

25

GEAR, driven (NSS)

1шт.

26

297311R1

RETAINER, check ball

2шт.

27

17005R1

BALL,5/32" Dia

5/32 grade 25 metal

2шт.

28

297312R1

SEAT, check ball

2шт.

29

COVER, end (NSS)

1шт.

30

SCREW, cover (NSS)

4шт.

478872R92

KIT

hydraulic motor repair, consists of Reference nos. 1, 2, 3, 13, 14, 16, 18, 19 and 22

1шт.
