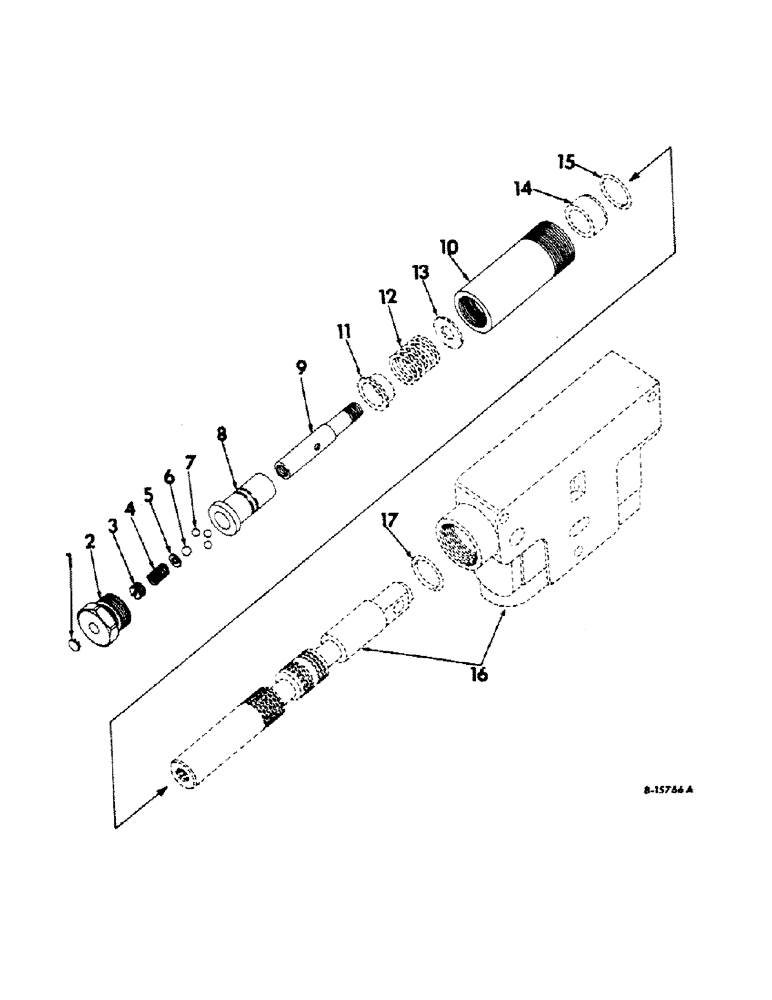

Запчасти Case IH 1110 (M-28) - VALVE DETENT ATTACHMENT

1

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 in. stl button

1шт.

2

376425R1

PLUG

CAP, control valve

1шт.

3

377803R1

PLUG

spring retaining

1шт.

4

377802R1

SPRING

detent

1шт.

5

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

6

17010R1

BALL,5/16" Dia

Detent actuating 5/16" Dia

1шт.

7

17008R1

BALL,1/4" Dia

Chrome-Steel, detent 1/4" Dia

3шт.

8

376427R1

SLEEVE, position control

1шт.

9

382661R2

ACTUATOR, centering spring

1шт.

10

395783R1

UNION

SLEEVE, cap retaining

1шт.

11

RETAINER, centering spring, note A

1шт.

12

SPRING, centering, note A

1шт.

13

WASHER, centering spring thin, note A

1шт.

14

RETAINER, valve spool o-ring, note A

1шт.

15

O-RING, note A

1шт.

16

BODY ASSY, control valve, note A

1шт.

17

O-RING, note A

1шт.
