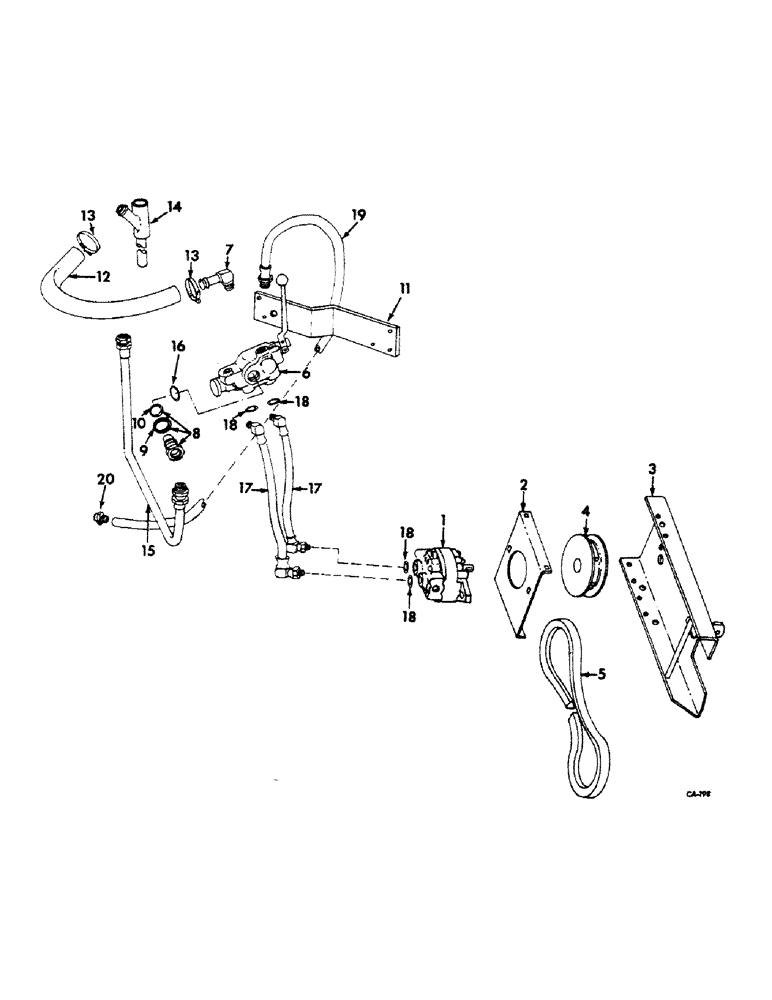

Запчасти Case IH 1110 (M-26) - HYDRAULIC DRIVE, FOR INTERNATIONAL 656 AND 2656 TRACTORS

1

477900R91

MOTOR ASSY, hydraulic, commercial shearing and stamping, for components see list of parts under detail of hydraulic motor, replaces 477807R91

1шт.

2

477808R1

BRACKET, hyd motor mounting

1шт.

19285R1

BOLT

1/2 x 1-1/4 cad sq-nk crg

4шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

28407K

WASHER

17/32 x 1-1/4 x 1/32

4шт.

3

477806R21

SHIELD

ASSY, front drive mounting

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 znd sq-nk crg

2шт.

20511R1

WASHER, 5/8 znp med lock

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

23020R1

SCREW, 1/2-13 x 2 C-Z sq-hd cup-pt set

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

4

477809R2

PULLEY

drive

1шт.

191953

SCREW,Hdls Hex Skt, 3/8" - 16 x 5/16", Cup Pt

3/8-16 x 5/16 C-Z hex-soc-hd cup-pt set

4шт.

5

567947R2

V-BELT,22.33 mm W

Drive pulley 22.33 mm W

1шт.

6

477810R91

VALVE

ASSY, hyd motor operating, for components see list of parts under detail of hydraulic motor operating valve

1шт.

7

477814R1

ELBOW

return line

1шт.

8

477816R91

SLEEVE W/GASKET & SEAL, power beyond

1шт.

9

635971R1

GASKET, power beyond sleeve

1шт.

10

666218R1

SEAL

SEAL, power beyond sleeve

1шт.

11

491753R1

PLATE, valve mtg

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 C-Z hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

12

491759R1

HOSE, dump line, 1/2 in

40шт.

13

274086R91

HOSE CLAMP,0.94/1.63 Type F Worm

CLAMP, dump line hose

2шт.

14

491758R1

TUBE ASSY, filler & dump

1шт.

15

491754R91

HOSE ASSY, hyd pressure 37 in.

1шт.

16

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

2шт.

17

372583R91

HOSE

ASSY, hyd motor 47 in.

2шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

19

491756R91

HOSE ASSY, hyd power beyond 23 in.

1шт.

20

491757R91

CONNECTOR, power beyond & pressure hose

1шт.
