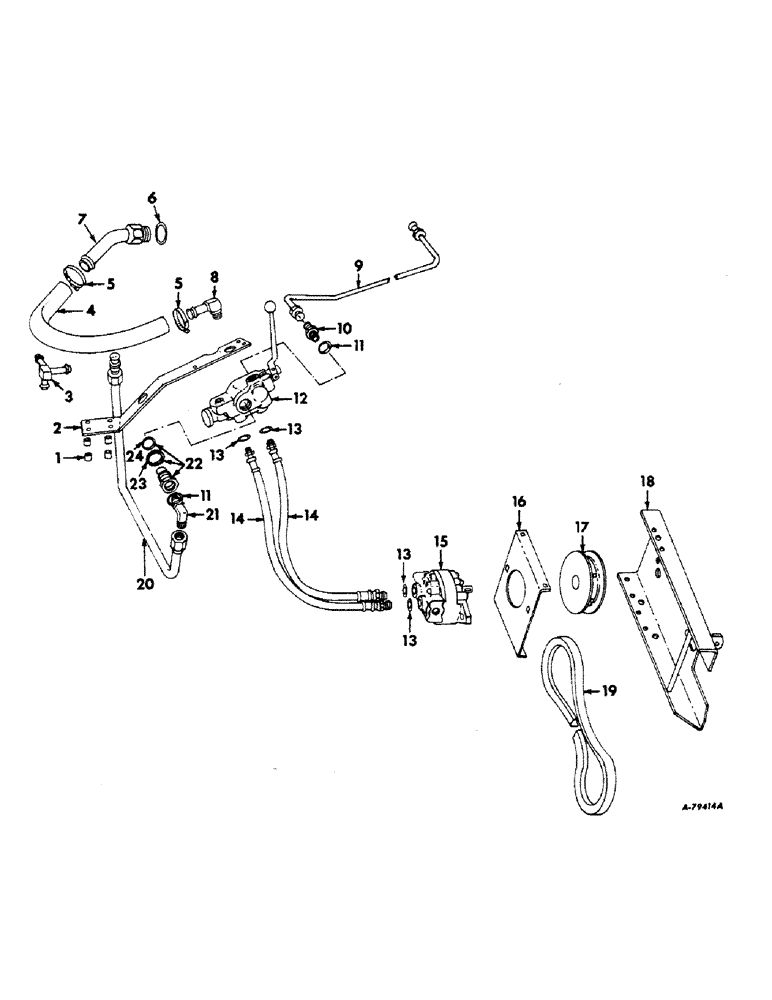

Запчасти Case IH 1110 (M-24) - HYDRAULIC DRIVE

1

P13334

SPACER, tractor fender, unit A

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

4шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

4шт.

2

477811R1

BRACKET, valve mounting, unit A

1шт.

2

491944R1

PLATE, valve mounting, unit B

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap, unit B

4шт.

120384

WASHER,1/2"

LOCK, , Unit B 1/2"

4шт.

3

477815R1

TEE, return line lateral, required w/loader

1шт.

4

478255R1

HOSE, dump line 20 in. long

1шт.

5

274086R91

HOSE CLAMP,0.94/1.63 Type F Worm

CLAMP, hose, 2 required w/o loader, 5 required w/loader

1шт.

6

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1-11/16 x 1-1/2 x 1/8 in.

1шт.

7

378920R92

TUBE ASSY

1шт.

8

477814R1

ELBOW

return line

1шт.

9

477812R11

PIPE ASSY, pressure, unit A

1шт.

9

491943R1

TUBE ASSY, pressure, unit B

1шт.

10

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 37 degree flare short swivel

2шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

.924 x .116

3шт.

12

477810R91

VALVE

ASSY, hyd motor operating, for components see list of parts under detail of hydraulic motor operating valve

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

14

460946R91

HOSE, hyd 28 in. long

2шт.

15

477900R91

MOTOR ASSY, hydraulic, commercial shearing and stamping, for components see list of parts under detail of hydraulic motor

1шт.

16

477808R1

BRACKET, hyd

1шт.

19285R1

BOLT

1/2 x 1-1/4 in. C-Z crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

28407K

WASHER

17/32 x 1-1/4 x 1/32

4шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

17

477809R2

PULLEY

drive

1шт.

191953

SCREW,Hdls Hex Skt, 3/8" - 16 x 5/16", Cup Pt

3/8-16 x 5/16 C-Z hex-hd cup-pt set

4шт.

18

477806R21

SHIELD

ASSY, front drive mounting

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 znd sq-nk crg

2шт.

20511R1

WASHER, 5/8 znd med lock

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

23020R1

SCREW, 1/2-13 x 2 C-Z sq-hd cup-pt set

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

19

567947R2

V-BELT,22.33 mm W

Drive pulley 22.33 mm W

1шт.

20

477813R11

PIPE ASSY, power beyond

1шт.

21

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

37 degree flared 90 degree

1шт.

22

477816R91

SLEEVE W/GASKET AND SEAL, power beyond

1шт.

23

635971R1

GASKET, power beyond sleeve

1шт.

24

666218R1

SEAL

SEAL, power beyond sleeve

1шт.
