Запчасти Case IH 1110 (M-23) - SELECTOR VALVE AND CONNECTIONS, INTERNATIONAL 404, 424, 444, 2404, 2424, 2444 TRACTORS W/LOADER

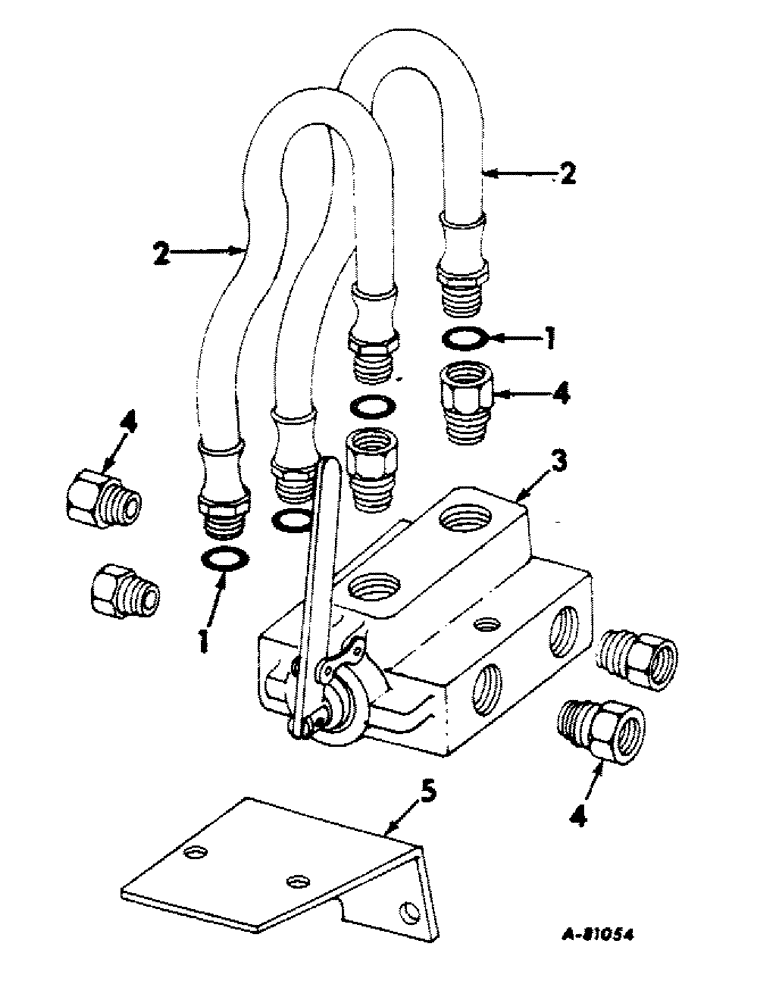

Схема запчастей Case IH 1110 - (M-23) - SELECTOR VALVE AND CONNECTIONS, INTERNATIONAL 404, 424, 444, 2404, 2424, 2444 TRACTORS W/LOADER

Артикул

Название

Примечание

Количество

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 in.

4шт.

2

526806R91

HOSE, 18 in. long

2шт.

3

669070R91

VALVE ASSEMBLY, double selector, for components see list of parts under details of double selector valve

1шт.

4

479615R1

CONNECTOR, port

6шт.

5

479159R1

BRACKET, selector valve mounting

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 C-Z hex-hd cap

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

Выбрано товаров: 8
