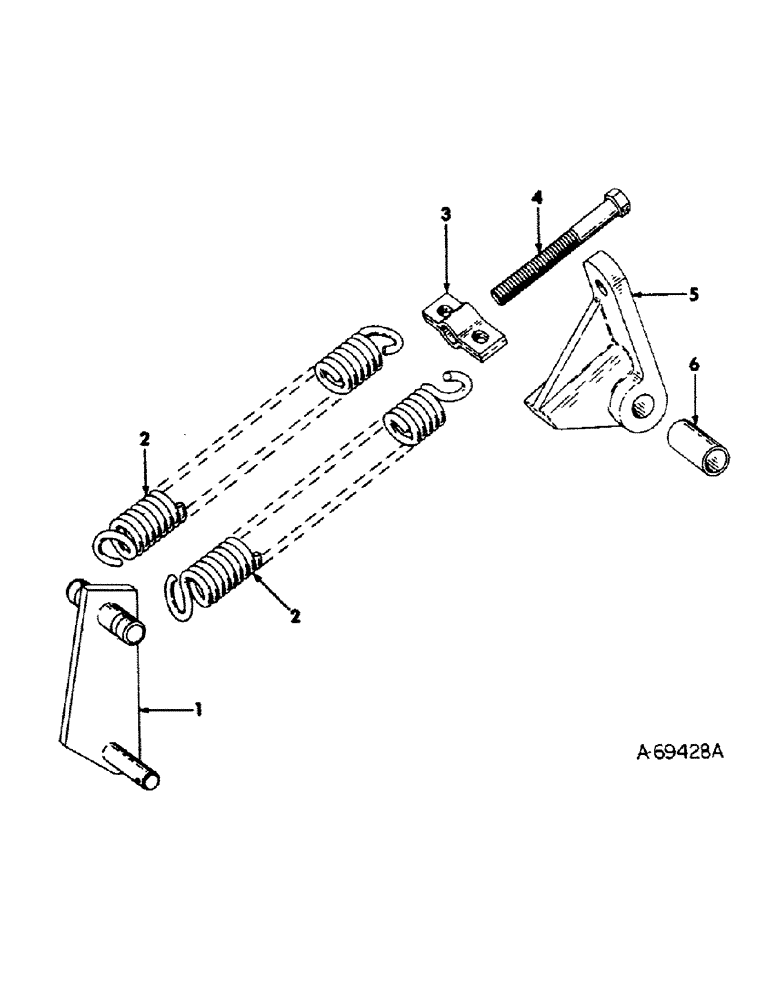

Запчасти Case IH 1110 (M-20) - OUTER SHOE BALANCE SPRING ATTACHMENT

1

465486R21

ARM ASSY, balance spring

1шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

2

465945R1

SPRING

outer balance

2шт.

3

465489R11

BRACKET ASSY, spring anchor

1шт.

4

461723R1

BOLT,5/8" - 11 x 6", Grade 5

5/8 x 6 C-Z hex-hd

1шт.

124847

COLLAR

5/8-11 C-Z hex. jam

2шт.

5

465485R1

ANCHOR, balance spring

1шт.

6

M24975

SPACER,1" Pipe x 2 3/8"

1 x 2-3/8 std pipe

1шт.
