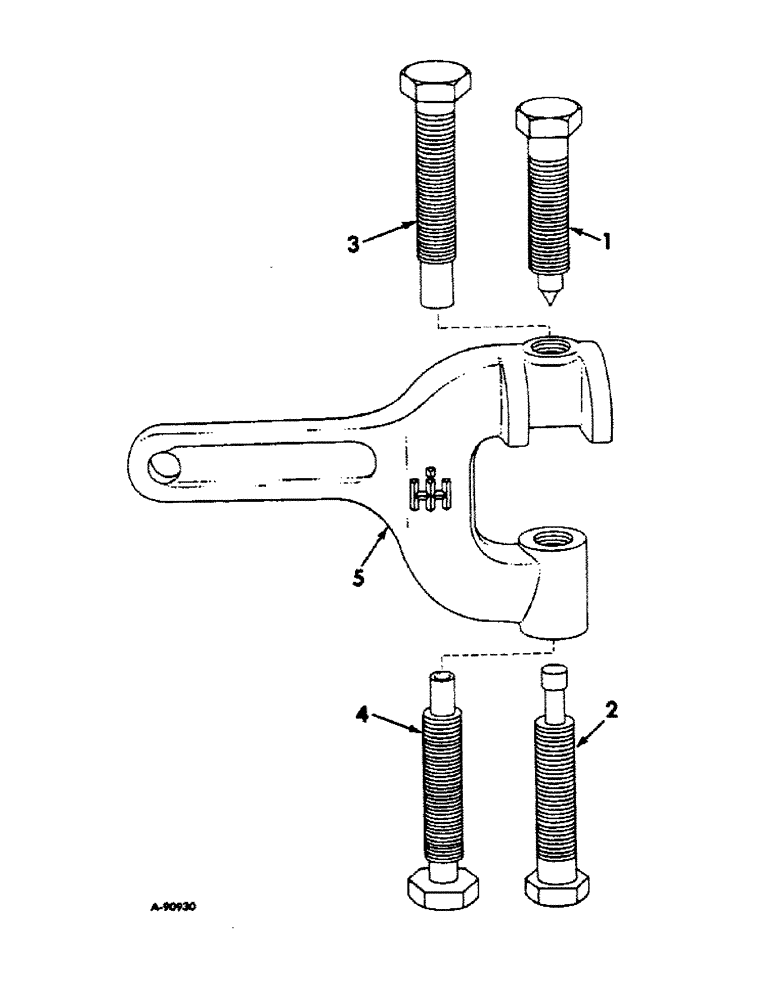

Запчасти Case IH 1110 (M-18[A]) - FLARING TOOL

Service parts for hydraulic pressure relief line, for use with single acting hydraulic cylinder when connected to double acting auxiliary control valves used on I-2424, or I-444, I-2444 tractors equipped w/two auxiliary valves and front LH and RH hydraulic manifolding, unit A

1шт.

Service parts for hydraulic pressure relief line, for use with single acting hydraulic cylinder when connected to double acting auxiliary control valves used on I-424, I-2424, or I-444, I-2444 tractors equipped w/two auxiliary valves w/out hydraulic manifolding, unit B

1шт.

144034

ADAPTER,3/4" NPT Male x 1/2" NPT Fem

3/4 x 1/2 in. pipe reducing, unit A

1шт.

468256R1

CLAMP

HOSE, unit A

1шт.

479615R1

CONNECTOR, port, unit A, 2 for unit B

1шт.

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male, unit A

1шт.

395151R1

COUPLING

ASSY, self-sealing male, unit A

1шт.

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 in. 90 degree

2шт.

371357R91

ELBOW

W/LOCK NUT, adj, unit A, 2 for unit B

1шт.

HOSE ASSY, 18 inches long, unit A, discontinued for service

1шт.

HOSE ASSY, 28 inches long, 2 for unit B, discontinued for service

1шт.

586992R91

HYDRAULIC HOSE,0.50" ID x 48.00"

HOSE ASSY, 48 inches, unit A

1шт.

219658

SUPPORT,Nipple, 3/4" NPT x 2 1/2"

NIPPLE, 3/4 x 2-1/2 in. C-Z pipe

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32 in., 3 for unit A, 6 for unit B

1шт.

125988

TEE,3/4" NPT, Fem

3/4 pln pipe

1шт.

489611R92

TOOL ASSY.

KNIFE SECTION RIVETING TOOL PACKAGE, consists of Ref. nos. 3, 4 and 5

1шт.

55169C91

PACKAGE

LEDGER PLATE RIVETING TOOL PACKAGE, consists of Ref. nos. 1 and 2, for use with 489611R92

1шт.

1

489617R1

TOOL

flaring

1шт.

2

489616R1

TOOL

riveting

1шт.

3

489615R2

TOOL

rivet anvil

1шт.

4

489614R2

TOOL

heading

1шт.

5

HOLDER, riveting and flaring, order 489611R92

1шт.
