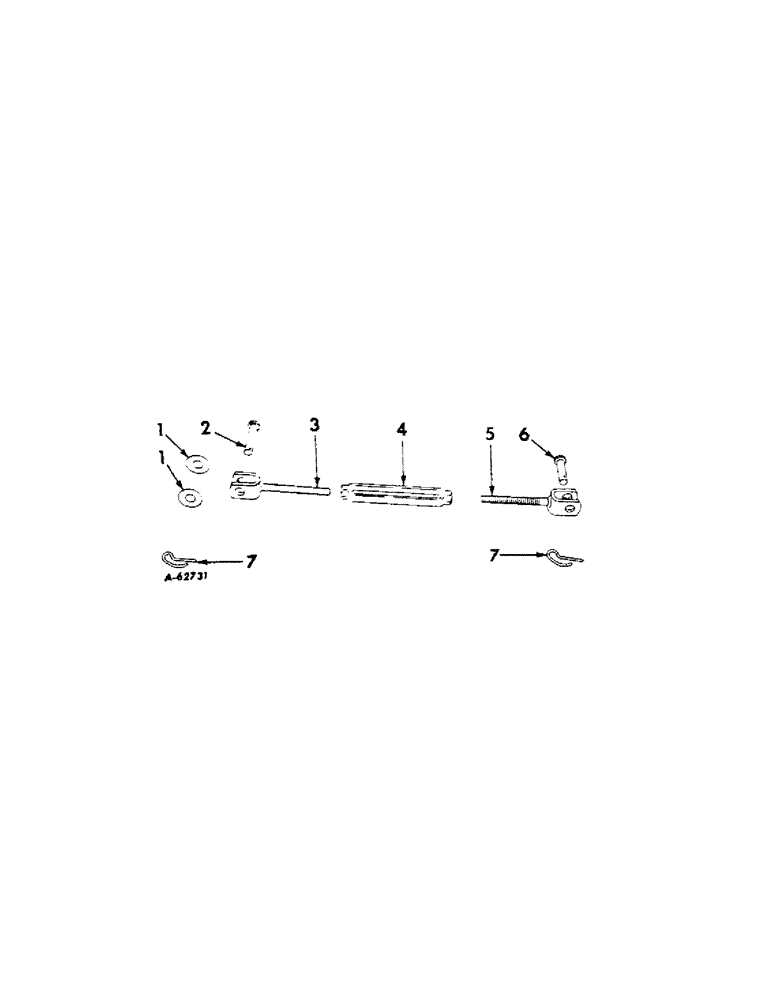

Запчасти Case IH 1110 (M-16[A]) - QUICK ATTACHING ATTACHMENT

1

23049R1

WASHER

1-1/32 x 2-1/2 x 11 ga C-Z

2шт.

2

22973R1

PIN,1" x 4 1/2"

1 x 4-1/2 C-Z std-hd

1шт.

3

464327R91

STUB ASSY, turnbuckle LH

1шт.

6

464332R1

TURNBUCKLE

1шт.

5

464328R91

ROD

STUB ASSY, turnbuckle RH

1шт.

6

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2-7/16 C-Z std-hd

1шт.

7

538406R1

COTTER PIN

PIN, quick-attachable cotter

2шт.
