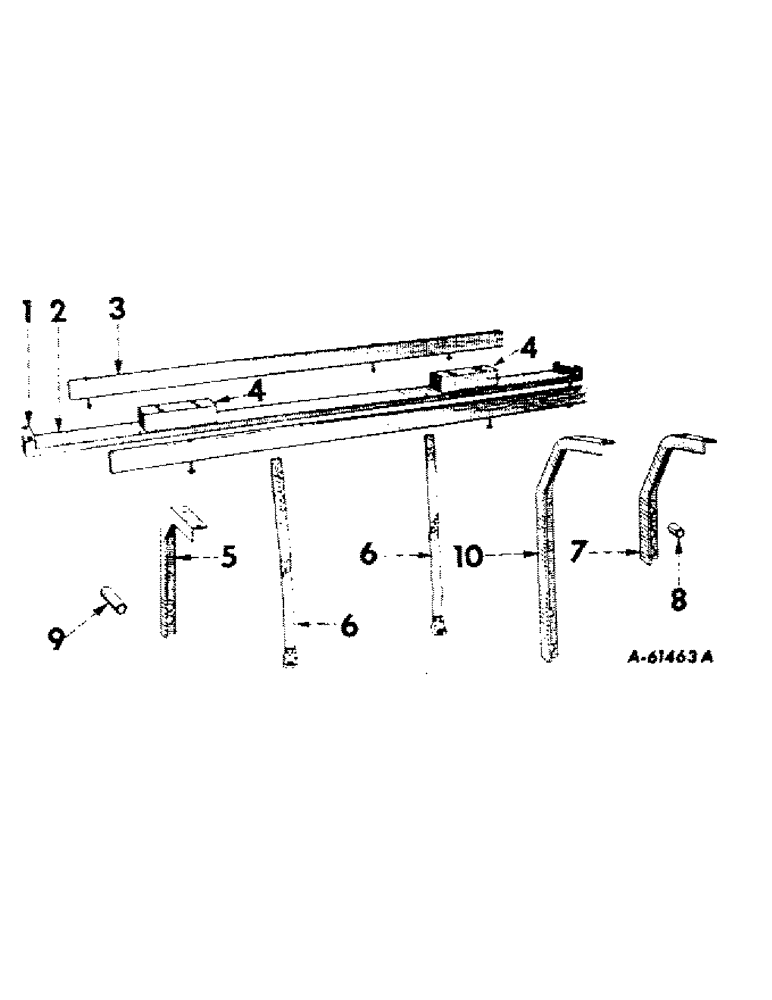

Запчасти Case IH 1110 (M-15) - KNIFE RACK ATTACHMENT

1

M42464

END, knife rack

2шт.

106909

RIVET, 1/4 x 2 in. truss-hd

4шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x 18 ga C-Z

4шт.

2

MB42463

BOTTOM W/ENDS AND KNIFE SPACER, knife rack, riveted assembly, A and B

1шт.

2

467944R91

BOTTOM W/ENDS AND KNIFE SPACER, knife rack, riveted assembly, unit C

1шт.

2

MB42467

BOARD, knife rack bottom, unit A and B

1шт.

2

467945R1

BOARD, knife rack bottom, unit C

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

3

MA42465

SIDE BOARD, knife rack, unit A and B

2шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 znd sq-nk crt

6шт.

120376

NUT,5/16"-18, G5

6шт.

Q243

WASHER

21/64 x 3/4 x 16 ga

4шт.

3

467943R1

SIDE BOARD, knife rack, unit C

2шт.

126667

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3 1/4", Gr 2

BOLT, 5/16 x 3-1/4 znd sq-nk crg

2шт.

Q243

WASHER

21/64 x 3/4 x 16 ga

2шт.

120376

NUT,5/16"-18, G5

2шт.

18477R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 2

BOLT, 5/16 x 3-1/2 znd sq-nk crg

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

4

M42466

SPACER, knife

6шт.

134580

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type

RIVET, 1/4 x 3 truss-hd solid

12шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x 18 ga C-Z

12шт.

5

451866R2

BRACE, front rack, unit A and B

1шт.

5

467942R1

BRACE, front mounting, unit C

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 znd hex-hd cap

1шт.

20511R1

WASHER, 5/8 znd med lock

1шт.

6

H8050

STRAP, knife rack

2шт.

M42470

STRAP W/BUCKLE ASSEMBLY

2шт.

Q3561

RIVET, 9/64 x 3/8 in. stl-tubular csk-hd pltd.

4шт.

7

459498R2

BRACE, rear knife rack, unit B and C

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

SCREW, 3/4 x-1/4 in. cap, 2 for unit B, 1 for unit C

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , 2 for unit B, 1 for unit C 3/4"

1шт.

8

Not used in this application

1шт.

9

460935R1

SPACER, knife rack

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 znd hex-hd mach

1шт.

20511R1

WASHER, 5/8 znp med lock

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

SCREW, 3/4-10 x 4-1/2 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

10

451867R1

BRACE, knife rack rear

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.
