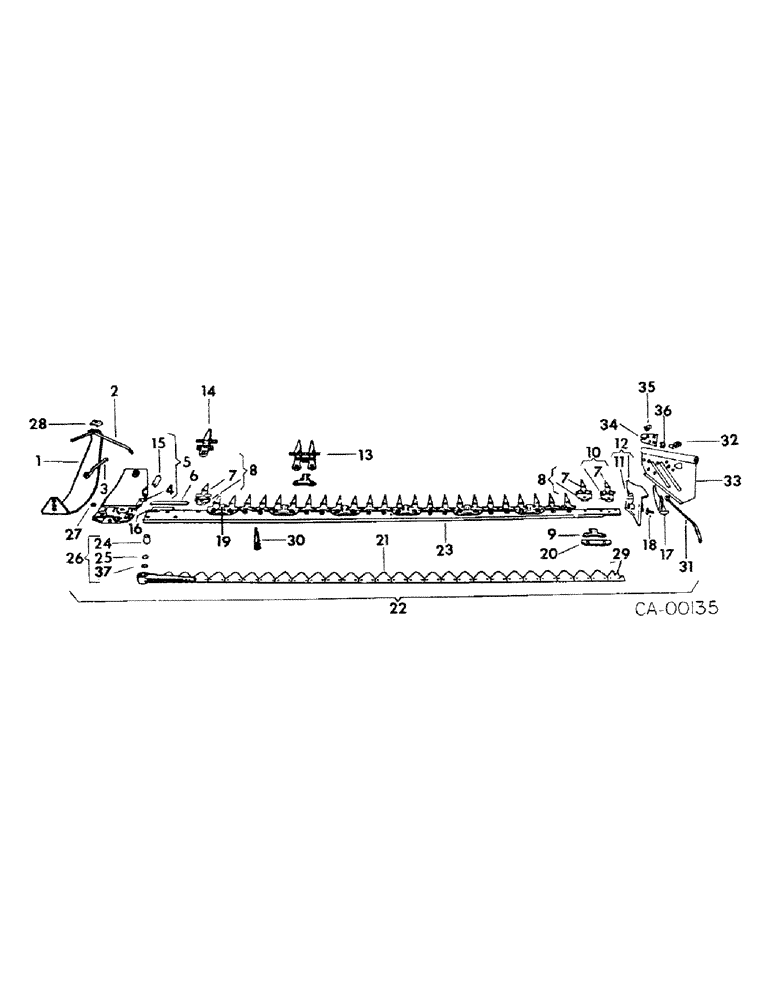

Запчасти Case IH 1110 (M-13) - CUTTER BAR

1

458966R1

SOLE

inner shoe, divider type

1шт.

1

462743R1

SOLE

inner shoe, stub type

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

2

463404R1

ROD

inner shoe upper grass

1шт.

2

462744R1

ROD

inner shoe upper grass, stub type

1шт.

3

461281R1

ROD

inner shoe lower grass

1шт.

3

463405R1

ROD

inner shoe upper short grass

1шт.

4

458965R1

PLATE

LEDGER PLATE, inner shoe

1шт.

990804R91

RIVET, 3/16 x 1-1/8 in., 54 degree csk-hd, one pound package

2шт.

5

486934R91

SHOE

ASSY, inner

1шт.

21371R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2 hex-hd cap

1шт.

21398R1

SCREW

W/NYLON PELLET INSERT, 5/8-11 x 2-1/4 hex-hd cap

2шт.

486707R1

WASHER

3шт.

6

458942R1

BAR

SPACER, cutter bar, not for 9 ft. bar

1шт.

7

455634R1

PLATE

LEDGER PLATE, plain serrated, 25 for 7 ft., 33 for 9 ft.

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 74 deg csk-hd tubular, one pound package

1шт.

486544R1

RIVET

special 1-1/4 in. long 54 degrees csk-hd

1шт.

7

457608R1

CUTTER BAR

LEDGER PLATE, cr-pltd serrated, 25 for 7 ft. only

1шт.

407039R91

RIVET,Countersunk, 4.76mm OD x 25.4mm L

3/16 x 1 74 deg csk-hd tubular, one pound package

1шт.

8

MC2041Z

GUARD

GUARD W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy, 24 for 7 ft., 32 for 9 ft.

1шт.

8

457743R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy, 24 for 7 ft. only

1шт.

9

MA812

SUPPORT

HOLDER, low arch knife, 6 for 7 ft., 8 for 9 ft., 12 for 7 ft. with single guard

1шт.

10

MC2043Z

GUARD

W/PLAIN SERRATED LEDGER PLATE, 455634R1, heavy outer

1шт.

10

457745R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE, 457608R1, heavy outer

1шт.

11

MA330

LARGE PLATE

LEDGER PLATE, outer shoe serrated

1шт.

990720R91

RIVET, 3/16 x 11/16, 54 degree csk-hd, one pound package

1шт.

990717R91

RIVET, 3/16 x 1 in., 54 degree csk-hd, one pound package

1шт.

12

MF729X

SHOE

W/LEDGER PLATE, outer

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, outer shoe

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

13

483500R3

GUARD

Standard, forged steel double knife, 12 for 7 ft., 16 for 9 ft.

1шт.

13

187346A1

GUARD

Double Heat Treated

1шт.

14

472717R2

GUARD

single steel stub, 27 for 7 ft., 3 for 7 ft. w/double guard end and 3 for 9 ft.

1шт.

15

486708R1

SHIELD

inner shoe

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, 7/16 x 1-1/4 sq-nk crg

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

Q5028

WASHER

15/32 x 1 x 11 ga

1шт.

16

488411R1

SHIM

spacer, or as required

1шт.

17

M259X

SOLE

W/BRACKET, outer shoe

1шт.

18

D266X

BOLT AND NUT

W/NUT, outer shoe sole

1шт.

19

611759R1

KNIFE CLIP

HOLDER, hight arch knife

1шт.

20

MC468

PLATE ASSY.

WEARING PLATE, 7 for 7 ft., 9 for 9 ft., 13 for 7 ft. with single guard

1шт.

21

826723C1

KNIFE SECTION

SECTION, plain underserrated, 27 for 7 ft., 35 for 9 ft.

1шт.

990817R91

RIVET

no. 6 x 17/32 x pln o/hds, 47 for 7 ft., 63 for 9 ft., one pound package

1шт.

21

457606R2

KNIFE SECTION

SECTION, cr-pltd underserrated, 27 for 7 ft. only

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, two pound package

47шт.

21

826725C1

KNIFE SECTION

SECTION, smooth, 28 for 7 ft., 36 for 9 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 49 for 7 ft., 65 for 9 ft., two pound package

1шт.

21

826724C1

KNIFE SECTION

SECTION, smooth, heavy, 27 for 7 ft., 35 for 9 ft.

1шт.

21

826722C1

KNIFE SECTION

SECTION, underserrated, heavy, 27 for 7 ft., 35 for 9 ft.

1шт.

21

457604R2

ASSEMBLY

SECTION, smooth cr-pltd, regular, 27 for 7 ft., 35 for 9 ft.

1шт.

21

457605R2

KNIFE SECTION

SECTION, smooth heavy cr-pltd, 27 for 7 ft., 35 for 9 ft.

1шт.

21

457607R2

KNIFE SECTION

SECTION, underserrated heavy, cr-pltd, 27 for 7 ft., 35 for 9 ft.

1шт.

991059R91

RIVET

no. 6 x 5/8 pln o/hd, 47 for 7 ft., 63 for 9 ft., two pound package

1шт.

22

472088R91

KNIFE ASSY

KNIFE W/SMOOTH SECTIONS, cd-pltd, 7 ft.

1шт.

22

472089R91

KNIFE

W/SMOOTH SECTIONS, cr-pltd, 9 ft.

1шт.

22

472090R91

KNIFE

W/SMOOTH, heavy, sections, cr-pltd, 9 ft.

1шт.

22

472091R91

KNIFE

W/UNDERSERRATED, heavy, sections, cr-pltd, 9 ft.

1шт.

22

467748R91

KNIFE

W/SMOOTH SECTION, heavy cr-pltd, 7 ft.

1шт.

22

467749R91

KNIFE

W/UNDERSERRATED SECTIONS, heavy, cr-pltd, 7 ft.

1шт.

22

463180R92

KNIFE

W/PLAIN UNDERSERRATED SECTIONS, 9 ft.

1шт.

22

458968R92

KNIFE ASSY

KNIFE W/PLAIN UNDERSERRATED SECTIONS, 7 ft.

1шт.

22

460937R92

KNIFE

W/CR-PLTD UNDERSERRATED SECTIONS, 7 ft.

1шт.

22

462379R92

KNIFE ASSY

KNIFE W/SMOOTH PLAIN SECTIONS, 7 ft.

1шт.

22

463160R92

KNIFE W/SMOOTH SECTIONS, 9 ft.

1шт.

22

462380R92

KNIFE ASSY

KNIFE W/UNDERSERRATED, heavy, sections, 7 ft.

1шт.

22

463159R92

KNIFE

W/UNDERSERRATED, heavy, sections, 9 ft.

1шт.

22

462381R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 7 ft.

1шт.

22

463182R92

KNIFE

W/SMOOTH PLAIN, heavy, sections, 9 ft.

1шт.

23

458974R1

BAR

cutter, 7 ft.

1шт.

23

463183R3

BAR, cutter, 9 ft.

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, short guard, 13 for 7 ft., 17 for 9 ft.

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, long guard, 14 for 7 ft., 18 for 9 ft.

1шт.

NLS

NO LONGER SERVICED

7/16 pln type 5, 1 per bolt

1шт.

24

458971R1

BRONZE BUSHING,25.43mm ID x 28.63mm OD x 35.18mm L

BUSHING, knife head

1шт.

25

458972R1

PLUG

knife head

1шт.

26

56692C91

PITMAN

HEAD ASSY, knife, replaces 462378R11 and 458969R11

1шт.

14768R1

RIVET, 5-1/2 x 1 pln o/hd Oval Hd, .211" x 1"

9шт.

27

458941R1

SHIM

inner shoe

1шт.

28

461383R1

CLAMP

CLIP, grass rod

1шт.

29

467455R11

VALVE

SECTION W/RIVETS, smooth heavy triplet end, cr-pltd

1шт.

29

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated heavy triplet end, cr-pltd

1шт.

29

467457R11

KNIFE SECTION

SECTION W/RIVETS, smooth regular triplet end, cr-pltd

1шт.

29

467458R11

KNIFE SECTION

SECTION W/RIVETS, underserrated regular triplet end, cr-pltd

1шт.

MB133

RIVET

no. 5-1/2 x 5/8 in. oval-hd cd-pltd, one pound package

2шт.

30

469975R3

GAUGE

guard lip

1шт.

31

Not used in this application

1шт.

32

Not used in this application

1шт.

33

489535R1

DEFLECTOR

grass

1шт.

34

489538R1

SUPPORT

grass deflector

1шт.

605449R1

BOLT

3/8 x 3/4 sq-nk crg

4шт.

472144R1

NUT

3/8-16 C-Z hex. lock

4шт.

35

M1015

SPRING

grass rod tension

1шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z sq-hd mach

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

231-1448

NUT,1/2"-13, GB

1/2-13 znp nylon insert

1шт.

36

Not used in this application

1шт.

37

544553R1

SEALING WASHER

seal

1шт.
