Запчасти Case IH 1110 (M-11) - REAR DRIVE UNIT

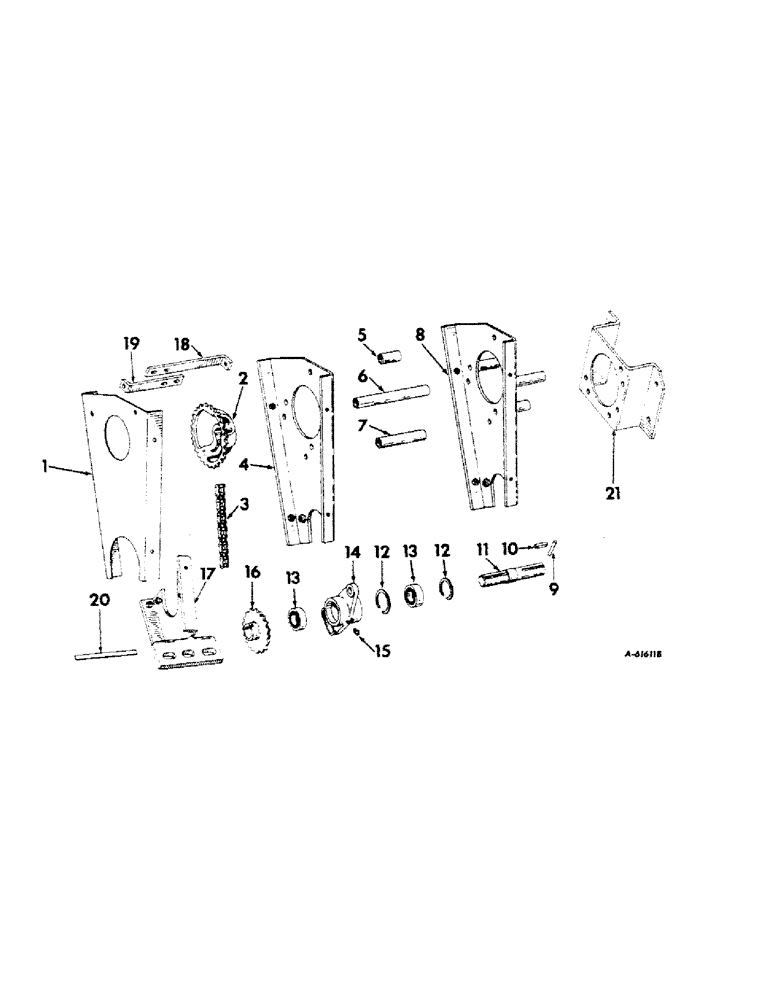

Схема запчастей Case IH 1110 - (M-11) - REAR DRIVE UNIT

Артикул

Название

Примечание

Количество

1

463396R11

SHIELD W/PRODUCT GRAPHIC, rear mtg, unit H

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 cd or zn-pltd hex-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

463399R21

SHIELD W/PRODUCT GRAPHIC ASSY, rear, units C, D, N and P

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 cd or zn-pltd hex-hd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

1

463401R21

SHIELD W/PRODUCT GRAPHICS, rear mtg, units A, B, J and L

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4-20 x 5/8 cd or zn-pltd hex-hd, 4 for units A and B, 2 for unit J

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 4 for Units A and B, 2 for Unit J 1/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

Unit J 3/8"-16, G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Unit J 1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Unit J 3/8"

2шт.

1

465178R11

SHIELD W/PRODUCT GRAPHIC, rear mtg, units E, F, G and K

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 cd or zn-pltd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

465176R2

SPROCKET ASSY.

SPROCKET, PTO drive 40T, units A, B, C, D, E, F, H, J, K, N and P

1шт.

2

461402R3

SPROCKET ASSY.

SPROCKET, PTO drive, 35T, unit D

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

CHAIN, drive, use 75 links of 5/8 in. pitch stock roller chain from a 10 ft. roll marked 1791D, one connecting link 1301D and one offset link 1315D, units C & D

1шт.

3

CHAIN, drive, use 69 links of 5/8 in. pitch stock roller chain from a 10 ft. roll marked 1791D and one connecting link 1310D, units H, J, K, L and N

1шт.

3

CHAIN, drive, use 61 links of 5/8 in. pitch stock roller chain from al 10 ft. roll marked 1791D, one connectinglink 1310D and one offset link 1315D, unit L

1шт.

4

465177R31

PLATE ASSY, rear mounting, units E, F, G and K

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/4-20 x 5/8 cd or zn-pltd hex-hd cap, units E, F and G

4шт.

120384

WASHER,1/2"

LOCK, , Units E, F, G and K 1/2"

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z, units E, F and G

8шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 C-Z hex-hd cap, unit K

2шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 C-Z hex-hd cap, unit K

1шт.

4

463400R21

PLATE ASSY, rear mounting, units A, B and L

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 cd or zn-pltd hex-hd

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

7шт.

5

463398R1

SPACER

pipe, unit C

3шт.

5

458806R1

SPACER, pipe, 3 for units L and M

3шт.

5

475426R1

SPACER, pipe, unit K

2шт.

5

663393R1

SPACER

unit K

1шт.

524443E1

WASHER, 21/32 x 1-1/4 x 7 ga, unit K, used under head of limiter stop bolt

2шт.

5

259342R1

SPACER

1/2 x 1-1/4 ext strong pipe, unit N and P

3шт.

6

463402R1

SPACER, pipe, unit L, w/transmission drive power take-off

3шт.

19999R1

BOLT,Hex, 1/2" - 13 x 9 1/2", Gr 5

SCREW, 1/2-13 x 9-1/2 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

7

463403R1

SPACER, pipe, unit M, w/transmission drive power take-off

1шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

SCREW, 1/2-13 x 7 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

8

463393R11

PLATE

ASSY, rear mounting, unit H

1шт.

22880R1

BOLT, 7/16 x 7-3/4 type 5

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

607891

WASHER, 15/32 x 1 x 16 ga C-Z

6шт.

8

463397R41

PLATE ASSY, rear mounting, units C, D, N and P

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2-13 x 3-1/4 C-Z hex-hd unit C

3шт.

120384

WASHER,1/2"

LOCK, , Units C, D, N and P 1/2"

3шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap, unit D

3шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap, units N and P

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Unit D 1/2"-13, G5

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd, units N and P

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Units N and P 1/4"

4шт.

9

22004R1

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

9

21651R1

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

10

Q1482

KEY,5/16" Sq x 1", Par

5/16 x 1 sq parallel

2шт.

11

464253R1

SHAFT

rear drive

1шт.

12

360936R1

RING

int rear drive brg retaining

2шт.

13

ST211

BEARING, BALL,30 mm ID x 62 mm OD x 16 mm

BEARING, rear drive ball

2шт.

14

463359R1

HOUSING

rear drive

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

15

16884R1

FITTING, 1/8-27 ptf 65 deg angle vented lub

1шт.

16

464251R11

SPROCKET ASSY.

SPROCKET ASSY, driven

1шт.

17

464239R92

PLATE ASSY, drawbar drive mounting, unit J

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4-10 x 2-3/4 cd or zn-pltd hex-hd

1шт.

280954

NUT,3/4"-10, G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

18

464245R1

SUPPORT, long, unit J

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 cd or zn-pltd hex-hd mach

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 cd or zn-pltd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

464244R1

SUPPORT, short, use for Farmall H series tractors only

2шт.

19

464243R1

SUPPORT, intermediate, use for Farmall M series tractors only

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 cd or zn-pltd hex-hd mach

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 cd or zn-pltd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

465174R1

SHIM, drawbar, unit J

3шт.

21

466796R1

PLATE, rear mounting adapter, unit J

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

Выбрано товаров: 91
