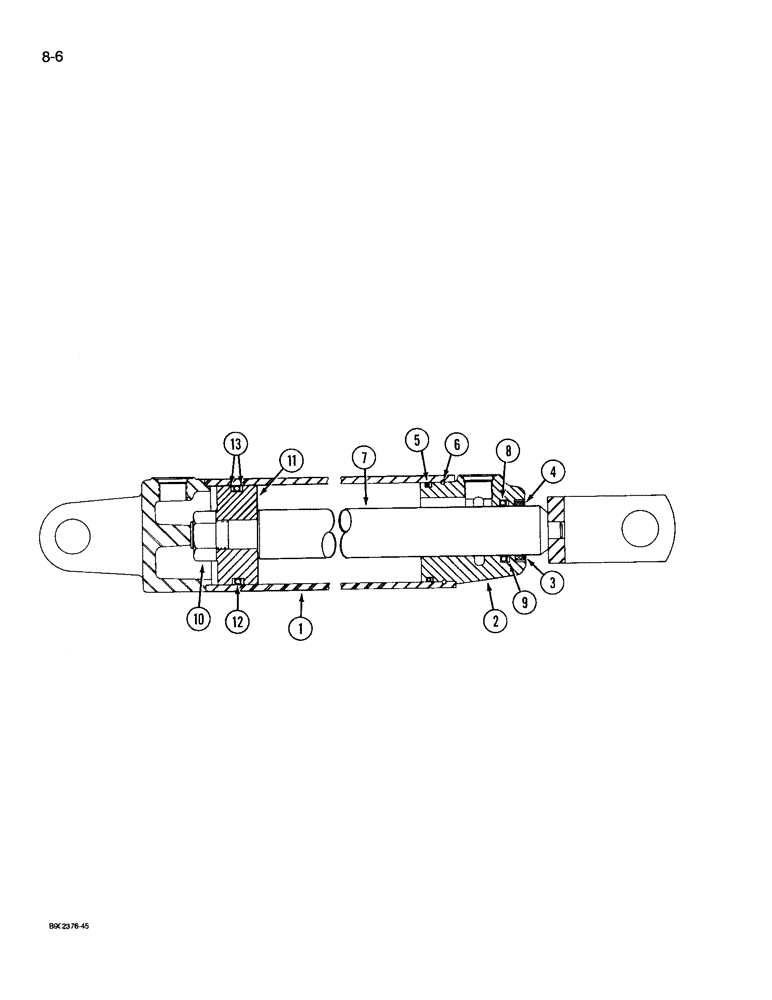

Запчасти Case IH 1100 (8-06) - RAM TYPE CYLINDER, 381833R93, WELDED DOUBLE ACTING, 1100 MOWER (08) - HYDRAULICS

381833R93

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2 ID x 8 inch stroke, double acting

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

381803R11

HEAD

GLAND ASSEMBLY - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

WIPER - piston rod

1шт.

Part of seal kit P/N 386685R91

1шт.

4

354049R1

RETAINER

SEAL - retaining, piston rod wiper

1шт.

Part of seal kit P/N 386685R91

1шт.

5

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

Gland -224, 90 Duro, 1.734" ID x .139" Thk

1шт.

Part of seal kit P/N 386685R91

1шт.

6

461180R1

RETAINER

RING - retaining, gland

1шт.

Part of seal kit P/N 386685R91

1шт.

7

73763C1

ROD ASSY.

ROD - piston

1шт.

8

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING - piston rod

1шт.

Part of seal kit P/N 386685R91

1шт.

9

383669R1

BACK-UP RING

RING - backup, piston rod O-ring

1шт.

Part of seal kit P/N 386685R91

1шт.

10

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

11

381849R1

HEAD

PISTON - cylinder

1шт.

12

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

Piston -326, 90 Duro, 1.60" ID x .210" Thk

1шт.

Part of seal kit P/N 386685R91

1шт.

13

381850R2

BACK-UP RING,Split, 41.68mm ID x 51.18mm OD x 2.39mm Thk

RING - backup, piston O-ring

1шт.

Part of seal kit P/N 386685R91

1шт.

14

25419R1

PIN

- headed, 1 x 2-3/4 inch, (1) replaces item 16, 381852R11, on closed end of cylinder, not shown

1-2шт.

15

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter, not shown

2шт.

16

381852R11

PIN

- with roll pin and grooved pivot, if used, not shown

1шт.

386685R91

KIT

KIT - seal, Includes Refs. 3, 4, 5, 6, 8, 9, 12 and 13

1шт.
