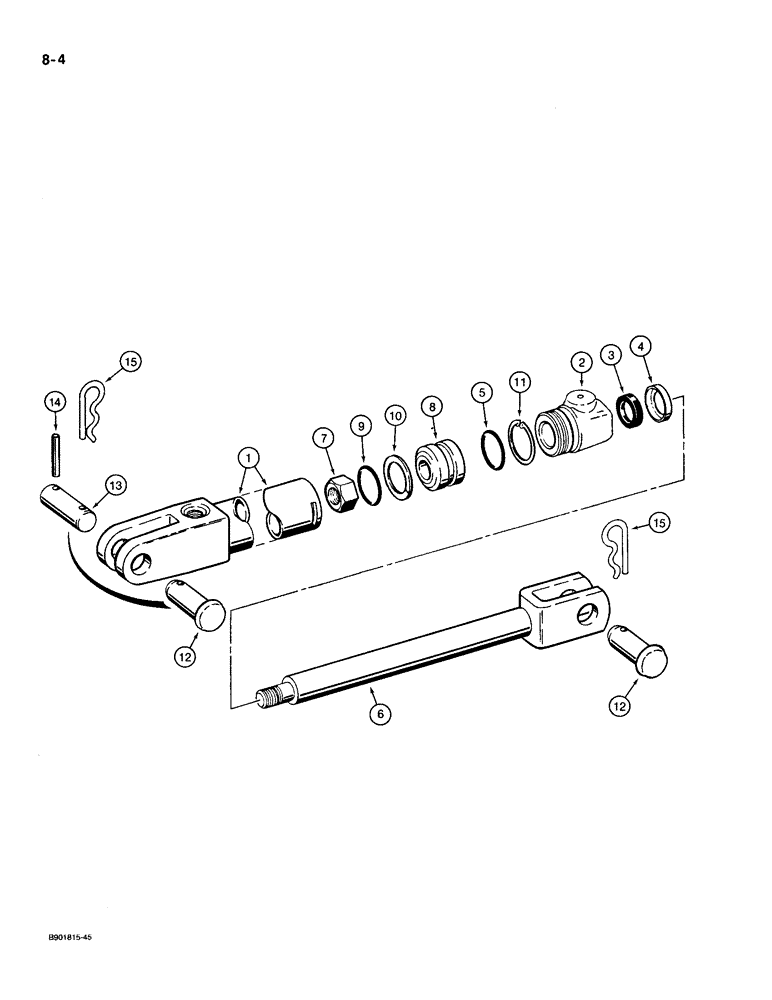

Запчасти Case IH 1100 (8-04) - RAM TYPE CYLINDER, 381832R93, WELDED SINGLE ACTING, 1100 MOWER (08) - HYDRAULICS

381832R93

CYLINDER BLOCK

CYLINDER ASSEMBLY - 2 ID x 8 inch stroke, single acting

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

381802R11

GLAND ASSEMBLY - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal kit P/N 386685R91

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - retaining, piston wiper rod

1шт.

Part of seal kit P/N 386685R91

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 1-3/4 ID x 2 inch OD, gland

1шт.

Part of seal kit P/N 386685R91

1шт.

6

381842R91

ROD

- piston, no longer available, order 73763C1 shown below

1шт.

6

73763C1

ROD ASSY.

ROD - piston

1шт.

7

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, , Piston end 3/4"-16, GC

1шт.

8

381848R1

PISTON

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 ID x 2 inch OD, piston

1шт.

Part of seal kit P/N 386685R91

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal kit P/N 386685R91

1шт.

11

461180R1

RETAINER

RING - retaining, gland

1шт.

12

25419R1

PIN

- headed, 1 x 2-3/4 inch, (1) replaces items 13 and 14, on closed end of cylinder

1-2шт.

381852R11

PIN

ASSEMBLY - with grooved pivot, if used

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - groved

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

15

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

2шт.

386685R91

KIT

KIT - seal, Includes Refs. 3, 4, 5, 9 and 10

1шт.
